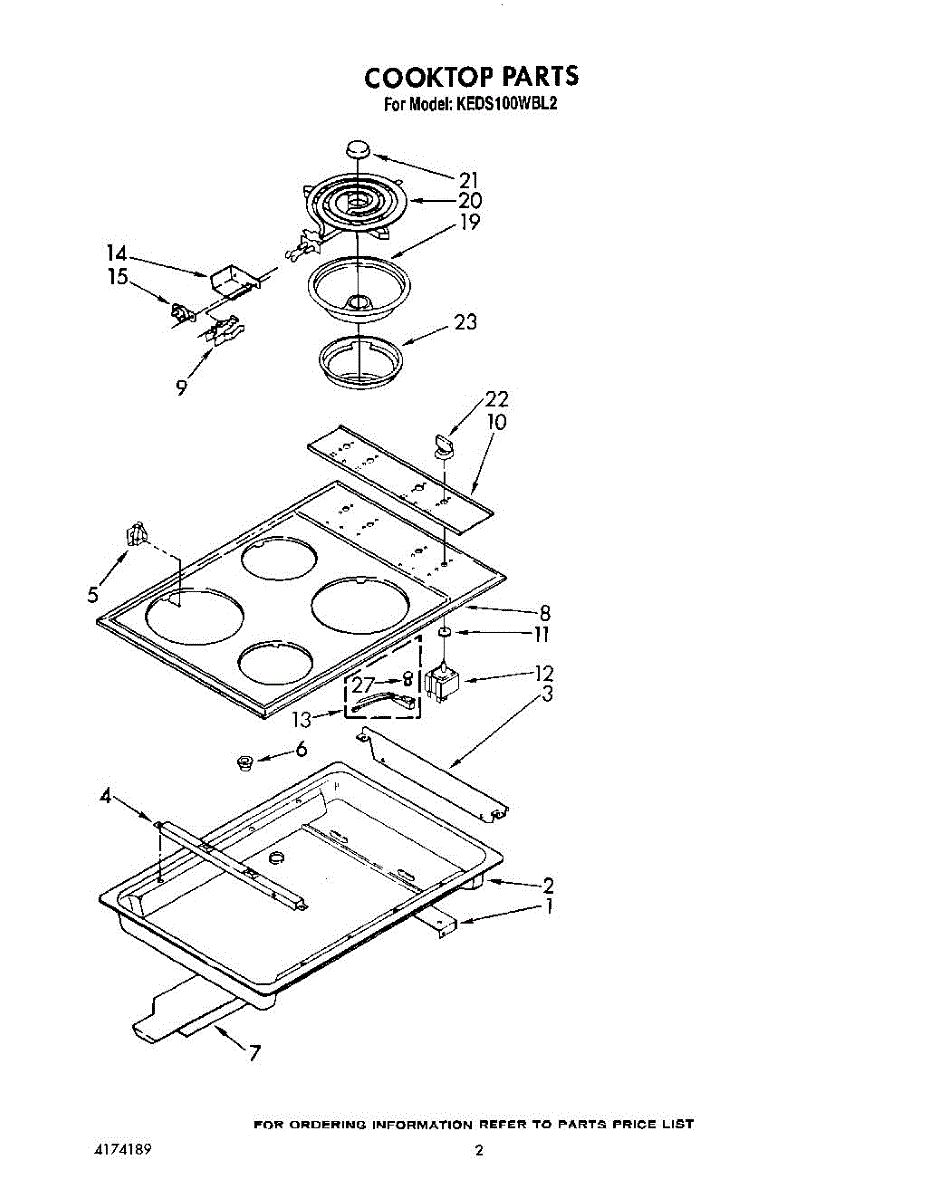

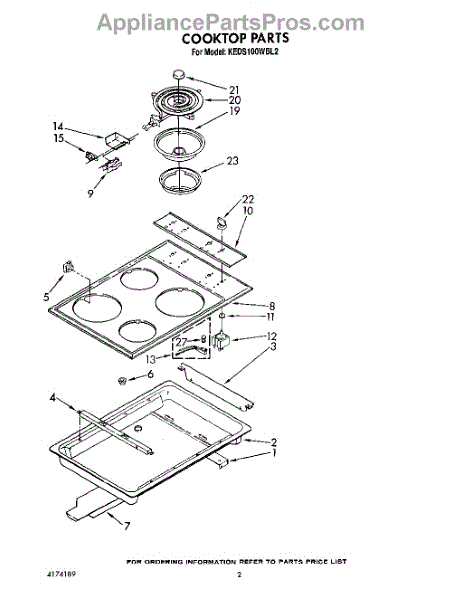

Parts for Kitchenaid KEDS100WBL2: 02 - Cooktop Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-32 x 1/2 inch.

Size: 6-32 x 9/32 inch.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Burner won't heat or cycles on and off? This infinite switch controls temperature levels on electric range surface elements. DIY repair in 10 minutes.

Drip pan kit installs below cooktop burners to catch spills and grease. Replace chipped, stained, or worn pans to restore a clean appearance. Kit includes pans.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

This part has been discontinued and is no longer available.

A decorative trim ring that restores the original finish and helps secure surrounding components on your appliance. Replaces cracked, faded or loose trim to improve appearance and maintain a proper fit. What it does

• Covers and finishes the edge of a control or opening to give a clean, factory look.
• Holds adjacent trim or components in place to prevent gaps and rubbing.
• Hides wear, scratches or discoloration for an improved appearance.
• Common symptom: visible cracks, chips, or a loose/misaligned trim piece.

What's included

• One trim ring.

Install notes

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the trim.
• Handle plastic trim carefully to avoid scratches; align tabs/clips before fastening.

8-inch finishing bezel that surrounds controls or burner openings on ranges. Replace when original ring is cracked, broken, or missing to restore clean edges.
