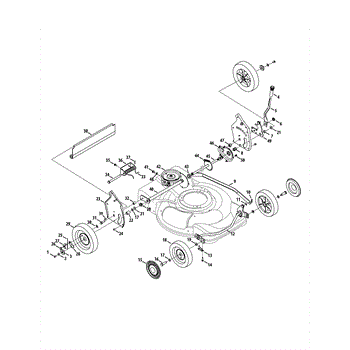

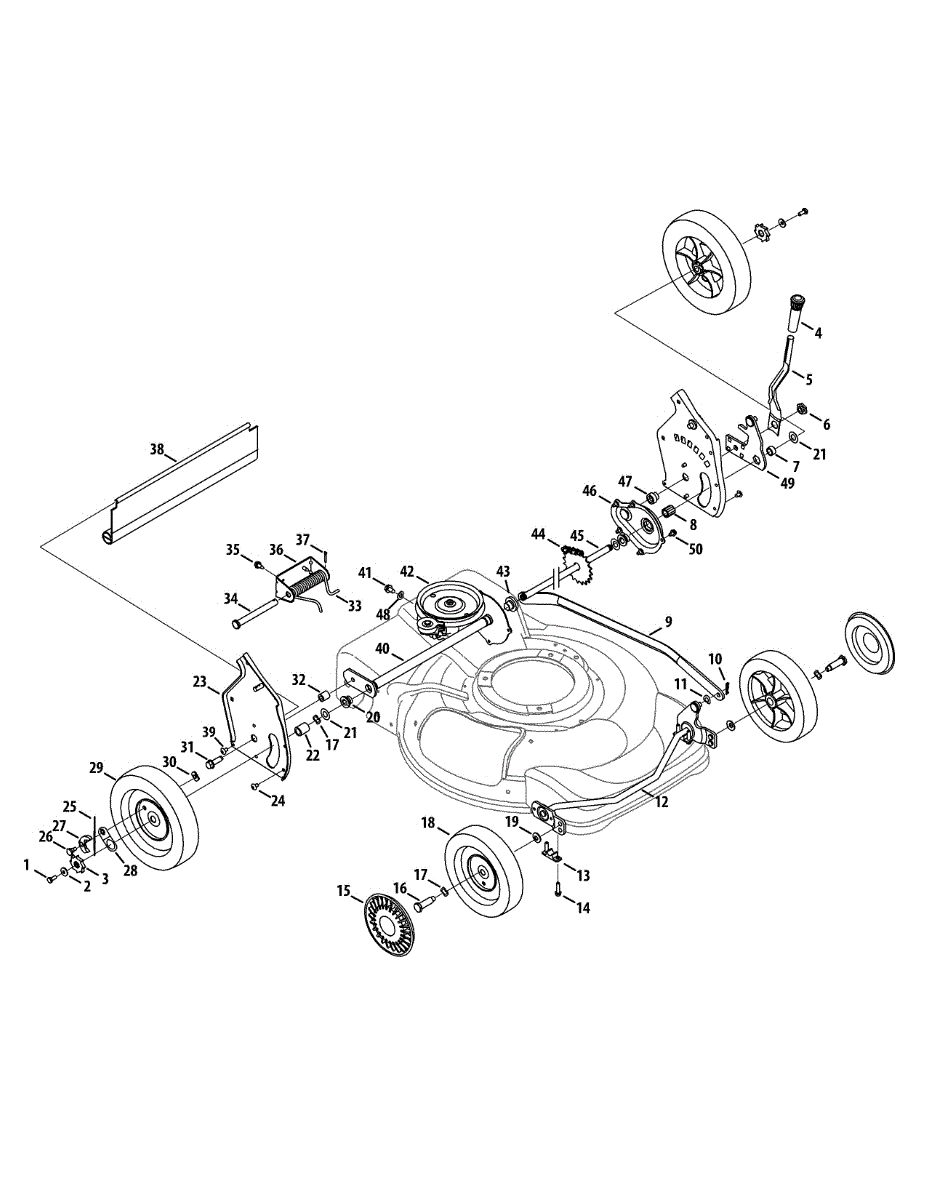

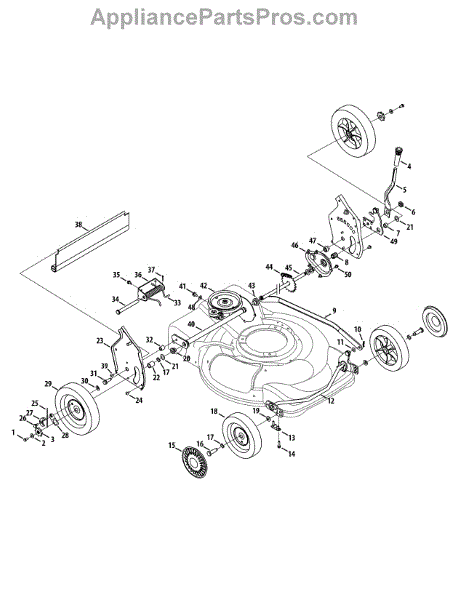

Parts for Craftsman 247.381091 / 2012: Deck Assembly Parts

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Ratchet wheel for lawn mowers. Installs in the drive mechanism to enable continuous motion in one direction. Replace if cracked, worn, or damaged.

Replace worn, cracked, or missing handle grips on your lawn mower or snow blower. Restores comfortable control and cushioning to equipment handles.

Replacement lever spring for gas walk-behind and self-propelled mowers. Installs on control lever assembly. Replace if worn, stretched, or broken.

Shield nut for lawn mowers. Secures protective shields and guards in place. Replace if threads are stripped, nut is missing, or won't tighten properly.

Spacer component for lawn mowers and tillers. Reduces friction between parts while maintaining proper spacing. Replace if worn, damaged, or missing.

Lawn mower sleeve bearing allows flexible motion between components and reduces vibration. Replace if worn or damaged to restore smooth operation.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Bowed washer for lawn mowers and tractors. Installs in fastening mechanisms to reduce friction. Replace if worn, damaged, or missing from assembly.

Fix lawn mower vibration or loose components with this block bushing. Facilitates smooth rotational movement and secures internal machinery. Easy DIY fix.

Hex washer head screw for lawn mowers and snow blowers. Replace worn, stripped, or missing fasteners on deck, housing, or engine components.

Grey plastic wheel hubcap for lawn mowers, snow throwers, and outdoor power equipment. Replaces cracked, broken, or missing hubcaps to protect wheel hubs.

Shield mounting screw for lawn mowers and tillers. Secures protective shields and covers to the mower deck. Replace if screw is stripped, missing, or damaged.

Wave washer helps secure fasteners and improve operation on lawn mowers and walk-behind equipment. Direct fit replacement part for push and self-propelled models.

Replacement wheel for walk-behind mowers. Installs on axle to enable smooth rolling and maneuverability. Order a new wheel if yours is cracked, broken, or worn.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Flange bearing enables smooth operation and prevents overheating in lawn mowers. Replace if equipment runs rough or bearings show wear. Verify fit.

Flat washer for lawn mowers and outdoor power equipment. Installs between fasteners to distribute load and prevent damage. Replace if missing or worn.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

This is a pawl that can serve as a replacement for some mower models, as well as chippers and shredders. The pawl attaches to the ratchet pawl plate. The pawl is essential for starting the engine. When the starter turns, the pawl is forced outward and locks onto the flywheel, allowing the engine to start. When the starter rope is let go, the springs pull back the ratchet pawls. If there is damage to the pawl, the engine will not start.The piece is made from durable metal, and it is built to last. However, it can start to wear down over time. Additionally, there is the potential that it could corrode. If there are issues with the pawl, replace them as soon as possible to ensure their machine continues to operate properly.This pawl can work with select models from MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Husky. The piece is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

Replacement pawl plate for lawn mowers. Secures the pawl mechanism in the starter assembly. Order a new plate if yours is cracked, broken, or missing.

This wheel is a replacement part that can work for several types of lawn and garden equipment. The rear wheels enable users to maneuver their machines easily. If there is damage to one or more of the wheels, it will be difficult, and in some cases impossible, to use the machine properly and safely.Wheels on lawn and garden machines are constantly exposed to the elements. Despite their durability, they can start to wear down over time. Additionally, there is the chance that the wheel could break if it hits rocks, ice, or other debris. If a wheel is damaged, it should be replaced as soon as possible. The replacement process is simple. It is a good idea to replace both rear wheels at the same time.This wheel is a genuine OEM replacement part and is sold individually. Those who need to replace both wheels will need to buy two. The wheels will work with certain models of snowblower and lawnmowers from Yard Machines, Cub Cadet, MTD, and Craftsman.

Replacement fastener for lawn mowers and tractors. Secures components and panels in place. Order a new fastener if yours is stripped, missing, or damaged.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

Clevis pin fastener for lawn mowers and chipper shredders. Secures internal components. Replace if bent, broken, or missing to restore proper assembly.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Fastener pin that secures nuts and bolts in lawn mower engines and assemblies. Replace if bent, missing, or damaged during maintenance or repair work.

Trail shield for walk-behind gas and self-propelled mowers. Replace this protective guard if cracked, broken, or missing to restore coverage.

Replacement truss head tap screw for lawn equipment engines. Secures various engine components. Replace if missing, stripped, or damaged during maintenance.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

Fix a mower that won't move forward or has a locked-up transmission. This replacement transmission rotates the axle to propel your mower smoothly.

Drive chain connects the axle sprocket to propel your mower's wheels. Replace if chain is stretched, rusted, or mower loses drive power. Verify fit.

Wheels won't turn or wobble on your mower? This right rear axle assembly connects the wheel to your mower frame. Replaces worn or damaged axles.

Replace your lawn mower's chain cover if it's cracked, broken, or missing. This protective cover shields the drive chain assembly on self-propelled mowers.

The replacement flat washer here is a part commonly found on many types of small engines, including those in lawn and garden equipment. The washer can be used on various parts of the engine depending on the make and model. The washer can help to spread the pressure of the connection over a wider surface area. This will help reduce damage to the machine at the connection point. The washers are made from metal and there may be a need to replace them. If they have become corroded, bent, or lost, they should be replaced right away. Owners should keep in mind what with some models, the washers will be secured with the use of a push pin. The push pins are sold separately. This is an authentic OEM replacement flat washer that is sold individually. The washer can be used on many types of equipment including lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut.

Pivot arm for walk-behind lawn mowers that aids in steering and direction control. Replace if worn, damaged, or broken from heavy use or accidents.

Replacement screw for lawn mowers and outdoor power equipment. Secures components together for proper operation. Order if original is stripped or missing.
