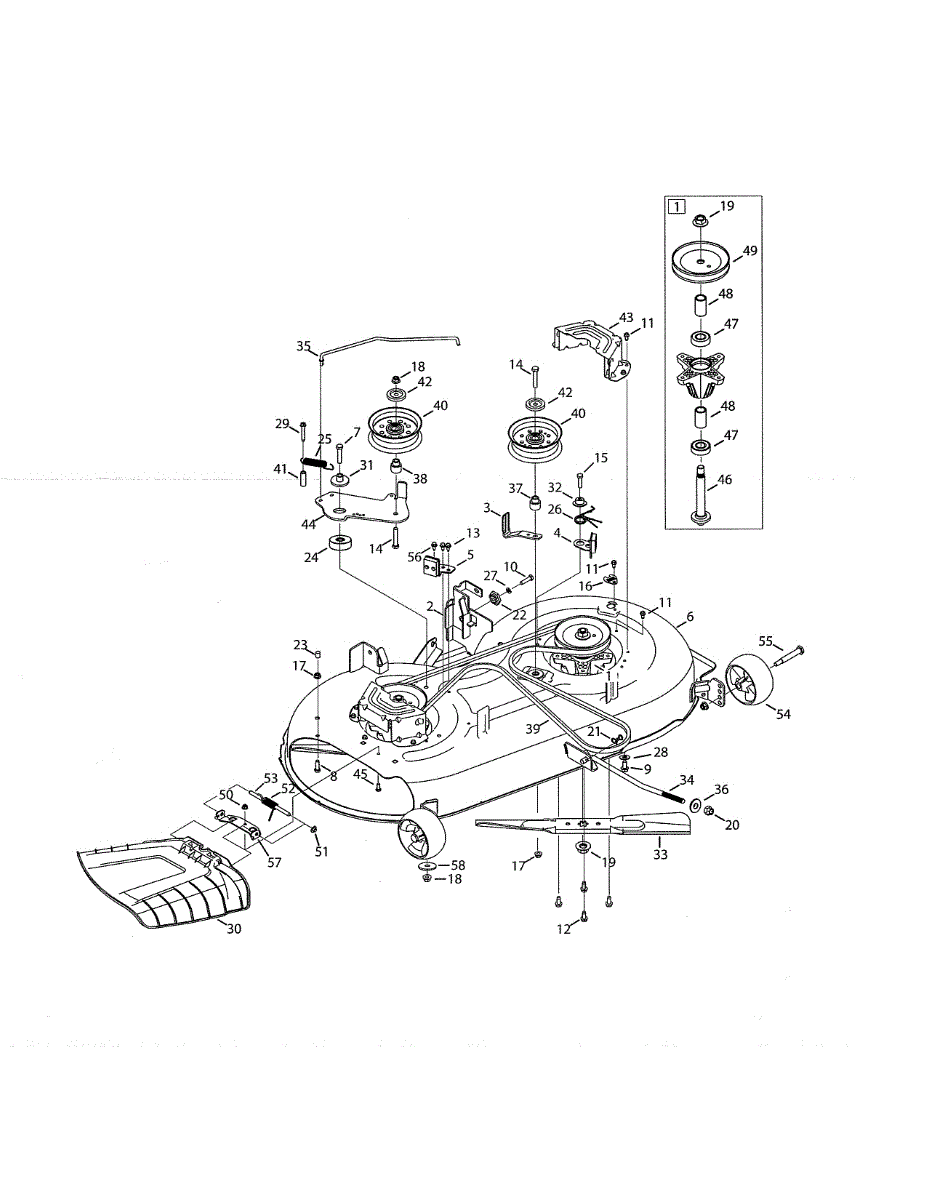

Parts for Craftsman 247203773: Deck / Spindle Assembly Parts

Seat wiring harness jumper for front-engine lawn tractors. Connects seat safety switch to electrical system. Replace if frayed, damaged, or corroded.

Fix uneven cutting or blade wobble with this lawn tractor spindle assembly. Includes mandrel, shaft, and pulley for smooth blade rotation and clean cuts.

Replace your lawn tractor's main wiring harness if you're experiencing electrical failures, non-starting engine, or intermittent power issues.

Stabilizes your mower deck belt and prevents slipping or excessive friction. Replace if damaged, bent, or missing to keep your belt aligned and running.

Fix mower blades that won't stop spinning after disengaging the clutch. This deck brake assembly halts blade rotation when the clutch lever is off.

This part is a right-hand brake assembly bracket that is used on lawn tractors. The brake assembly is the component that stops the blade from moving.A new right-hand brake assembly bracket may be needed if the existing bracket is cracked, broken, dented, bent, or damaged in any way. Use extreme caution when attempting to replace any components near the blade of a lawn tractor. Allow the lawn tractor to cool off completely prior to attempting any care or maintenance on any component. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This right-hand brake assembly bracket is a genuine MTD part. It is sold individually. This specific right-hand brake assembly bracket component is compatible with lawn tractors that are manufactured by Yard Machines, MTD, Craftsman, Columbia, Mastercut, Murray, Yard-Man, and Husky.

Hex screw for lawn mowers and garden equipment. Replaces cracked, stripped, or missing hex head bolts. Six-sided head fastens metal or wood components.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This replacement part is a screw. This is a genuine replacement part made by MTD. Screws are small but important to the overall workings of many appliances. Screws work with other small pieces such as nuts and washers to keep parts secure during use.A new screw might be needed if the current one is missing or damaged. This can be caused by normal wear and tear with years of use. Screws endure large amounts of friction over time and can become worn down. If this is the case, be sure the replace the part as it might not be as effective as normal. Refer to the user manual for specific directions on the replacement of this part. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

Hex bolt for lawn tractors and riding mowers. Secures structural components and attachments. Replace if stripped, rusted, or missing for proper assembly.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Replacement hex nut for riding mowers and lawn tractors. Secures components together throughout the equipment. Replace when stripped, missing, or damaged.

Split pin fastener for lawn tractors and outdoor power equipment. Secures axles, linkages, and moving parts. Replace when bent, missing, or corroded.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Spacer that attaches to the idler arm on lawn tractors, creating a smooth surface for proper movement. Replace if worn, cracked, or missing.

Extension spring manages component placement through tension on lawn tractors. Replace if stretched, broken, or losing tension. Verify fit with your model number.

This torsion spring is an authentic OEM replacement part sourced directly from the manufacturer. It is used to hold the idler pulley securely against the belt so that the belt can turn. Over time, the torsion spring may become worn and not function properly. If this happens, the belt will not turn, and the tractor will not run. The torsion spring should be replaced and the belt inspected for damage. Before replacing the torsion spring, make sure the tractor engine is cool. Remove the keys from the tractor and disconnect the battery terminals to prevent the engine from being started. Locate the idler pulley and loosen the screws holding it in place. This will loosen the belt so that it can be removed to access the torsion spring. Once the spring is located, remove it and install the new one. Reinstall the belt and tighten the idler pulley. Reassemble the tractor and reconnect the battery. Test the tractor to make sure the torsion spring is installed correctly. This torsion spring is a gold-colored metal part that is sold individually. This spring is designed to be tractors manufactured by MTD and Craftsman.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn mowers and outdoor power equipment. Replaces damaged, missing, or worn washers. Standard hardware component for various models.

Replace the hex screw in your lawn tractor or riding mower. Used to secure various components throughout the machine. Order a new screw if damaged or lost.

Replacement grass chute assembly for lawn tractors and riding mowers. Directs clippings to the side or bag. Replace if cracked, broken, or detached.

This is a shoulder spacer replacement for use with lawn tractors. The shoulder spacer will attach to the deck brake assembly using a hex cap screw. This part can have different applications depending on the type of equipment for which it is being used.The metal spacer is durable, but it could still have some issues. Over time, it could become worn down or corroded and need to be replaced. It could also be lost when working on other parts of the machine and need to be replaced. The repair should be done with gloves so owners can protect their hands.The shoulder spacer is a replacement for select models of lawn tractors from Husky, Troy-Bilt, and MTD. This is a genuine OEM replacement part that has been sourced directly from the manufacturer. The spacer is sold individually.

Shoulder spacer for lawn tractors and riding mowers. Installs between moving parts to reduce friction. Replace if worn, cracked, or missing.

This is a two in one blade that can be used as a lift blade to bag clippings, as well as a side discharge for clippings. It is time to consider replacing this blade when there are uneven or even missed areas of cutting or bagging when using the mower. It may be that the blade has been dulled by prolonged use or bent or damaged by striking rocks and dense roots. Either way, replacing the blade is a relatively easy repair to make and should be considered a part of routine maintenance. The repair requires the use of the proper tools, including wrenches and sockets. An appropriate flange bolt may need to be purchased as well if the original has been damaged or worn. "This OEM replacement cutting blade works with more than 150 types of tractors and mowers made by Craftsman, Yard Machines, Yard-Man, MTD, and Troy Bilt. This ships singly and is a high-quality blade made of durable materials.

Front deck lift rod for lawn tractors and riding mowers. Connects mower deck to lift mechanism. Replace if bent, damaged, or corroded for proper operation.

If your lawn tractor brake pedal feels loose or brakes won't engage, you may need a new brake rod. This control linkage connects the pedal to the system.

Fix a deck that won't lift or adjust properly. This pivot cup lets the lift arm move freely while staying secured to your mower deck. Easy DIY fix.

This replacement part is a pulley spacer intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Pulley spacers allow the pulley to rotate while providing a gap so that friction does not build up inside the machine and create extra heat.A new pulley spacer might be needed if the current one is damaged or broken in any way. It is common for this part to be replaced after years of normal wear and tear. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

Shoulder spacer for lawn tractors and riding mowers. Installs between engine components to maintain proper alignment. Replace if cracked or missing.

A V-belt is used on riding lawn mowers and yard tractors to turn the blades and the accessories of these power tools. The engine pulley, which supplies power, is connected to the cutting deck pulley, which turns the mower blades, with a V-belt. Over time the V-belt, which is made of rubber, may stretch, calling for the tension on the belt to be adjusted. Eventually the belt will wear to the point that it no longer turns the cutting deck pulley fast enough for the blades to cut grass. Sometimes the belt will crack with dry rot and break. In any of these instances, the solution is to replace the V-belt. In order to replace the V-belt, the cutting deck must be lowered completely. A worn belt will likely slip off the cutting pulley with little resistance. In case the belt is missing, the user will find a diagram with the proper V-belt routing on top of the cutting deck. When replacing the V-belt, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be an exact replacement for the original. This V-belt is compatible with riding mowers from MTD, Murray, Huskee, Troy-Bilt, Yard Machines, and Yard Man.

This part is a replacement idler pulley. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective or broken idler pulley in a variety of lawn tractor models. Idler pulleys help to guide the engine's drive belt. This part is subject to significant wear and tear over time and may require replacement. Signs that the idler pulley might need replacing include a squealing sound coming from the belt or the pulley being visibly worn. Proper tools are required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this idler pulley, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this idler pulley is suitable for use on several different models of lawn tractors manufactured by MTD, Troy-Bilt, Yard Machines, Cub Cadet, Husky, and Yard Man. This is a genuine part made of high-quality, durable materials and is sold individually.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Secures and protects the idler pulley on lawn tractors and riding mowers. Replace if cracked, loose, or missing to maintain proper belt tension.

Deck belt cover protects your lawn tractor's drive belt from debris and weather. Replace if cracked, missing, or damaged to prevent belt wear. Verify fit.

If your lawn tractor's deck belt is misaligned or slipping off, the deck idler bracket may be damaged. This bracket maintains proper belt tension.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Fix wobbling mower blades with this spindle shaft. Common repair for uneven cuts and blade vibration. Moderate DIY with socket set and hammer.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Lost or broken push cap preventing setting adjustments? This small but essential control cap restores proper function on mowers and tractors. Quick fix.

Torsion spring for lawn tractors and riding mowers. Replaces broken, worn, or missing springs in deck lift or blade engagement systems.

Hinge pin that secures the discharge chute to your mower deck. Replace if pin is lost, broken, or bent. Essential hardware for proper chute operation.

5-inch diameter deck roller wheel for lawn tractors and riding mowers. Replaces cracked, worn, or missing deck wheels that support smooth cutting deck operation.

Shoulder bolt for riding mowers and lawn tractors. Used as an axle for wheels and deck components. Replace if bent, worn, or stripped from regular use.

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped, or misplaced screw in outdoor power equipment. Screws are critical for holding together parts of the equipment and can be used in many different areas. They are a standard piece of hardware that will need replaced if stripped, corroded, or otherwise defective. It's important when working on or near to any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this screw is suitable for use on several outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Please This is a genuine part made of high-quality, durable metal and is sold individually.

Deflector chute mounting bracket for lawn tractors and riding mowers. Replace this bracket if cracked, bent, or broken to properly secure the discharge chute.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.
