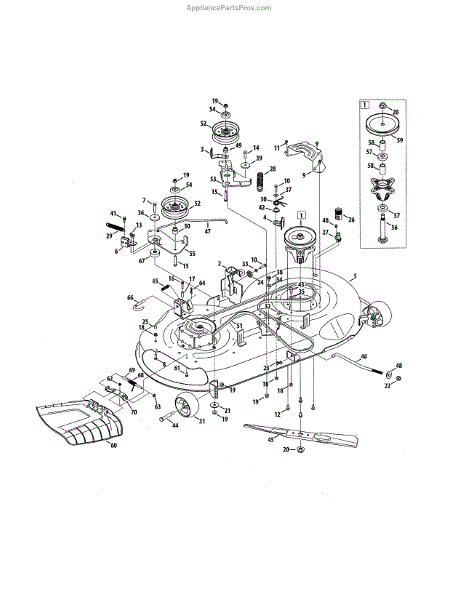

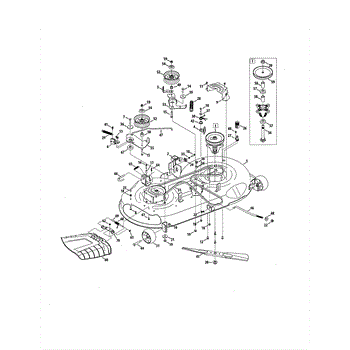

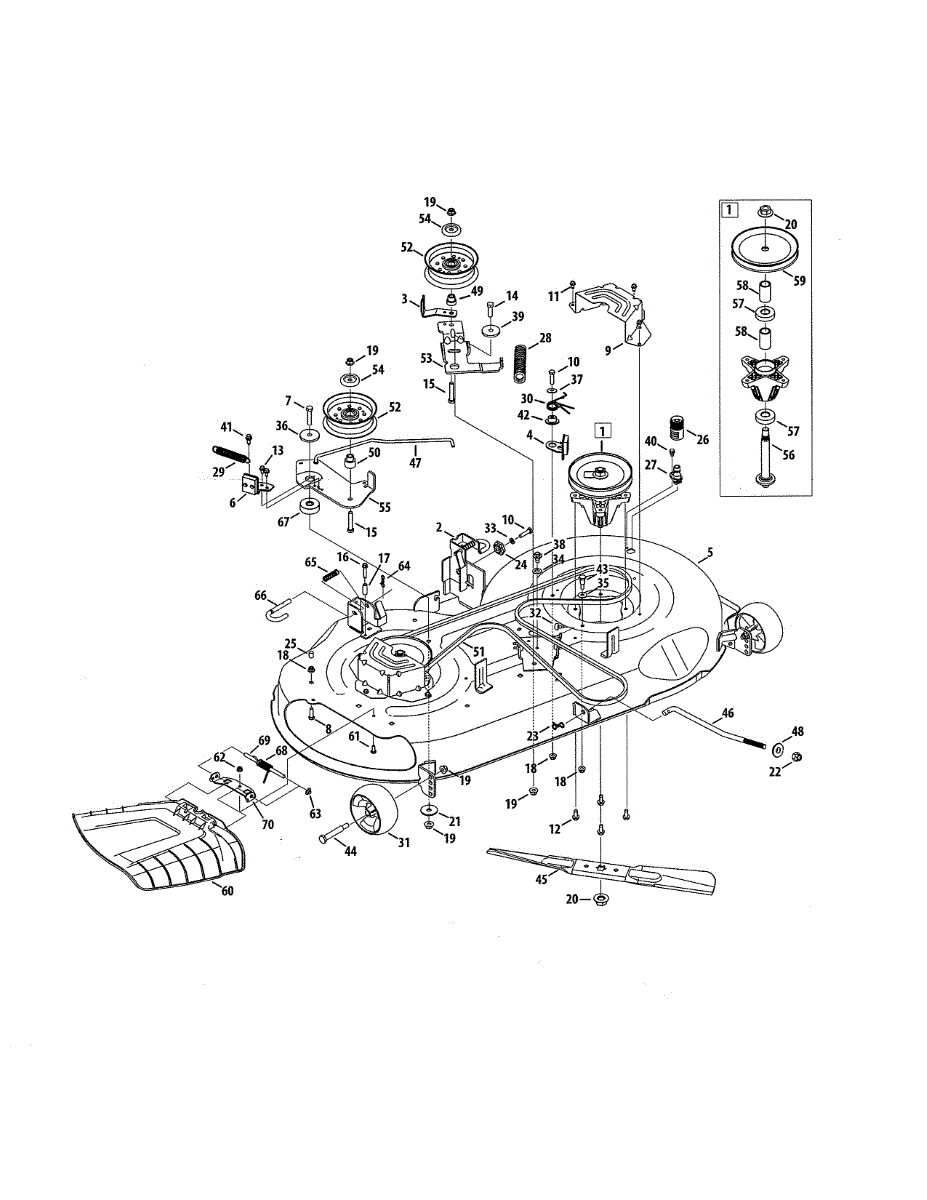

Parts for Craftsman 247203791: Deck / Spindle Assembly Parts

Seat wiring harness jumper for front-engine lawn tractors. Connects seat safety switch to electrical system. Replace if frayed, damaged, or corroded.

This replacement part is a spindle assembly intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Spindle assemblies create the spinning motion that many lawn mowers use. The spindle turns the blades of the lawn mowers to create the motion needed to cut grass effectively.A new spindle assembly might be needed if the current one is not working properly or is damaged or broken in any way. The user will be able to tell when the spindle is not working because the blades will not turn. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

Mounting bracket assembly for lawn tractors and riding mowers. Connects and secures components in place. Replace if cracked, bent, or broken.

Stabilizes your mower deck belt and prevents slipping or excessive friction. Replace if damaged, bent, or missing to keep your belt aligned and running.

Fix mower blades that won't stop spinning after disengaging the clutch. This deck brake assembly halts blade rotation when the clutch lever is off.

Replace your lawn tractor's cracked or damaged 46-inch mower deck shell. This structural housing protects internal components and mounts to the tractor frame.

This part is a right-hand brake assembly bracket that is used on lawn tractors. The brake assembly is the component that stops the blade from moving.A new right-hand brake assembly bracket may be needed if the existing bracket is cracked, broken, dented, bent, or damaged in any way. Use extreme caution when attempting to replace any components near the blade of a lawn tractor. Allow the lawn tractor to cool off completely prior to attempting any care or maintenance on any component. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This right-hand brake assembly bracket is a genuine MTD part. It is sold individually. This specific right-hand brake assembly bracket component is compatible with lawn tractors that are manufactured by Yard Machines, MTD, Craftsman, Columbia, Mastercut, Murray, Yard-Man, and Husky.

Hex screw for lawn mowers and garden equipment. Replaces cracked, stripped, or missing hex head bolts. Six-sided head fastens metal or wood components.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

Deck belt cover shields moving parts and ensures safe operation of your lawn tractor. Replace if cracked, damaged, or missing to prevent debris exposure.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This replacement part is a screw. This is a genuine replacement part made by MTD. Screws are small but important to the overall workings of many appliances. Screws work with other small pieces such as nuts and washers to keep parts secure during use.A new screw might be needed if the current one is missing or damaged. This can be caused by normal wear and tear with years of use. Screws endure large amounts of friction over time and can become worn down. If this is the case, be sure the replace the part as it might not be as effective as normal. Refer to the user manual for specific directions on the replacement of this part. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

Hex bolt for lawn tractors and riding mowers. Secures structural components and attachments. Replace if stripped, rusted, or missing for proper assembly.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.

Replacement hex nut for riding mowers and lawn tractors. Secures components together throughout the equipment. Replace when stripped, missing, or damaged.

Split pin fastener for lawn tractors and outdoor power equipment. Secures axles, linkages, and moving parts. Replace when bent, missing, or corroded.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Nozzle adapter for lawn tractors and riding mowers. Connects hoses or tubes in the fuel or deck wash system. Replace if cracked, stripped, or missing.

This replacement part is an extension spring. This is a genuine replacement part made by MTD. This part is an important part of many types of appliances. Extension springs ensure that torque and other forces allow the engine to run smoothly.A new extension spring might be needed if the current one is missing or damaged. This type of spring can easily become brittle under pressure and snap after many uses. This is normal and a frequent occurrence due to normal wear and tear over time. Be sure to replace this spring as soon as possible if this happens. Ensure the engine is turned off and completely cool before beginning any repairs.This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

Extension spring manages component placement through tension on lawn tractors. Replace if stretched, broken, or losing tension. Verify fit with your model number.

This torsion spring is an authentic OEM replacement part sourced directly from the manufacturer. It is used to hold the idler pulley securely against the belt so that the belt can turn. Over time, the torsion spring may become worn and not function properly. If this happens, the belt will not turn, and the tractor will not run. The torsion spring should be replaced and the belt inspected for damage. Before replacing the torsion spring, make sure the tractor engine is cool. Remove the keys from the tractor and disconnect the battery terminals to prevent the engine from being started. Locate the idler pulley and loosen the screws holding it in place. This will loosen the belt so that it can be removed to access the torsion spring. Once the spring is located, remove it and install the new one. Reinstall the belt and tighten the idler pulley. Reassemble the tractor and reconnect the battery. Test the tractor to make sure the torsion spring is installed correctly. This torsion spring is a gold-colored metal part that is sold individually. This spring is designed to be tractors manufactured by MTD and Craftsman.

5-inch diameter deck roller wheel for lawn tractors and riding mowers. Replaces cracked, worn, or missing deck wheels that support smooth cutting deck operation.

Rubber hood bumper installs between hood and dash panel on lawn tractors. Replace if original is cracked, missing, or worn to prevent metal-to-metal contact.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn tractors and outdoor power equipment. Increases screw bearing surface area. Replace if worn, damaged, or missing during repairs.

This is a shoulder spacer replacement for use with lawn tractors. The shoulder spacer will attach to the deck brake assembly using a hex cap screw. This part can have different applications depending on the type of equipment for which it is being used.The metal spacer is durable, but it could still have some issues. Over time, it could become worn down or corroded and need to be replaced. It could also be lost when working on other parts of the machine and need to be replaced. The repair should be done with gloves so owners can protect their hands.The shoulder spacer is a replacement for select models of lawn tractors from Husky, Troy-Bilt, and MTD. This is a genuine OEM replacement part that has been sourced directly from the manufacturer. The spacer is sold individually.

This is a shoulder screw commonly used as a replacement for use with lawn tractors and mowers. This screw is used to secure the grille's pivot bracket on the machine. If the screw is damaged, it could be difficult to use the grille on the tractor. Replace the screw if they notice any problems.The shoulder screw is made from metal and it is durable. However, it could have some damage that would require a replacement. The threads might become stripped, or the screw could even start to corrode. The edges of the screw could also start to wear away. The screw is small, and it could be lost when working on the tractor, which is another reason a replacement may be needed.The shoulder screw will work for many tractor models from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. The screw is sold individually, so owners might want to have several of them available. This is a genuine OEM replacement part.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

Replace a missing, stripped, or damaged shoulder screw on your lawn mower or tractor. This fastener secures components and maintains proper alignment.

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped, or misplaced screw in outdoor power equipment. Screws are critical for holding together parts of the equipment and can be used in many different areas. They are a standard piece of hardware that will need replaced if stripped, corroded, or otherwise defective. It's important when working on or near to any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this screw is suitable for use on several outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Please This is a genuine part made of high-quality, durable metal and is sold individually.

Shoulder spacer for lawn tractors and riding mowers. Installs between moving parts to reduce friction. Replace if worn, cracked, or missing.

Shield mounting screw for lawn mowers and tractors. Secures protective shields and covers. Replace if stripped, missing, or damaged during maintenance.

Shoulder bolt for riding mowers and lawn tractors. Used as an axle for wheels and deck components. Replace if bent, worn, or stripped from regular use.

Replace worn blades causing uneven cuts or poor grass discharge. High lift blade creates suction for better clipping removal in deep or wet grass.

Front deck lift rod for lawn tractors and riding mowers. Connects mower deck to lift mechanism. Replace if bent, damaged, or corroded for proper operation.

If your lawn tractor brake pedal feels loose or brakes won't engage, you may need a new brake rod. This control linkage connects the pedal to the system.

Fix a deck that won't lift or adjust properly. This pivot cup lets the lift arm move freely while staying secured to your mower deck. Easy DIY fix.

This replacement part is a pulley spacer intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Pulley spacers allow the pulley to rotate while providing a gap so that friction does not build up inside the machine and create extra heat.A new pulley spacer might be needed if the current one is damaged or broken in any way. It is common for this part to be replaced after years of normal wear and tear. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

Shoulder spacer for lawn tractors and riding mowers. Installs between engine components to maintain proper alignment. Replace if cracked or missing.

This part is a replacement idler pulley. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective or broken idler pulley in a variety of lawn tractor models. Idler pulleys help to guide the engine's drive belt. This part is subject to significant wear and tear over time and may require replacement. Signs that the idler pulley might need replacing include a squealing sound coming from the belt or the pulley being visibly worn. Proper tools are required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this idler pulley, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this idler pulley is suitable for use on several different models of lawn tractors manufactured by MTD, Troy-Bilt, Yard Machines, Cub Cadet, Husky, and Yard Man. This is a genuine part made of high-quality, durable materials and is sold individually.

Mounts the idler pulley to your lawn tractor deck to maintain proper belt tension. Replace if bent, cracked, or pulley wobbles. Verify fit by model.

Secures and protects the idler pulley on lawn tractors and riding mowers. Replace if cracked, loose, or missing to maintain proper belt tension.

If your lawn tractor's deck belt is misaligned or slipping off, the deck idler bracket may be damaged. This bracket maintains proper belt tension.

Fix wobbling mower blades with this spindle shaft. Common repair for uneven cuts and blade vibration. Moderate DIY with socket set and hammer.

Replacement grass chute assembly for lawn tractors and riding mowers. Directs clippings to the side or bag. Replace if cracked, broken, or detached.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Lost or broken push cap preventing setting adjustments? This small but essential control cap restores proper function on mowers and tractors. Quick fix.

Secures pins and shafts on lawn tractors and riding mowers. Replace if bent, missing, or worn. Bow-tie design inserts through pre-drilled holes.

Compression spring for riding mowers and lawn tractors. Replace if spring is broken, stretched, or missing to restore proper component tension and fit.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Spacer that attaches to the idler arm on lawn tractors, creating a smooth surface for proper movement. Replace if worn, cracked, or missing.

Torsion spring for lawn tractors and riding mowers. Replaces broken, worn, or missing springs in deck lift or blade engagement systems.

Hinge pin that secures the discharge chute to your mower deck. Replace if pin is lost, broken, or bent. Essential hardware for proper chute operation.

Deflector chute mounting bracket for lawn tractors and riding mowers. Replace this bracket if cracked, bent, or broken to properly secure the discharge chute.

This replacement part is a bagger and is intended for use with lawn mowers. This part is compatible with various kinds of lawn mowers. The bagger is responsible for collecting the leaves and other debris during use so that the user can clean up more easily. A new bagger might be needed if the current part is no longer working properly or is damage. If the part cannot stay attached to the lawn mower, it might be best to replace it altogether. If the bag has visible tears or rips, consider replacing this part as well. This should be a fairly simple repair. This is a genuine replacement part made by MTD, sold individually.

Mulching kit for 46-inch lawn tractor decks. Converts mower to mulch grass clippings. Replace missing, damaged, or worn mulch blades and plugs.

23.25-inch mulching blade for lawn tractors and riding mowers. Replace your worn, bent, or damaged blade to restore proper cutting performance.
