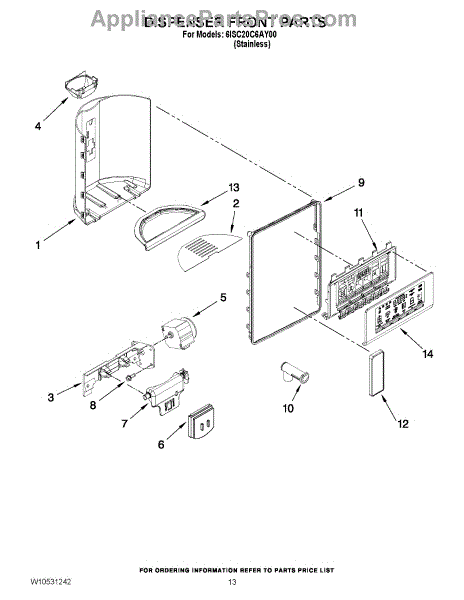

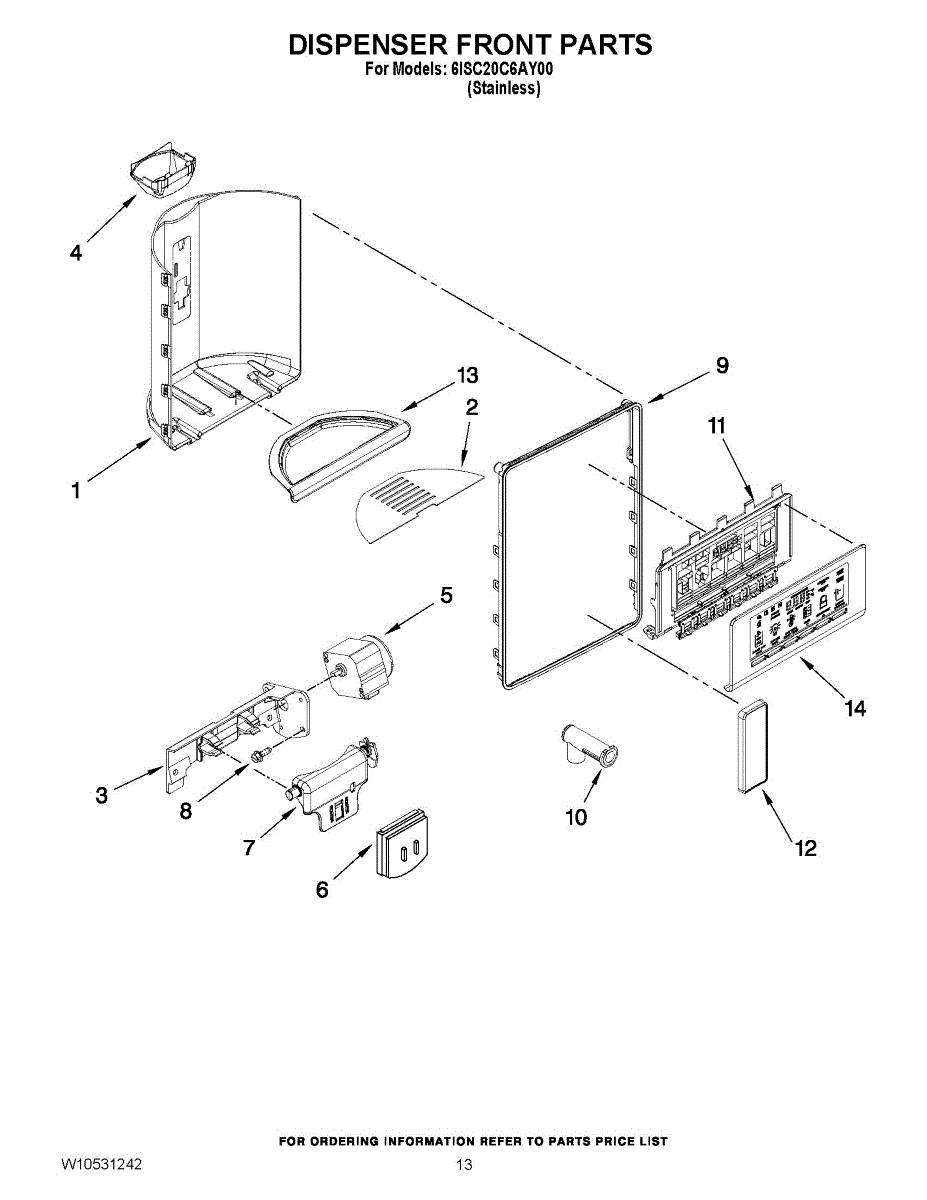

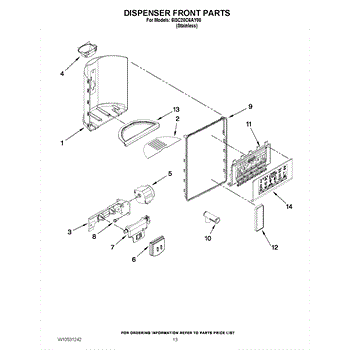

Parts for Whirlpool 6ISC20C6AY00: 08 - Dispenser Front Parts

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

Mounting bracket secures internal refrigerator components for stable alignment. Replace if cracked, bent, or broken to restore proper support and positioning.

Channels ice from maker to dispenser opening. Replace if cracked, broken, or missing to prevent ice scatter and jams. Installs in freezer door dispenser.

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This spigot directs water from the refrigerator's water/ice system to the dispenser or ice maker, restoring proper flow and containment. Replace a cracked or worn spigot to stop leaks and poor dispensing. What it does:

• Channels water from the internal water line to the dispenser or ice/ice-maker area
• Prevents leaks and directs flow into the dispenser or ice chute
• Can stop drips, spraying, or pooling caused by a damaged spigot
• Works as a simple replacement when the original is cracked, warped, or blocked

• One replacement spigot

• Disconnect power and shut off the refrigerator water supply before starting
• Remove access panels or bin(s) as needed to reach and remove the old spigot
• Inspect seals and gaskets; replace if damaged to ensure a watertight fit
• After installation, restore water and power, then check carefully for leaks

User interface control panel assembly for your refrigerator. Mounts on the front exterior to house control buttons and display. Replace if cracked or broken.

Color: Midnight Grey

Collects defrost water from the evaporator coil and channels it to the drain. Replace if your refrigerator's drip tray is cracked, broken, or missing.

This escutcheon is the trim piece that surrounds and protects a refrigerator control or dispenser panel, restoring a clean finished look and stabilizing the button/lever area. It helps keep the control area sealed from spills and debris. What it does

• Covers and protects the control or dispenser opening to prevent dirt and moisture from reaching internal components
• Keeps buttons, levers and switches properly aligned for reliable operation
• Restores the appliance's finished appearance after damage or wear
• Commonly replaced when cracked, broken, loose or missing and allowing exposed mounting points

• Basic trim replacement; remove power or lock controls per manufacturer instructions before starting
• Use appropriate hand tools to remove fasteners and lift the old escutcheon straight out to avoid damaging adjacent parts
• Confirm fit and alignment before reinstalling fasteners; do not force into place
