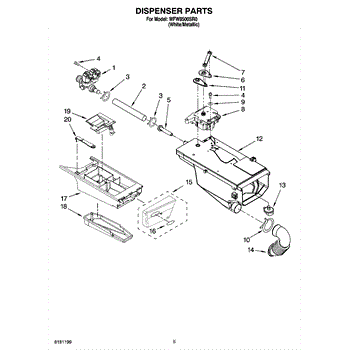

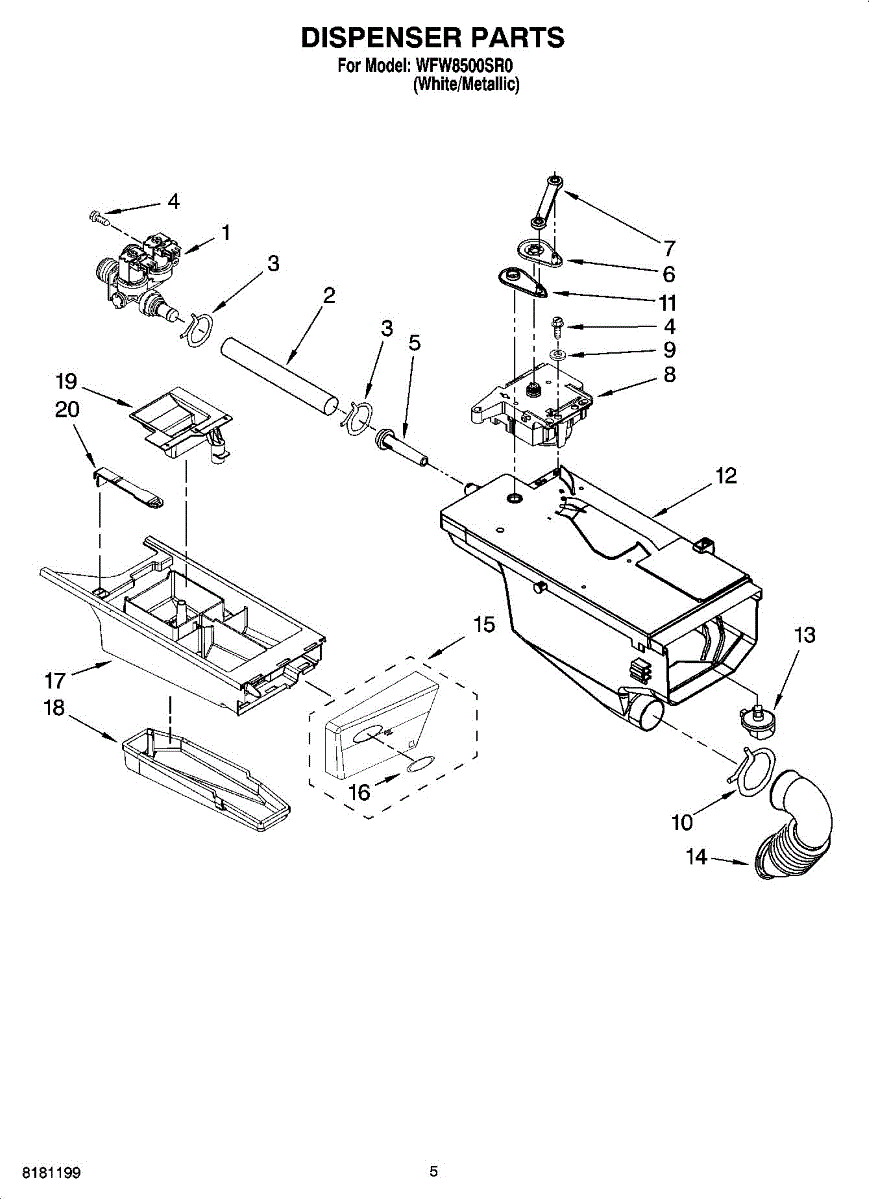

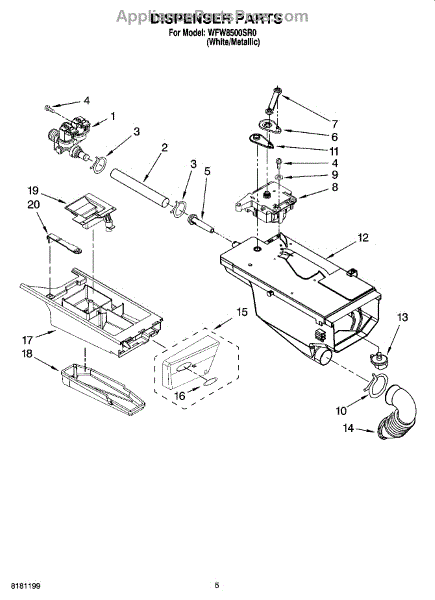

Parts for Whirlpool WFW8500SR0: 04 - Dispenser Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Washer won't fill or leaks when off? The water inlet valve controls water flow during fill cycles. DIY repair in under 30 minutes with video guide.

Drain hose routes wastewater from your laundry center to the household drain. Replace if cracked, kinked, or leaking to restore proper drainage.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it

This nozzle directs and focuses water flow inside the dishwasher so dishes get a thorough rinse. Replaces a worn, cracked, or clogged nozzle to restore spray coverage and help prevent poor cleaning performance. What it does

• Channels water from the spray arm or manifold to create a targeted spray pattern
• Helps maintain even water distribution across racks for better cleaning
• Clogs, cracks, or damage can cause weak spray or spotty wash results
• Compatible with systems that use a snap- or press-fit nozzle on the spray assembly

• Disconnect power and water supply before starting any repair
• Remove the spray arm or access panel as needed to reach the nozzle
• Inspect mating surfaces for debris; press or snap the new nozzle into place until seated

The dispenser actuator cam links the actuator to the dispenser mechanism, converting movement into a precise release. Replacing a worn or broken cam restores smooth, reliable dispensing and helps prevent incomplete or erratic operation. What it does:

• Transfers actuator motion to engage or release the dispenser mechanism
• Maintains correct alignment and travel for consistent operation
• A worn or broken cam can cause the dispenser not to open/close, feel loose or sticky, or make unusual clicking noises
• Common corrective part when the actuator moves but the dispenser doesn't function properly

• 1 dispenser actuator cam

• Disconnect power; turn off water supply if applicable before servicing
• Access the dispenser assembly per your model; note linkage/spring orientation (take photos) before removal
• Align the new cam carefully—do not force; verify smooth actuator travel by hand
• Reassemble and test operation before finalizing

Water distribution lever

Fix F30 error codes and non-dispensing detergent drawers. This dispenser motor assembly controls detergent release timing. 30-minute DIY repair with video.

Mounting washer for securing components in washers and appliances. Replace if worn, missing, or damaged to ensure proper fastening and stability.

Secures hoses to fittings in washers and other appliances to prevent leaks. Replace when clamps lose grip or show corrosion. Confirm fit with your model.

Connector lever

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Detergent not dispensing or poor cleaning results? This washer dispenser nozzle directs water flow for proper detergent distribution and cleaning.

Replacement dispenser hose channels detergent from the tray to the wash drum. Needed when original is cracked, torn, or leaking due to wear or rubbing.

Fix water leaking from your detergent drawer. This dispenser holds and releases detergent, softener, and bleach at the right time. Easy DIY repair.

Covers the detergent dispenser drawer opening on your washer. Replace this plastic cover if it's cracked, broken, or missing to restore a clean appearance.

Fix washer leaks from the dispenser area or improper bleach/softener dispensing. This siphon routes additives into the tub at the right time. Easy DIY fix.

This drawer hook is the retainer that keeps an appliance drawer securely seated while still allowing easy release for cleaning or service. Replacing a worn or broken hook restores smooth, reliable drawer operation.

• Secures the drawer in its housing so it stays closed during use
• Acts as the catch/release point for removing the drawer when needed
• Helps maintain proper alignment for smooth opening and closing
• Common symptoms: drawer won't stay closed, pops open or falls out, won't latch, or the hook is visibly cracked/missing

• Disconnect power before servicing
• Fully open and remove the drawer to access the hook area
• Align the new hook with the slots/tabs and snap or seat it into place
• Avoid forcing components; refer to the service manual for model-specific steps

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
