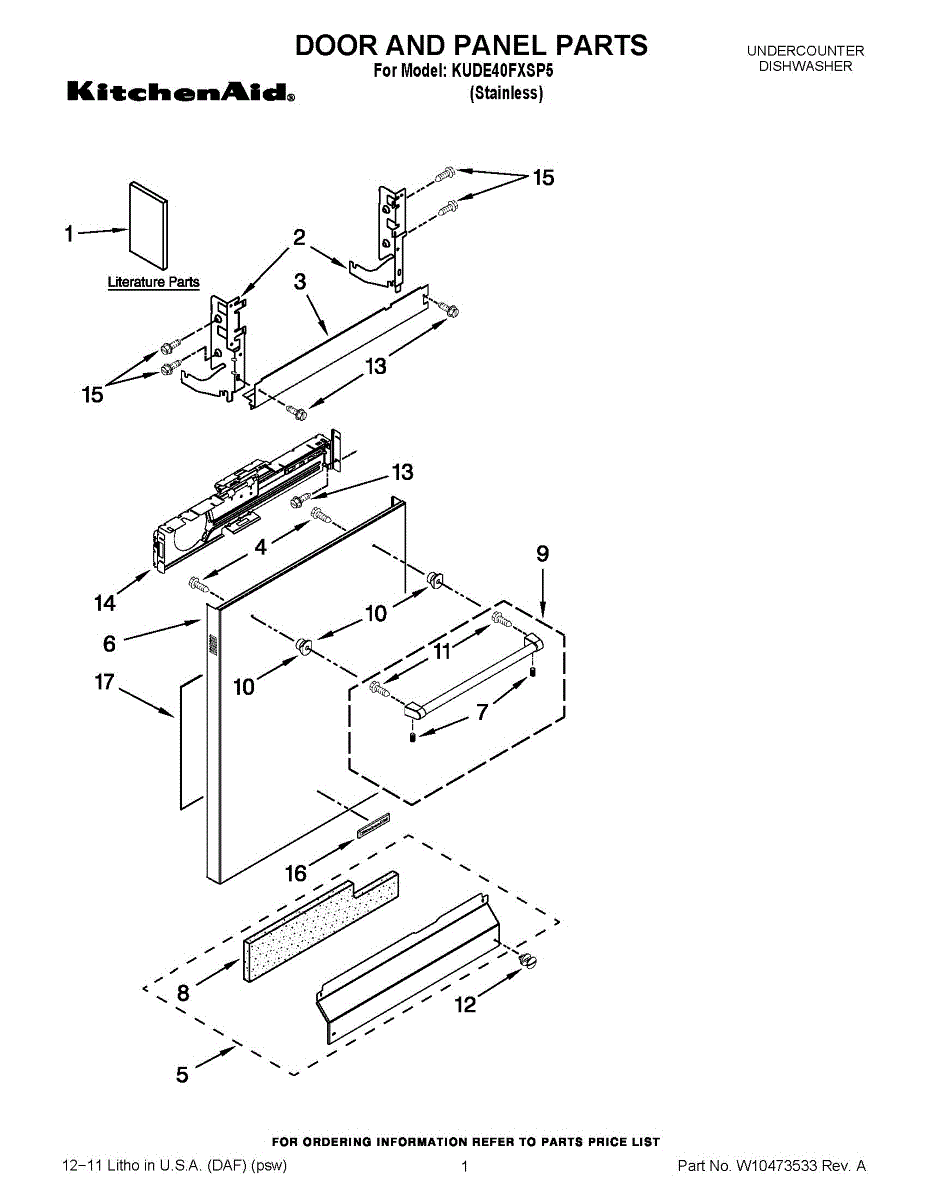

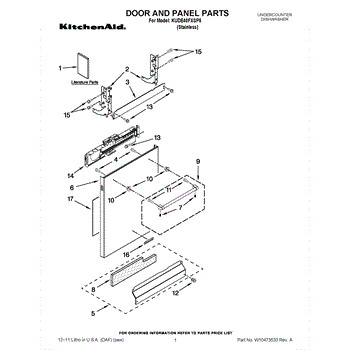

Parts for Kitchenaid KUDE40FXSP5: 01 - Door And Panel Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replace a cracked, bent, or worn right-hand door hinge on your dishwasher. Restores proper door alignment and smooth opening/closing operation.

Replacement hinge brace for dishwasher doors. Anchors the door hinge assembly to the tub. Install if original is cracked, warped, or missing.

Replacement dishwasher mounting screw secures panels, brackets, and internal components. Needed when original fasteners are missing, stripped, or damaged.

Black plastic access panel that covers the bottom front of your dishwasher. Replace if cracked, broken, scratched, or missing to restore appearance.

Restores dishwasher control panel appearance by replacing worn, cracked, or missing emblem. Provides clean, factory look and readable controls.

This screw fastener secures appliance panels and components to keep assemblies stable during normal use. A simple replacement for damaged or missing screws that restore proper fit and reduce rattling. What it does:

• Holds appliance panels, brackets, or trim in place to prevent movement
• Helps stop vibrations and rattling caused by loose hardware
• Replaces stripped or corroded screws that no longer tighten properly
• Restores a flush, secure fit where a matching screw is required

• One screw as shown

• Disconnect power and follow safety procedures before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the screw head
• Seat the screw straight and tighten until snug; do not overtighten to avoid damaging parts
• Keep removed hardware organized to ensure correct reassembly

Reduce noise and prevent heat loss with this dishwasher toe panel insulation. Replace when soiled, damaged, or missing. Adhesive-backed for easy install.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This stud is a small mounting fastener that provides a secure anchor point for attaching appliance components. Replacing a worn or missing stud restores a tight, aligned fit and helps prevent looseness, rattles, or shifting.

• Provides a fixed, threaded anchor for mounting a handle, bracket, or panel
• Helps keep parts aligned and secure during normal operation
• Common replacement for studs that are stripped, bent, broken, or missing
• Symptoms can include a loose or wobbly component, difficulty tightening, or visible damage/corrosion

• Disconnect power and, if applicable, shut off water or gas before servicing
• Wear cut-resistant gloves and handle panels carefully
• Hand-start threads to avoid cross-threading; tighten snugly without over-torquing
• Reinstall any covers or related hardware in their original positions

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10 - 16 x 1/2

Secures the control console to your dishwasher, keeping the panel stable and aligned. Replace if bracket is damaged, cracked, or missing.

10-32 thread machine screw secures panels, brackets, and internal components. Replace missing, stripped, or damaged fasteners to restore solid fit.

Foam pad that installs between dishwasher door panels to dampen sound and shield from heat. Replace if torn, compressed, or missing for quieter operation.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
