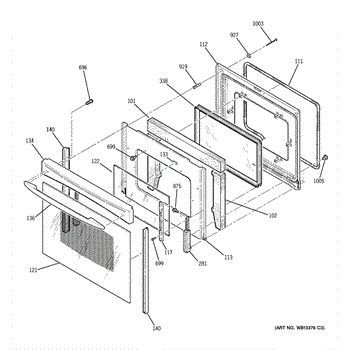

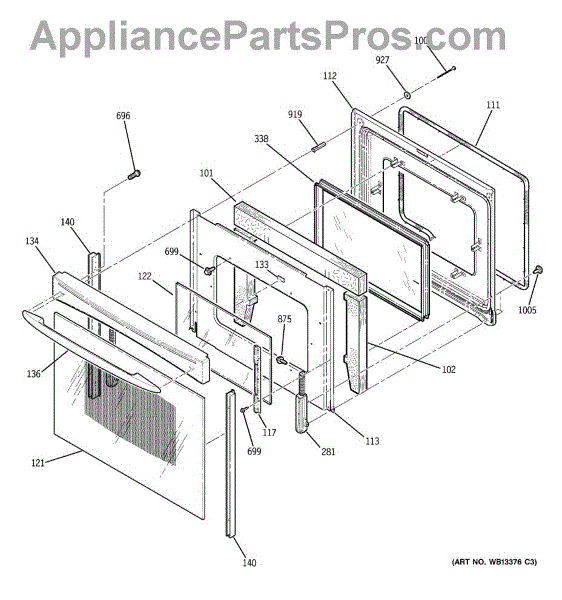

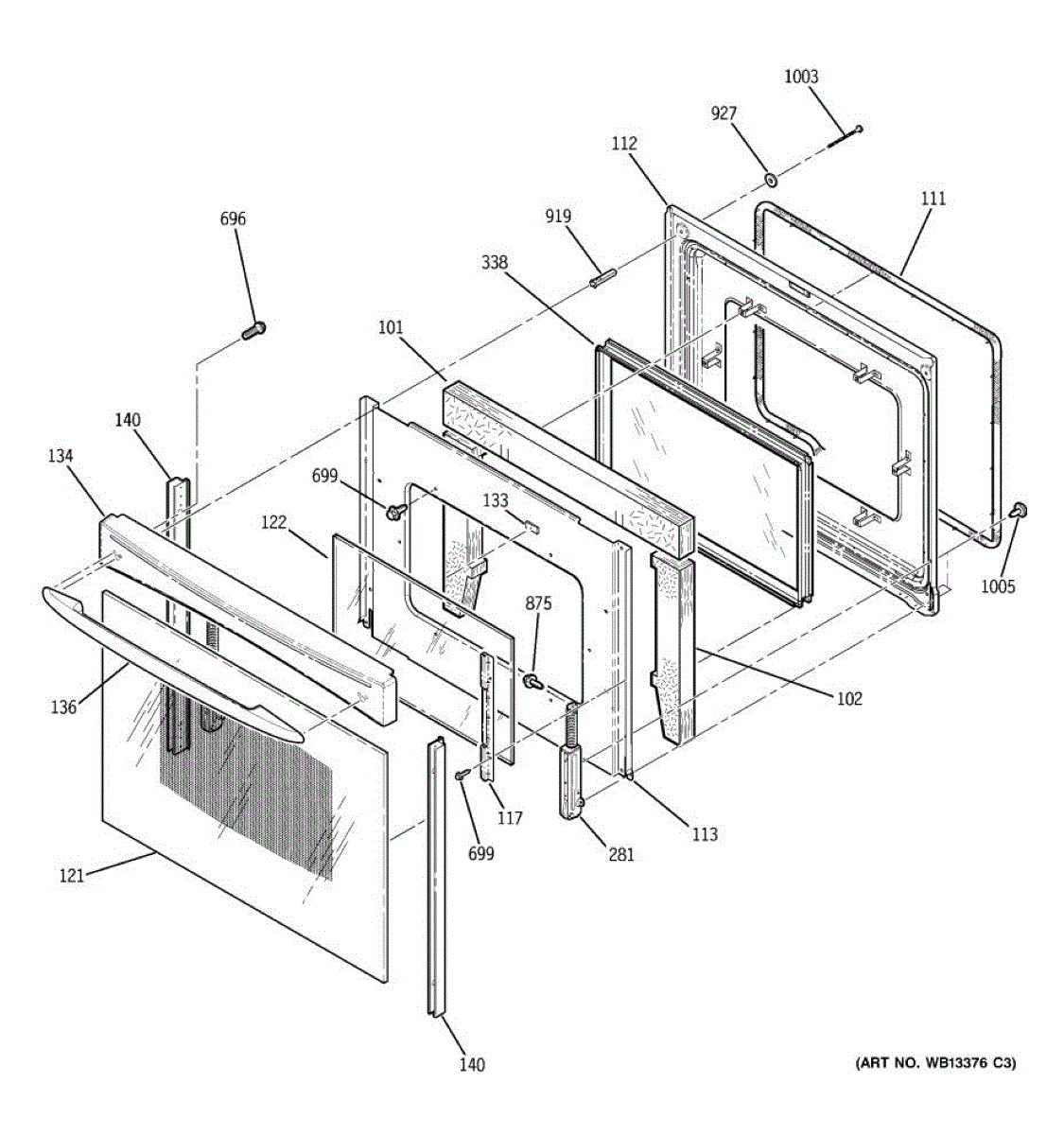

Parts for Ge JCB910TK4WW: 05 - Door Parts

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Insulation pad that lines the inside of your range oven door. Replace if torn, burnt, saturated, or missing to restore thermal barrier performance.

Prevents heat loss and ensures even cooking. Replace if damaged, torn, or worn to restore oven efficiency. Confirm fit with your model number.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Door retainer kit secures the oven door glass panels in place. Replace if retainers are cracked, broken, or missing to restore proper door assembly.

Replacement inner glass pane for oven doors. Installs inside door assembly to restore visibility and heat containment. Replaces cracked, broken, or fogged glass.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Seals and cushions your oven door to reduce vibration and rattling. Replace when worn to restore proper spacing and eliminate air leaks. Verify fit.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

White range door handle that mounts on the front of your oven door. Replace if your handle is cracked, broken, discolored, or missing for a complete look.

White outer door frame trim for range ovens. Replaces cracked, yellowed, or broken trim pieces. Installs on the exterior oven door assembly.

Secures and aligns your range oven door for smooth opening and closing. Replace this hinge if bent, damaged, or causing door sag and seal misalignment.

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

Hex washer-head screw secures panels, brackets, and internal assemblies. Replace missing, stripped, or rusted fasteners to restore tight fit.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
