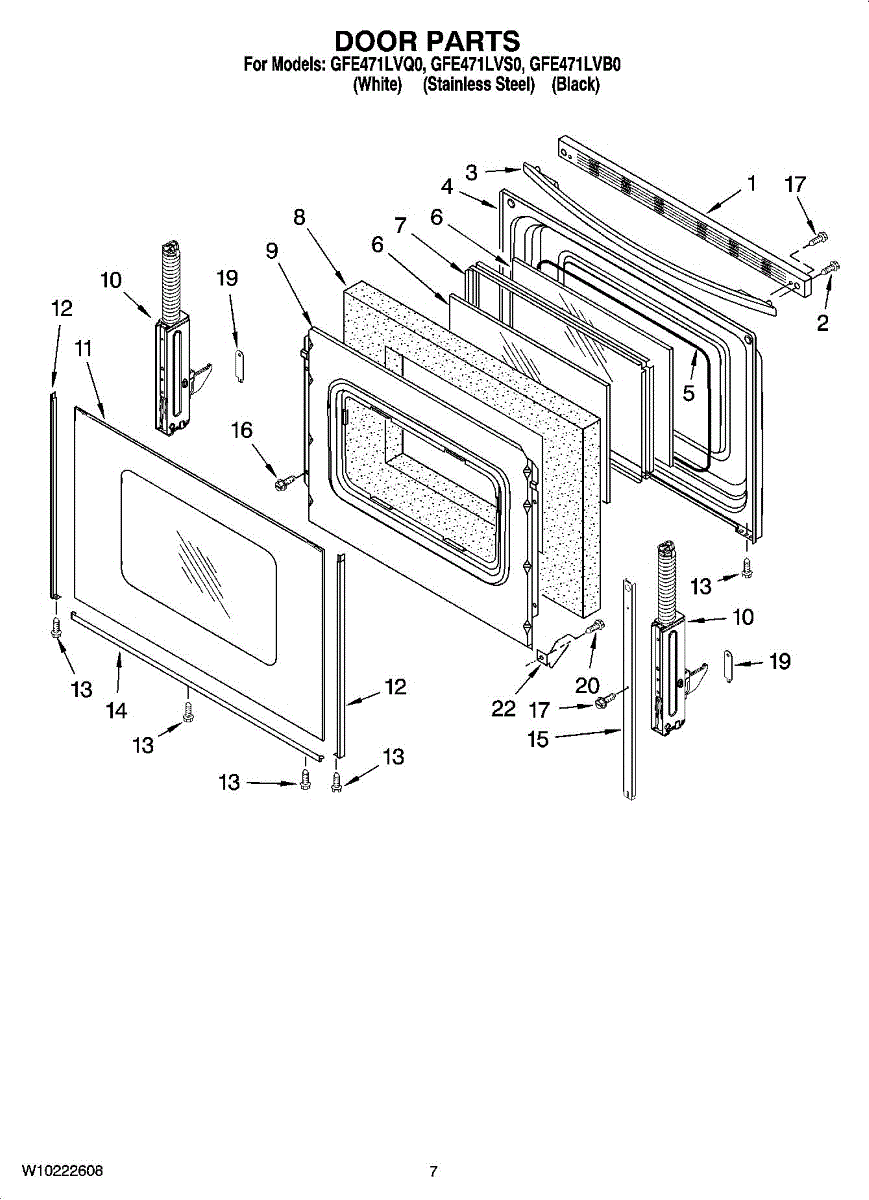

Parts for Whirlpool GFE471LVB0: 05 - Door Parts, Optional Parts

White vent trim panel that covers the ventilation opening on your range. Replace if cracked, chipped, broken, or missing to restore clean appearance.

The Vent Trim is an OEM part for Whirlpool ovens. It is designed to cover and protect the vent openings, which allow heat and steam to escape from the oven cavity. This trim piece not only contributes to the oven's overall aesthetic but also ensures proper ventilation, promoting even cooking and preventing overheating.

Common causes of a bad vent trim include exposure to high temperatures, physical damage from cleaning or impact, or discoloration due to prolonged use. Damaged vent trim can impair ventilation and affect the oven's performance.

Symptoms of a bad Oven Vent Trim include:

• Visible cracks or warping
• Discoloration or fading
• The vent trim not fitting securely or becoming loose
• Reduced ventilation leading to uneven cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory-spec screw secures panels and components in your appliance. Replacing a missing or stripped fastener restores a tight, rattle-free fit so parts stay aligned and operate as designed.

• Fastens brackets, panels, and internal components to their mounting points
• Maintains alignment and reduces vibration during operation
• Replaces missing, worn, rusted, or stripped hardware
• Helpful when you notice rattling, loose panels, gaps, or parts shifting out of position

• Disconnect power; shut off water or gas supply if applicable
• Align the part being secured and remove any damaged hardware
• Hand-start threads to avoid cross-threading; tighten with the correct driver
• Do not overtighten; verify the assembly is secure and operates freely

This stainless steel door handle mounts on the front of your range oven door. Replace if cracked, broken, loose, or discolored from daily use.

Black range door handle installs on the oven door. Replace if your original handle is cracked, broken, worn, or missing for a clean appearance.

Replace your range's cracked, broken, or missing oven door handle. Provides secure grip for opening and closing the door. Installs on front of oven.

Replaces the left inner door liner on your range. Install when the original liner is cracked, stained, or damaged to restore a clean door interior surface.

Seals the oven door window to prevent heat loss and maintain temperature. Replace if cracked, brittle, or heat escapes. Verify fit with your model number.

Clear glass panel that installs inside your range oven door. Replace if cracked, shattered, or broken. Provides interior visibility and insulation.

Metal frame that surrounds and secures the window glass in your range oven door. Replace if bent, corroded, or damaged to restore proper glass alignment.

Replace worn range oven door insulation to maintain heat efficiency and protect outer door surfaces. Up to 4 pieces may be needed. Verify fit with model.

Side trim retainer for range oven doors. Secures trim to door frame. Replace if broken during door glass cleaning or cracked from age and wear.

Supports and guides your range oven door for smooth opening and closing. Replace if your hinge is cracked, broken, or causing door misalignment issues.

Replacement outer glass panel assembly for range oven doors. Installs on the front exterior of the door. Needed when original glass is cracked or shattered.

Outer door glass panel for range ovens. Replaces cracked, shattered, or broken exterior oven door glass. Restores door appearance and visibility.

Replacement oven door glass window for gas ranges. Installs in the oven door frame. Replace if cracked, shattered, chipped, or broken. Watch video guide.

Trim kit frames your range oven door for a finished look. Replaces broken, cracked, or missing trim pieces damaged from regular use or heat exposure.

White right-hand side trim for range oven doors. Covers gaps and protects internal components. Replacement needed when cracked, broken, or missing.

Decorative trim piece for range oven door side edge. Replace if cracked, broken, or missing after disassembly. Left-hand white trim installs along door.

Broken or bent oven door trim during glass cleaning? This left side trim restores the finished look of your range door. Easy DIY fix with a screwdriver.

Replace cracked, broken, or missing oven door trim on your range. Covers the outer edge of the door for a clean finished look and protection from wear.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replaces the metal trim strip along the bottom edge of your range oven door. Order when original trim is rusted, corroded, broken, bent, or missing.

Secures range door panels and internal components to the cabinet frame. Replace if bracket is cracked, broken, or bent to restore proper door alignment.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Range clip secures wiring and components. Replace if broken, loose, or missing to prevent rattling and ensure proper part positioning. Verify fit with your model.

Size: 8-18 x 1/2 inch.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Main wire harness routes power and signals between your electric range's controls and components. Replace if damaged, frayed, or causing electrical issues.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

Ground wire screw secures grounding conductor to range chassis for electrical safety. Simple 5-minute repair with basic tools. Fits most models.

Color: White. Size: 13 oz. Spray paint primer. can.

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

White touch-up paint for covering minor scratches, chips, and blemishes on oven liners. Restores appearance of damaged oven interior surfaces.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Safety bracket that secures your range to the floor to prevent tipping. Replace if missing, broken, or during new installation. Essential for homes with children.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
