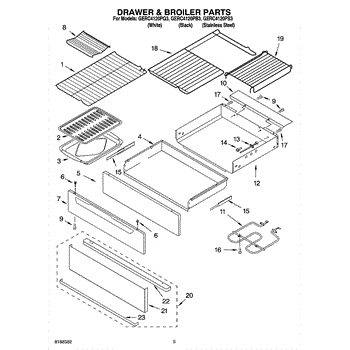

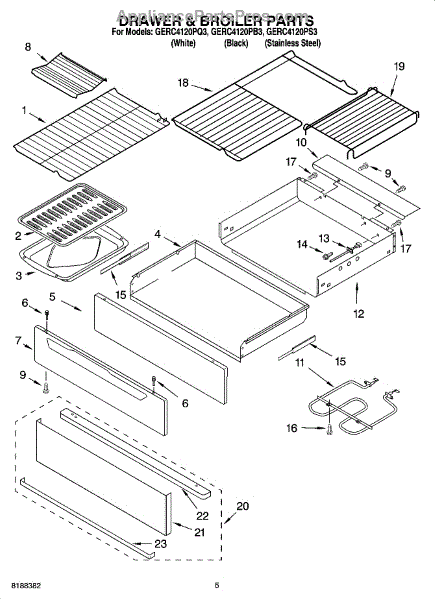

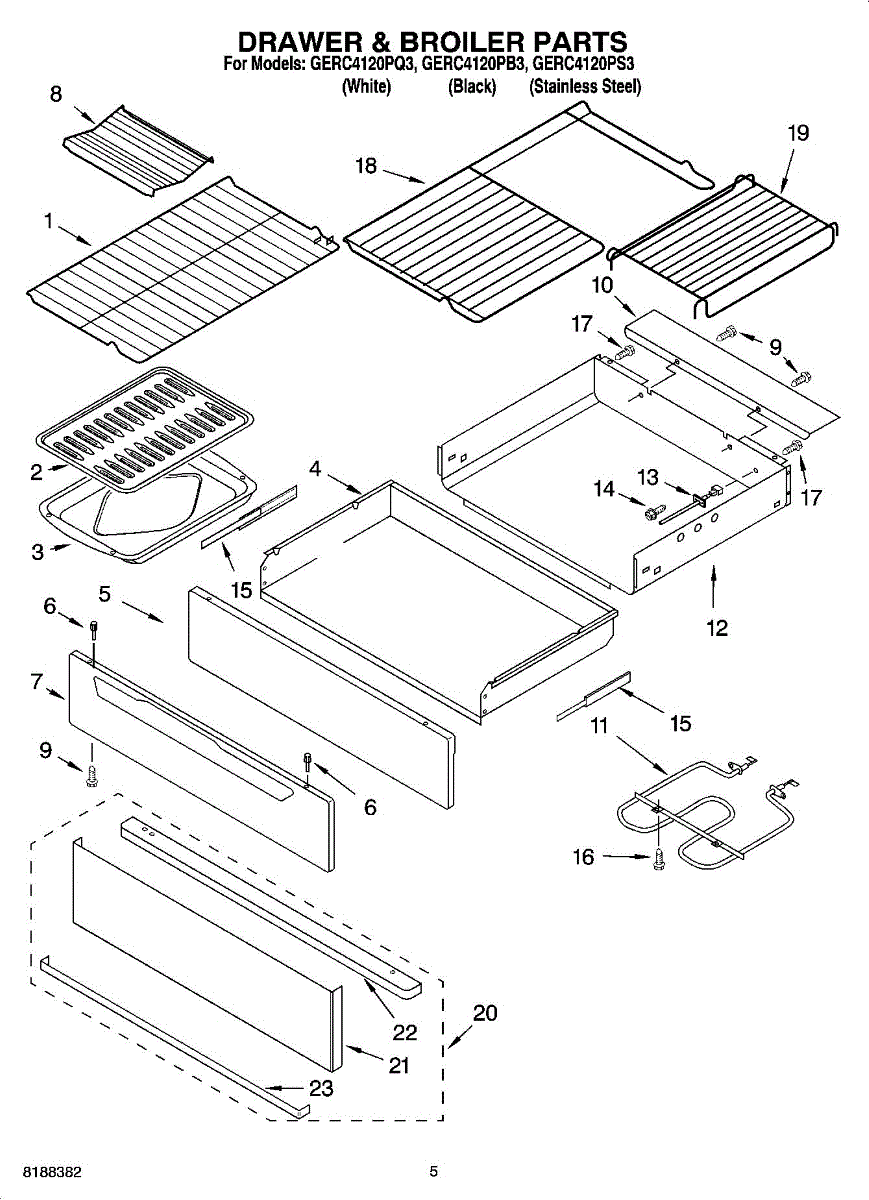

Parts for Whirlpool GERC4120PB3: 04 - Drawer & Broiler Parts

Replace your cracked, warped, or missing oven rack. This sturdy metal rack provides a reliable cooking surface inside your range oven cavity.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Black push rivet for ranges. Secures panels and components inside your range. Replace if cracked, broken, or missing. Two-piece design presses into hole.

White push rivet for electric and gas ranges. Secures panels and components in place. Replace if cracked, broken, or missing to restore appearance.

Replace your range's broken or dented drawer front panel. This black panel slides onto side brackets to restore your storage drawer's appearance.

White front panel for range storage drawer. Replaces cracked, broken, or discolored drawer fronts. Restores appearance of lower drawer assembly.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Fix F3E2 error codes or inaccurate warm drawer temperatures with this sensor replacement. Simple 15-minute DIY repair restores proper warming function.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Partial oven rack for ranges. Installs inside oven cavity to support cookware when a full rack isn't needed. Replace if bent, damaged, worn, or missing.

This replacement rack insert helps organize and protect dishes and utensils inside the dishwasher, restoring proper spacing and support for safe cleaning. It fits into the rack to prevent items from shifting or knocking during cycles. What it does

• Replaces a worn, broken, or missing rack insert to restore proper item support and spacing
• Holds dishes, glasses, or utensils in place to reduce chipping and clattering during wash cycles
• Keeps small items from tipping or falling through the rack grid
• Compatible with racks designed to accept this style of insert

• One rack insert

• Install by snapping or sliding the insert into the designated rack slots; no special tools generally required
• Inspect rack rails and surrounding clips for damage before installing
• Handle with care to avoid pinching; wear gloves if edges are sharp

Color: Stainless
