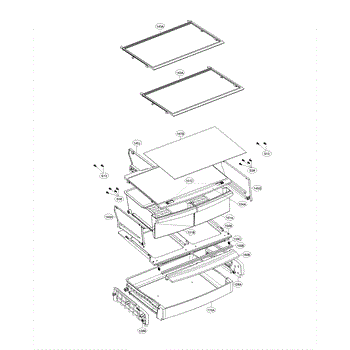

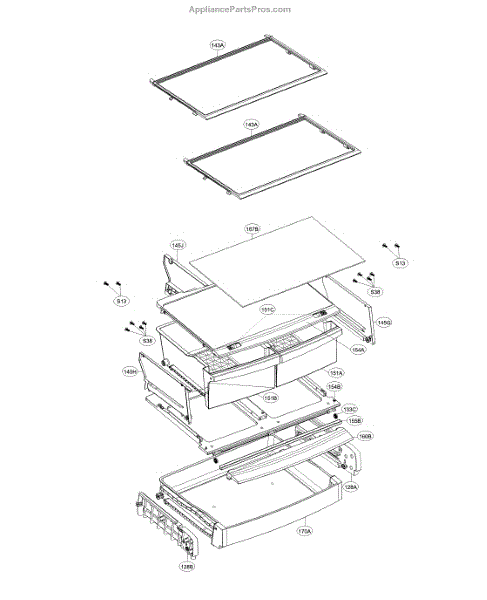

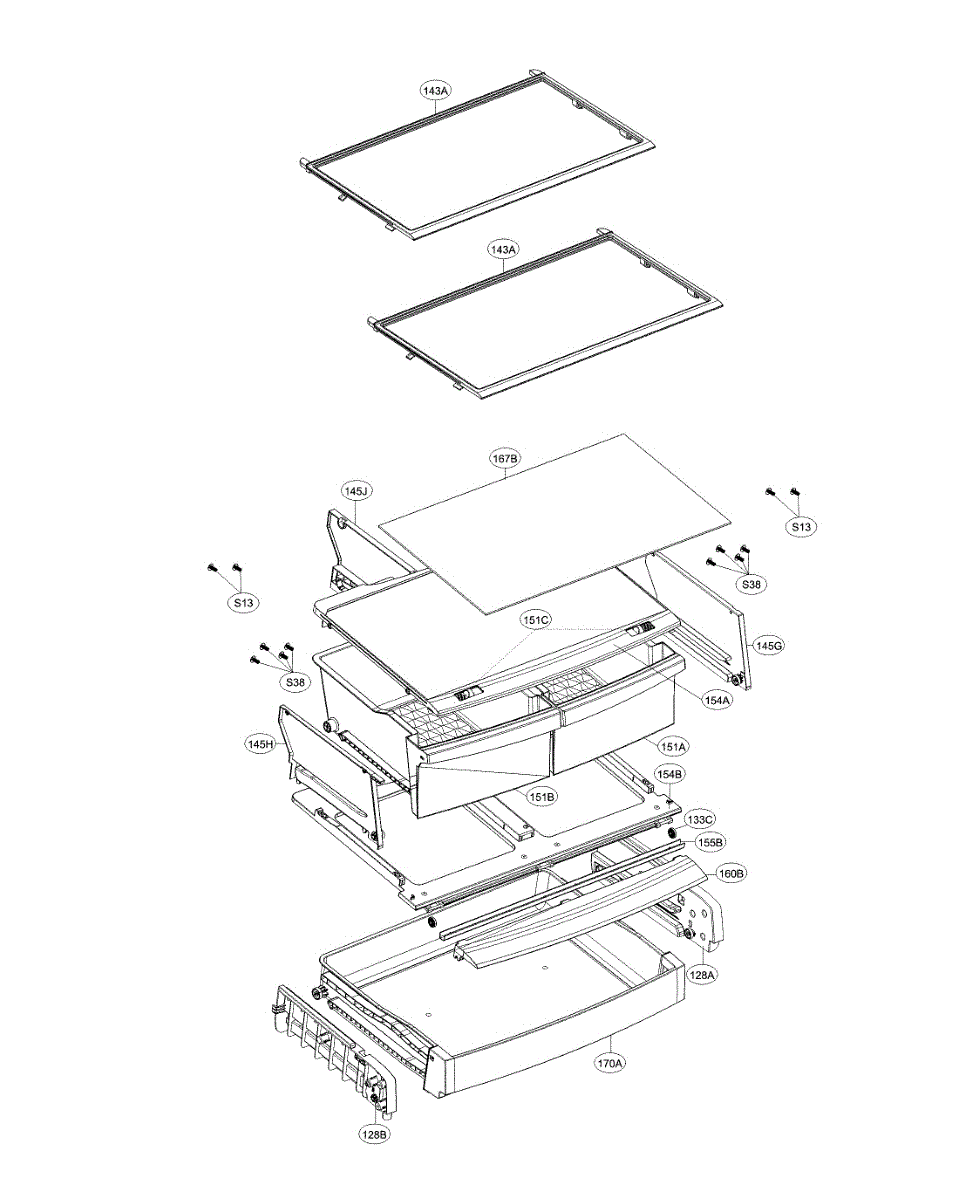

Parts for Lg LDCS24223S/02: Drawer Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Adjustable leveling leg assembly stabilizes your refrigerator and ensures proper door alignment. Replace worn legs to reduce vibration and noise. Confirm fit.

Plastic rail holder that secures shelf rails inside your refrigerator. Replace this component when cracked, broken, or missing to restore shelf stability.

Holder assembly for bottom-mount refrigerators. Replaces broken, cracked, or missing holder components. Secures internal parts in place.

Right-hand rail guide assembly for refrigerator drawers and shelves. Ensures smooth sliding and proper alignment. Replace if cracked, broken, or worn.

Left-hand drawer rail guide assembly for refrigerator bottom compartment. Replace when cracked, broken, or causing drawer misalignment or rough sliding.

Stores ice from your refrigerator's ice maker. Replace if cracked, warped, or damaged, causing ice jams, poor dispensing, or freezer mess.

Replace worn drawer rollers to restore smooth, quiet sliding in your refrigerator. Fixes binding, noise, and uneven travel. Confirm fit with your model.

Freezer drawer roller assembly for refrigerators. Installs on bottom drawer to enable smooth gliding. Replace if roller is cracked, broken, or worn.

Roller assembly for refrigerator freezer drawers. Replaces broken, cracked, or missing rollers that prevent smooth drawer gliding. Snaps into place.

Replaces a cracked, broken, or worn refrigerator drawer tray. Restores stable storage for produce and packaged items in your bottom-mount refrigerator.

Replacement drawer tray for refrigerator storage compartments. Restores a clean, sturdy base when original is cracked, broken, or missing. Keeps food organized.

Replace a cracked, chipped, or missing glass shelf in your bottom-mount refrigerator. Restores a sturdy storage surface for food and containers.

Replacement rail holder that secures sliding rails in your refrigerator. Installs on the frame to restore alignment. Needed when cracked or broken.

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

Drawer glide rail assembly supports and guides refrigerator drawers for smooth opening and closing. Replace if drawer sticks or misaligns. Confirm fit.

Drawer slide rail guide assembly for refrigerators. Installs to support and align drawers. Replace if cracked, bent, broken, or causing misalignment.

Replaces worn or damaged refrigerator drawer rail guide assembly. Restores smooth sliding when original guide is cracked, broken, or causing binding.

Replacement vegetable drawer pan for your refrigerator. Installs in the crisper compartment to hold produce and contain spills. Replace if cracked or broken.

Fix loose or stuck control knobs with this control panel shutter. Restores proper knob engagement and prevents debris buildup. Simple snap-in repair.

Clear plastic crisper drawer that holds and organizes produce in your refrigerator. Replace if cracked, chipped, broken, or missing to restore storage.

Protective cover that installs over storage tray or bin in your refrigerator. Replace if cracked, broken, or missing to restore support and containment.

Replace a cracked, broken, or missing drawer cover assembly on your refrigerator. Restores a clean appearance and protects internal components.

This supporter cover is a replacement rear support/trim piece that helps secure and protect the back of the television cabinet, restoring proper fit and finish. It's a direct-fit OEM-design part for models that list PN MJH62434203. What it does:

• Provides structural support to the TV rear cabinet and helps keep internal components properly positioned.
• Covers and protects rear openings from dust and incidental contact.
• Restores original appearance where a damaged or missing cover left gaps or exposed hardware.
• Helps prevent rattling or vibration caused by loose or broken rear trim.

• One supporter cover (PN MJH62434203) as shown.

• Follow manufacturer disassembly instructions for access; keep power disconnected and TV laid on a soft, flat surface to avoid screen damage.
• Use proper fasteners from the original unit; only install if the mounting points are intact.
• If internal components were shifted or damaged, inspect for additional repair needs before reassembly.

Cosmetic trim panel that covers the refrigerator's exterior frame. Replace yours if scratched, dented, cracked, or missing to restore a clean finish.

The Tray Cover Assembly is an OEM part for LG refrigerators. It is designed to cover compartments within the refrigerator, such as crisper drawers or specific storage trays. This assembly helps maintain optimal humidity levels and temperatures in covered sections, enhancing the preservation of fruits, vegetables, and other perishables.

Symptoms of a bad Tray Cover Assembly include:

• Cracks or breaks in the cover, which can compromise its structural integrity and aesthetic appearance,
• Difficulty fitting the cover properly in its designated space,
• Condensation issues or improper sealing that affects food preservation.

Causes of tray cover assembly damage often include mishandling, excessive weight placed on the cover, or degradation from frequent cleaning and exposure to food acids.

This OEM LG part is also compatible with Sears/Kenmore.

Replace a cracked, broken, or missing refrigerator glass shelf to restore safe storage space. Installs above crisper drawers for organized food storage.

Replacement tray assembly for the fresh food compartment. Provides a stable storage surface for bins and produce. Needed when original is cracked or broken.

Replace your worn refrigerator door gasket to restore an airtight seal, prevent cold air loss, and reduce frost buildup. Confirm fit with your model number.

Small stopper that fits inside the handle assembly to limit travel and keep the handle properly seated. Replace if worn, missing, or broken to restore secure feel.

Door foam insulation assembly that installs inside your refrigerator door panel. Replace if foam is compressed, damaged, or missing to restore seal.

Replacement drawer guide rail for refrigerators and freezers. Installs along the drawer track to restore smooth sliding when original is cracked or worn.

Replaces a cracked, broken, or missing door bin on your refrigerator. Mounts to the inner door liner to organize condiments, jars, and bottles securely.

Refrigerator door basket mounts inside the door to hold bottles, condiments, and small items. Replace if cracked, broken, or loose to restore secure storage.

Replacement door basket for refrigerator doors. Stores bottles, jars, and condiments. Replace when cracked, broken, or missing. Snaps securely into door.

Replacement door closing cam for refrigerator doors. Guides the door into correct position for smooth closing and tight seal. Order if cam is cracked or worn.

Replacement refrigerator door handle assembly. Installs on refrigerator door. Needed when original handle is cracked, broken, or damaged.

Slide rail for bottom-mount refrigerator freezer drawer. Replaces broken, binding, or worn rails that prevent drawer from opening or closing smoothly.

Slide rail for bottom-mount refrigerator freezer drawers. Replaces broken, cracked, or binding rails causing uneven drawer movement or closure issues.

Fixes intermittent cooling or component failures caused by loose or damaged wiring connections. This connector assembly restores secure electrical links.

Plastic cover that snaps over the freezer door hinge to conceal hardware and protect the hinge area. Replace if cracked, broken, or missing.

Conceals and protects the door hinge area on your refrigerator. Replace this cover if cracked, loose, or missing to restore a clean appearance.

This factory service kit groups the exact components specified for a model-specific repair. Installing the matched set together restores proper fit and operation while avoiding mismatched parts and repeat trips. What it does:

• Replaces the designated group of parts for the applicable subsystem on your appliance
• Helps resolve improper operation, unusual noise, or visible damage in that area
• Ensures consistent fit and performance with matched factory components
• Supports a single, efficient repair by refreshing related wear items at once

• 1 kit assembly

• Disconnect power; if applicable, turn off water and/or gas before servicing
• Follow your model's service manual and transfer parts one-for-one
• Use appropriate PPE and keep track of screws and small hardware
• Test the appliance fully after reassembly to ensure proper operation

Upper left door hinge for refrigerators. Secures and aligns the top of the door to the cabinet. Replace if hinge is bent, cracked, or damaged.

Upper right door hinge for bottom-mount refrigerators. Mounts at the top of the door. Replace if cracked, broken, or when reversing door swing.

Covers and protects the refrigerator door hinge assembly. Replace if cracked, broken, or missing to restore a finished appearance and keep debris out.

Plastic cap that covers and protects the refrigerator door hinge assembly. Replaces cracked, broken, or missing caps to restore a finished look.

Center hinge assembly supports the refrigerator door at mid-cabinet, providing smooth pivot and proper alignment. Replace if door sags or seals poorly.

Replacement door hinge bushing for refrigerators. Installs in door hinge mechanism. Replace when worn, cracked, or causing door grinding or misalignment.

Refrigerator not cooling properly? The evaporator coil assembly absorbs heat to cool your fridge. Moderate DIY repair with basic tools required.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Refrigerator not cooling or freezer warm? The compressor assembly circulates refrigerant to maintain temperature. Professional installation recommended.

Refrigerator not cooling? This compressor overload protector prevents motor overheating by cutting power when current spikes. DIY-friendly repair.

Refrigerator stopped cooling after power outage? The compressor overload protector prevents overheating damage. Easy DIY fix when compressor won't run.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

Fix refrigerator vibration and rattling noise with this compressor damper. Cushions the compressor to reduce metal-on-metal contact and wear.

Replaces broken or missing refrigerator door stop. Limits door travel to prevent over-extension and maintain proper alignment and smooth operation.

This foam door gasket seals the refrigerator/freezer door edge to help maintain a tight seal, reduce air leaks, and improve cooling efficiency. It replaces worn or compressed foam seals that allow warm air inside. What it does:

• Creates a compressible seal along the door edge to prevent air infiltration
• Helps reduce frost buildup and uneven temperatures caused by leaking seals
• Improves energy efficiency by maintaining consistent cabinet temperature
• Reduces cycling noise caused by the compressor working harder to compensate

• Disconnect power to the appliance before starting any repair
• Clean and dry the door edge thoroughly; remove old adhesive and residue for best adhesion
• Some installations use adhesive or clips—use the OEM adhesive or hardware if required

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Secures the drier assembly to the refrigerator frame. Replace if the clip is cracked, broken, or missing to restore stability and reduce movement.

Motor running loud or vibrating excessively? This motor mounting bracket secures the motor to the cabinet, reducing vibration and noise for stable operation.

This replacement condenser assembly includes the attached wiring harness that secures and connects condenser-area components. It restores the factory wiring path for the condenser and associated electrical connections to help re-establish proper operation. What it does:

• Provides the condenser mounting/connection assembly and pre-attached wire harness for condenser-area components
• Restores factory routing and connector locations for reliable electrical connections
• Commonly replaced when condenser-area wiring is damaged, frayed, or disconnected
• Can resolve symptoms such as cooling loss, intermittent condenser fan operation, or electrical faults localized to the condenser area

• One condenser assembly with attached wire harness

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the rear service panel; keep fasteners and grounding in mind
• Match connectors and wire routing to the original layout; avoid pinching or sharp bends

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This freezer shroud covers internal freezer components in your refrigerator. Replace if cracked, broken, or missing to restore proper appearance.

Fix error code ER DH or ice buildup in your freezer with a new defrost control assembly. Regulates defrost cycles to prevent frost. Moderate DIY repair.

If your refrigerator light stays on or interior won't cool properly, the door switch may have failed. This magnetic switch detects door position.

Refrigerator not cooling or freezer frosting up? The evaporator fan motor circulates cold air through your fridge. Moderate DIY repair for bottom-mount models.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

Replaces a worn or broken evaporator fan motor grommet in your refrigerator. Cushions the motor to reduce vibration and noise during operation.

Replace your refrigerator's LED light assembly when the interior lighting is broken, cracked, or no longer illuminating. Installs inside the compartment.

Refrigerator won't start or compressor struggles to run? The run capacitor provides the power boost needed to start and maintain compressor operation.

Refrigerator won't power on or no electrical connection? This power cord assembly connects your refrigerator to the wall outlet. Direct plug-in part.

Refrigerator not cooling? This compressor overload protector prevents motor overheating by cutting power when current spikes. DIY-friendly repair.

This sheath heater is the heating element used in compatible electric dryers to generate hot air for drying. Replaces a worn or failed heater element to restore normal drying performance and reduce extended dry times. What it does:

• Heats air inside the dryer cabinet so clothes can dry efficiently.
• Commonly linked to symptoms like clothes not drying, extended drying cycles, or no heat from the dryer.
• Works with the dryer's thermostats and thermal fuses; a faulty heater can mimic other heat-related failures.

• Disconnect power at the breaker before servicing — this part involves live AC voltage.
• Inspect and replace any open thermal fuses or failed thermostats at the same time as recommended by the model service guide.
• Handle the element carefully to avoid bending or damaging the sheath; follow OEM instructions and torque specs during reassembly.

Control panel unresponsive or erratic? This protective cover shields your refrigerator's circuit board from moisture and debris. Straightforward install.

Fix refrigerator not powering on or control failures with this main power control board assembly. Restores power distribution and operational control.

Replace your refrigerator's light cover assembly when cracked, yellowed, or broken. Protects the interior bulb and ensures proper lighting. Verify fit with your model number before ordering.

Ice maker stopped producing ice or cycles too slowly? This complete ice maker assembly replaces a faulty unit. DIY-friendly installation in 10-15 minutes.

Fix warm fridge temperatures or frost buildup with this door foam gasket. Creates an airtight seal to keep cold air in and moisture out.

Ice maker not working or leaking water? This inlet valve assembly controls water flow to your ice maker and dispenser. DIY install in 30 minutes or less.

Rail connector for refrigerator shelves and drawers. Replace if cracked, broken, or missing to restore proper rail alignment and support functionality.

Interior light won't turn off when door closes? This refrigerator door switch cover protects and aligns the switch for proper operation. Simple DIY fix.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Fix a refrigerator not cooling properly or running too warm with this temperature sensor. Monitors internal temps to maintain proper cooling.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
