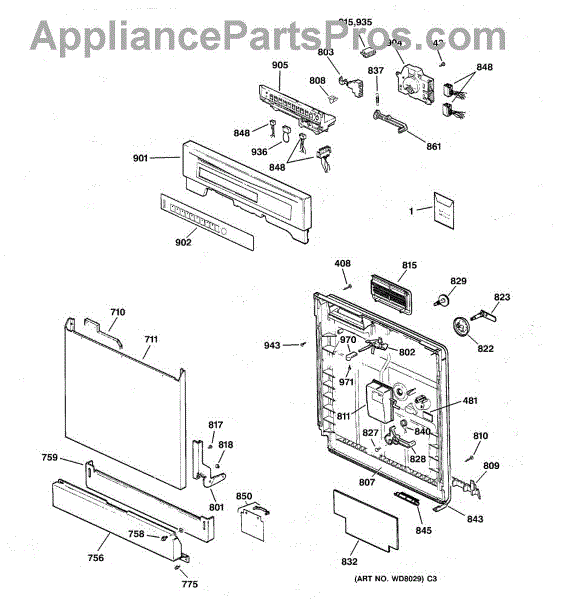

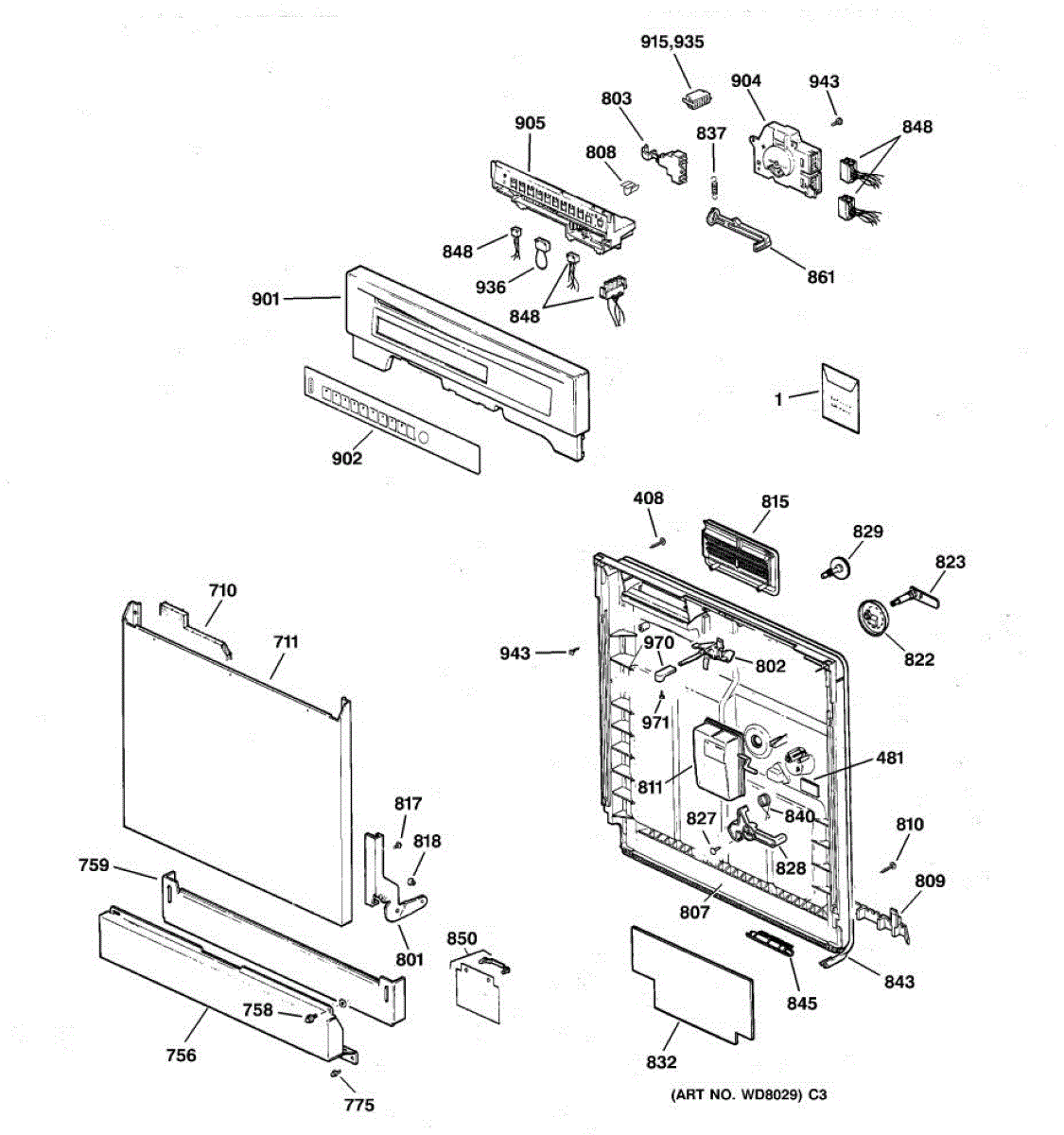

Parts for Ge GSD4010Z00AA: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

A compact preventive-maintenance sheet that gives technicians a concise checklist and quick-reference notes for routine service. Saves time by putting common inspection points and simple procedures on one easy-to-read page. What it does:

• Summarizes routine maintenance tasks and recommended inspection points for quick service checks
• Lists common checks for components, connections, and performance to help identify issues faster
• Provides short, stepwise reminders used by technicians during diagnostic and maintenance visits
• Serves as a portable reference to confirm completed tasks and note observations

• One PM sheet mini service/maintenance sheet

• No tools required; keep with service literature or in technician kit
• Handle and store flat to avoid creasing; replace if damaged or unreadable
• Not an installation guide—follow full service manuals and safety procedures for repairs
• Disconnect power and follow all safety precautions before performing any service tasks

Size: 8-32 x 5/8 inch.

Replacement upper dishrack for dishwashers. Installs in the top position to hold plates, bowls, and glasses. Replace if rusted, cracked, or broken.

Color: Almond

Dishwasher won't start or stops mid-cycle? This door interlock switch assembly secures the door and completes the circuit for safe operation.

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secures water tubing or wiring to your refrigerator cabinet. Replace if missing or damaged to prevent vibration, rubbing, or leaks. Confirm fit.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Size: 10-12 x 1/2 inch.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Damper has adhesive backing.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

Creates a watertight seal around your dishwasher door to prevent leaks during wash cycles. Replace if cracked, worn, or leaking. Verify fit with your model.

Seals the bottom center of your dishwasher door to prevent leaks during wash cycles. Replace if water leaks from the door bottom. Verify fit by model.

Black. Size: 6-5/8".

Color: White.

Color: Black.

Includes 12 terminals.

Includes 12 screws.

Includes 12 screws.
