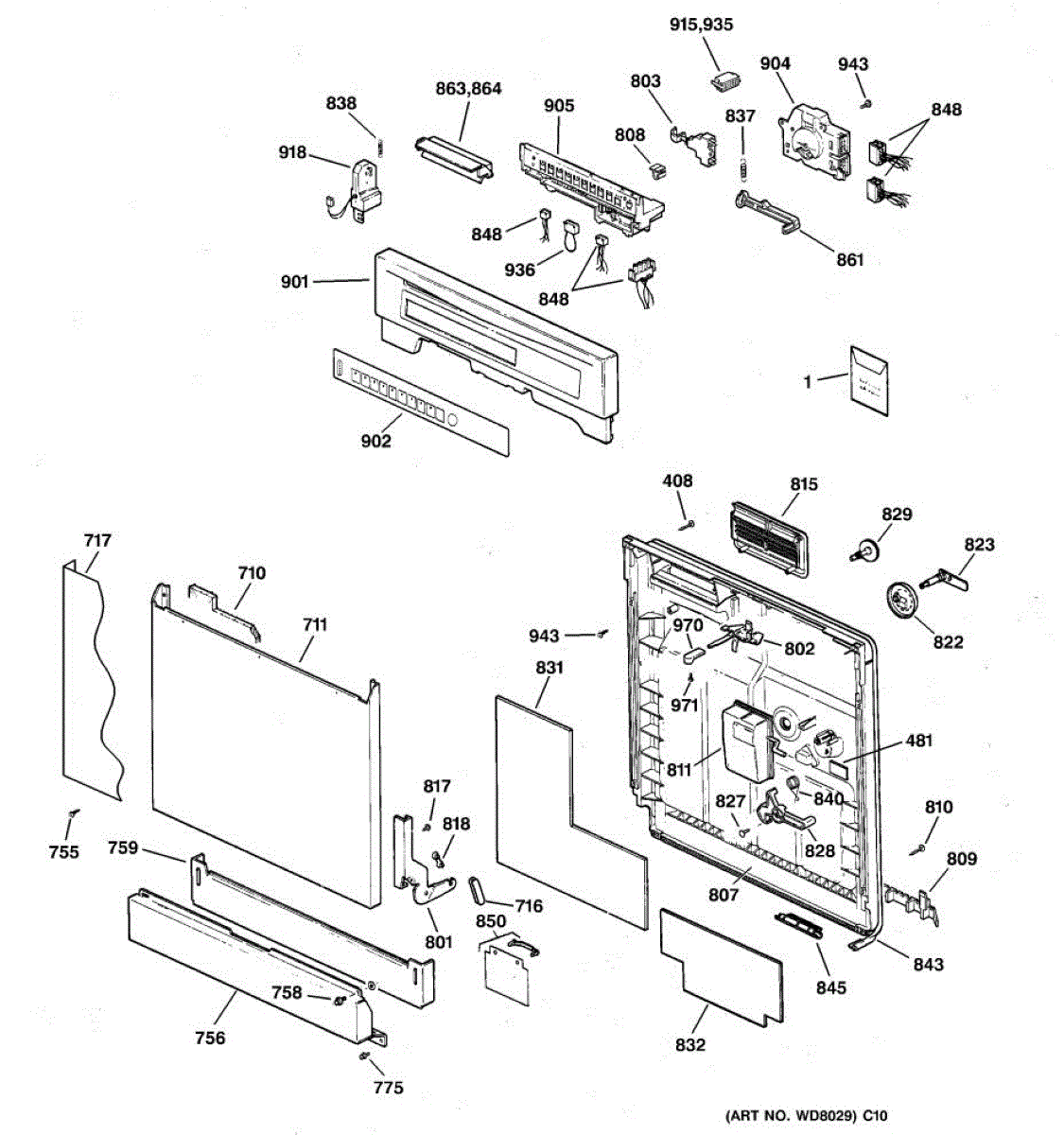

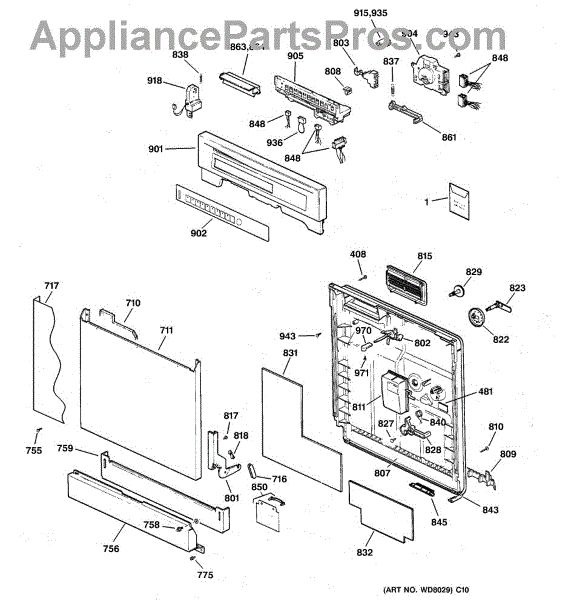

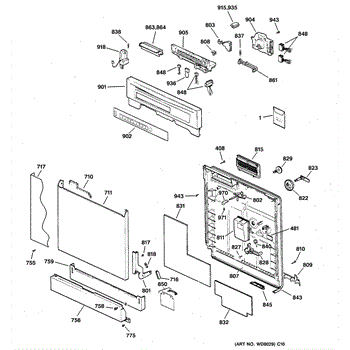

Parts for Ge GSD5620D01BB: 01 - Escutcheon & Door Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Size: 8-32 x 5/8 inch.

Color: Black

Black. 8-18 x 5/16 inch.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replaces the outer front door panel on your dishwasher. Order a new cover if your current panel is streaked, scratched, faded, or damaged.

Covers the lower front service opening on your dishwasher. Replace if cracked, dented, scratched, or missing to restore a clean appearance.

Size: 10-16 ab.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This is the complete left side hinge assembly. For right side use WD14X10008.

This is the complete right side hinge assembly. For left side use WD14X10007.

If your dishwasher won't start or the door won't lock, the door latch assembly is likely failed. DIY-friendly repair takes about 30 minutes to replace.

Dishwasher won't start or stops mid-cycle? This door interlock switch assembly secures the door and completes the circuit for safe operation.

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secures water tubing or wiring to your refrigerator cabinet. Replace if missing or damaged to prevent vibration, rubbing, or leaks. Confirm fit.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement hex head screw for dishwasher component mounting. Secures solenoids, valves, and internal parts. Order when original is rusted, stripped, or missing.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Size: 10-12 x 1/2 inch.

Detergent cup won't stay closed? This dispenser latch secures the detergent cup during wash cycles. Direct replacement part with video guide available.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Damper has adhesive backing.

Spring component for dishwasher vent assembly. Installs on vent mechanism to provide tension. Replace if spring is broken, worn, or missing.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

Seals dishwasher door to prevent leaks during wash cycles. Replace if worn, torn, or causing water leakage. Press-fit installation, no glue needed.

Seals the bottom center of your dishwasher door to prevent leaks during wash cycles. Replace if water leaks from the door bottom. Verify fit by model.

Black. Size: 6-5/8".

Color: White.

Color: Black.

Includes 12 terminals.

This wiring harness is the factory-style electrical connector assembly that restores secure, routed connections between appliance components for reliable operation and safe power delivery. It replaces damaged or worn wiring that can cause intermittent or lost function. What it does

• Re-establishes electrical connections between controls, motors, switches, or sensors.
• Helps stop intermittent power, control failures, or components that won't operate due to broken wiring.
• Keeps wiring routed and secured to prevent chafing or short circuits.
• Provides OEM-style connectors for a direct-fit replacement when the original harness is damaged.

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness.
• Compare the new harness to the old one to ensure connector types and routing before installing.
• Route and secure the harness away from heat and moving parts; avoid pinching or sharp bends.

Includes 12 screws.

Black plastic knob that covers the dishwasher door latch handle. Replace if your knob is missing, cracked, or broken. Installs over the latch lever.

Includes 12 screws.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
