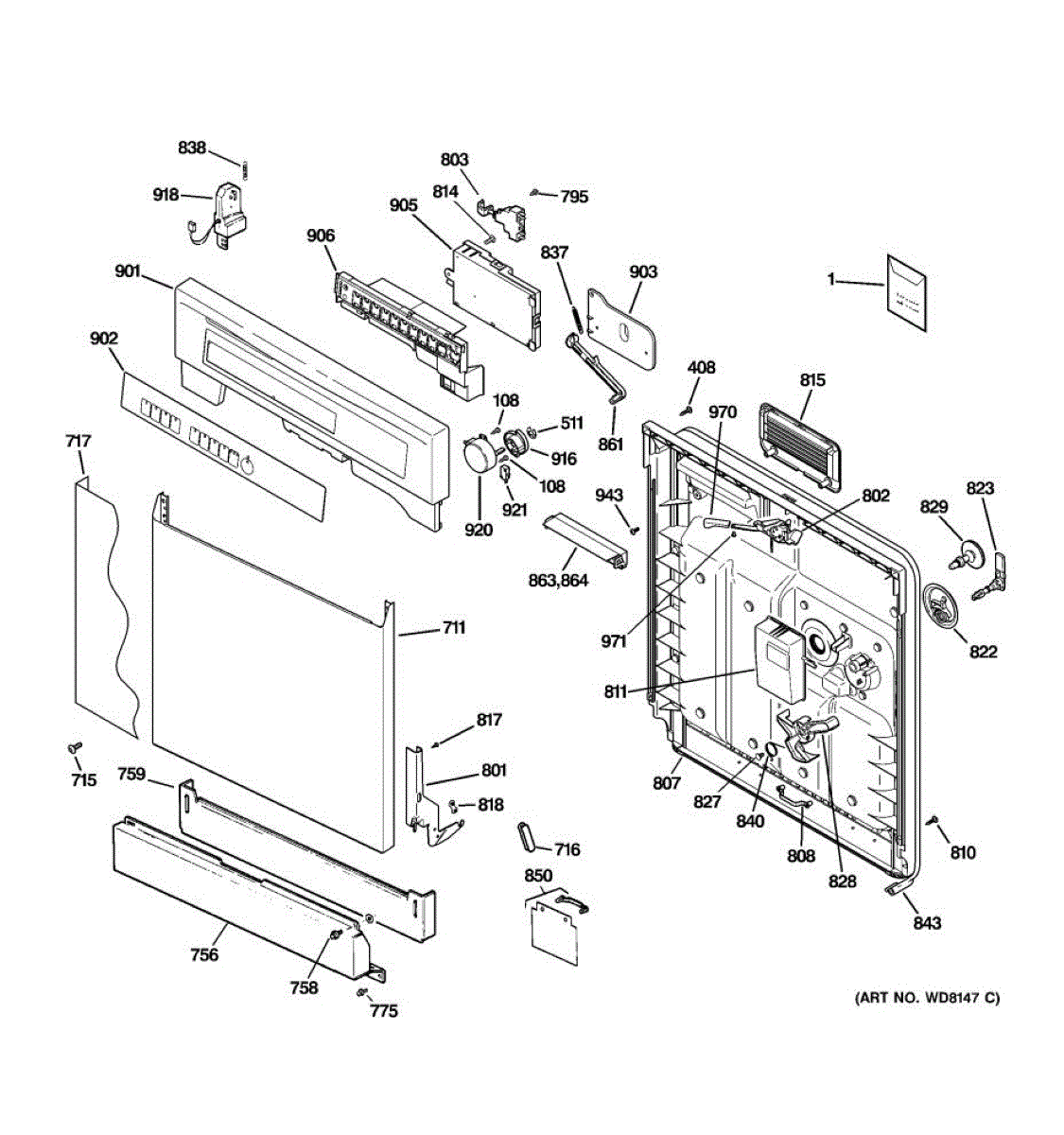

Parts for Ge GSD5900G02CC: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Stainless steel #6-20 screw (1/2" length) secures panels, brackets, and internal components. Replace if missing, stripped, or corroded for a tight fit.

Size: 8-32 x 5/8 inch.

Secures shafts and spindles in dishwasher assemblies by fitting into grooves to prevent lateral movement. Replace if worn, loose, or missing. Verify fit with your model number before ordering.

Replaces cracked, dented, rusted, or split dishwasher front panel. Restores appearance and provides secure mounting for controls and components.

Bisque. 8-18 x 5/16 inch.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Front door panel cover for dishwashers. This long decorative trim piece installs on the lower door section. Replace if cracked, discolored, or damaged.

Finished access panel for dishwasher front. Replaces cracked, rusted, or damaged panels. Restores clean appearance and protects internal components.

Size: 8-32 x 5/16 inch.

Finished toe kick panel that covers the gap between your dishwasher and floor. Replace if cracked, scratched, rusted, or missing for a clean look.

Size: 10-16 ab.

Hex washer head screw secures panels, brackets, and internal components in dishwashers. Replace stripped, rusty, or missing fasteners to restore fit.

Size: 8-18 AB TSQ 5/8 SS

This is the complete left side hinge assembly. For right side use WD14X10008.

This is the complete right side hinge assembly. For left side use WD14X10007.

If your dishwasher won't start or the door won't lock, the door latch assembly is likely failed. DIY-friendly repair takes about 30 minutes to replace.

Dishwasher won't start or stops mid-cycle? This door interlock switch assembly secures the door and completes the circuit for safe operation.

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secure wire harnesses in your dishwasher with this harness clip. Replace if wires are loose or clip is broken. Verify fit with your model number.

Replacement mounting screw for dishwasher door panels, control assemblies, and internal components. Needed when original screws are stripped, rusted, or missing.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement hex head screw for dishwasher component mounting. Secures solenoids, valves, and internal parts. Order when original is rusted, stripped, or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Size: 10-12 x 1/2 inch.

Detergent cup won't stay closed? This dispenser latch secures the detergent cup during wash cycles. Direct replacement part with video guide available.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Spring component for dishwasher vent assembly. Installs on vent mechanism to provide tension. Replace if spring is broken, worn, or missing.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

Seals dishwasher door to prevent leaks during wash cycles. Replace if worn, torn, or causing water leakage. Press-fit installation, no glue needed.

Replacement timer lever bracket for dishwashers. Secures the timer control mechanism in place. Order a new bracket if yours is cracked or broken.

Black. Size: 6-5/8".

Replace your dishwasher's detergent dispenser trip cover if it's cracked, broken, or missing. This cover ensures proper detergent release timing.

This is a replacement washer drive motor that powers the tub to spin and agitate, restoring normal wash and spin cycles. Fits specified GE top-load washers and matches OEM form and function. What it does

• Spins the wash tub to perform spin cycles and remove water
• Powers the agitation/oscillation action during wash cycles
• Commonly replaced when the washer won't spin, won't agitate, or hums without turning
• Helps eliminate intermittent power-to-motor issues when motor failure is the root cause

• One replacement drive motor

• Disconnect power before starting any repair to avoid electric shock
• May require removing the washer cabinet or access panels and detaching the old motor wiring and mounting screws
• Handle carefully — support the tub/drum as needed during motor removal and reinstallation

This switch sensor is a direct-replacement sensing device that detects the position/state of a moving component and sends that signal to the appliance control for reliable operation. It restores correct sensing when the original fails. What it does:

• Detects and reports a component's open/closed or engaged/disengaged position to the control
• Helps the appliance start and change cycles only when the mechanism is in the correct position
• Can resolve symptoms such as no response from the control, intermittent operation, or cycles that won't advance
• Provides a direct electrical/mechanical interface between the moving part and the control system

• One switch sensor

• Disconnect power to the appliance before starting any repair
• Match this part number to the failed sensor before installing
• Handle wiring and connectors carefully; avoid forcing tabs or pins
• Test operation after installation and restore power only when all connections are secure

Includes 12 screws.

Replacement knob latch handle for dishwashers. Secures and indexes the control knob for reliable position selection. Needed when original is broken or worn.

Includes 12 screws.
