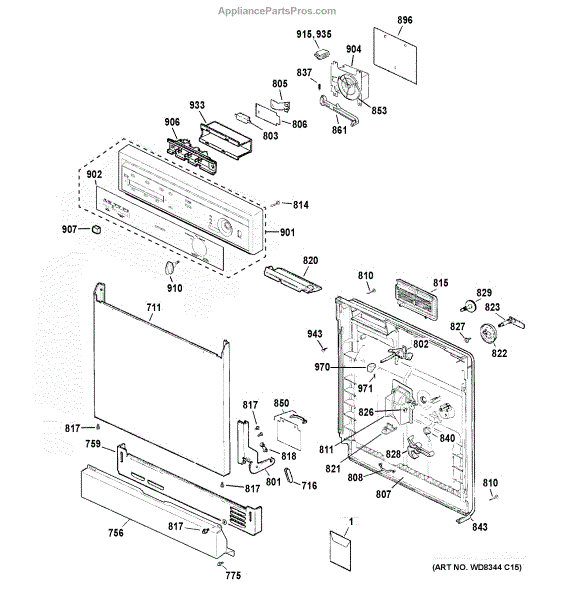

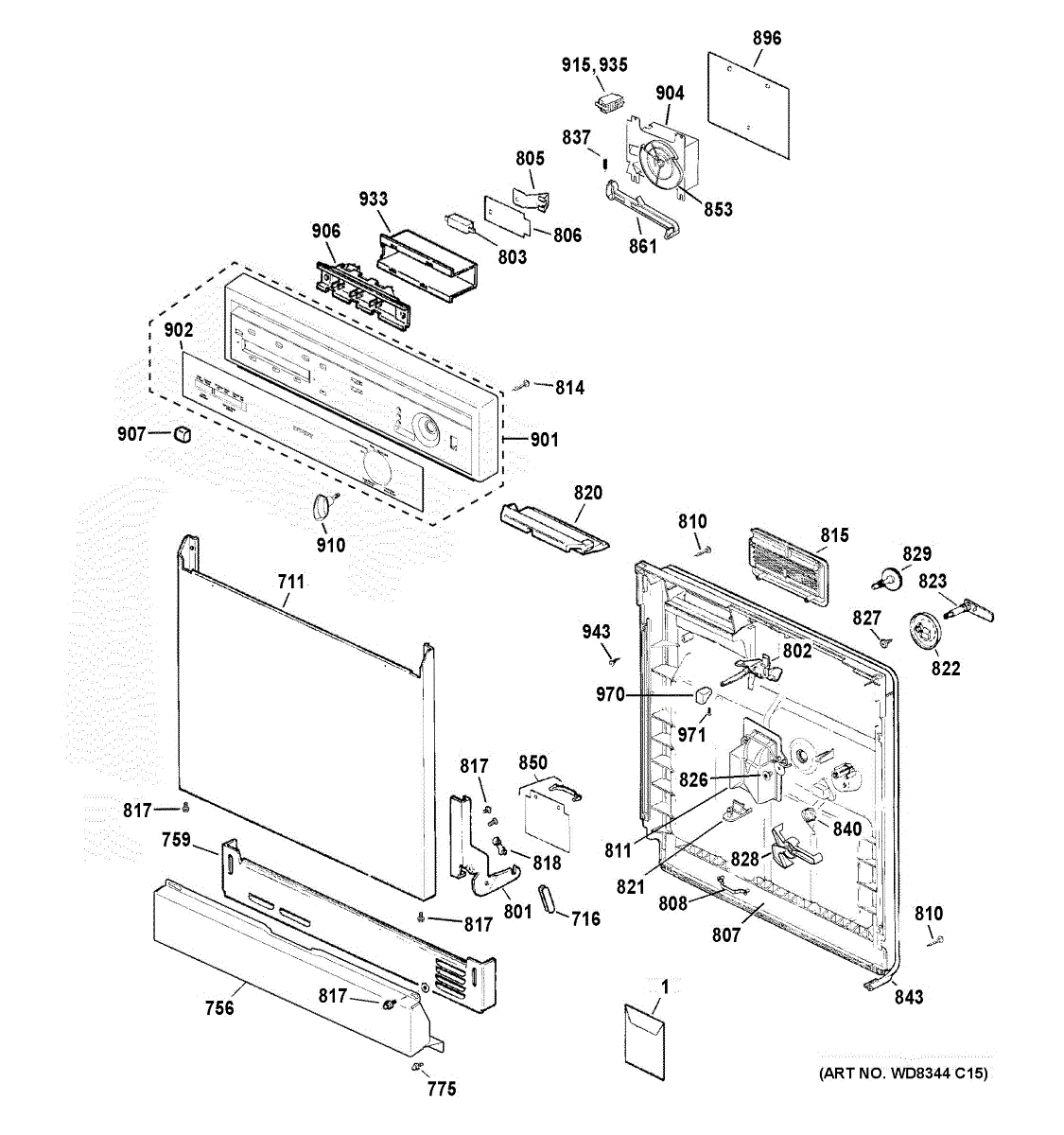

Parts for Hot Point HDA3600K70BB: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: Black

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Covers the lower front service opening on your dishwasher. Replace if cracked, dented, scratched, or missing to restore a clean appearance.

Almond toe kick panel covers the dishwasher base opening beneath the door. Replaces rusted, cracked, or missing kickplates to restore appearance.

Size: 10-16 ab.

Right-hand hinge that secures and guides your dishwasher door for proper alignment and smooth opening. Replace if cracked, broken, or worn to restore stability.

Left side door hinge for dishwashers. Secures and guides the door for proper alignment and smooth operation. Replaces bent, broken, or worn hinges.

If your dishwasher won't start or the door won't lock, the door latch assembly is likely failed. DIY-friendly repair takes about 30 minutes to replace.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

Metal contact leaf for dishwasher switch assemblies. Replace if the original contact is bent, corroded, worn, or missing to restore proper circuit closure.

A shield switch that helps prevent oven/range operation when the door is open and ensures safe control behavior. Replaces a worn or failed interlock switch to restore normal start and door-safety responses. What it does:

• Acts as an interlock micro switch to detect door/cover position and block operation when open
• Commonly replaces a switch causing the control to not start or to behave intermittently
• Can resolve issues like no power to heating elements, control not responding, or oven not entering bake/lock modes
• Small electrical switch that completes or breaks the circuit based on door/cover position

• Disconnect power to the appliance before servicing to avoid shock or injury
• Replace the switch with the same part orientation and secure all connectors firmly
• Verify correct operation by restoring power and testing door open/close and normal cycle starts

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secure wire harnesses in your dishwasher with this harness clip. Replace if wires are loose or clip is broken. Verify fit with your model number.

Replacement mounting screw for dishwasher door panels, control assemblies, and internal components. Needed when original screws are stripped, rusted, or missing.

If your dishes have spots or dry poorly, the rinse aid dispenser may be clogged or leaking. This tank assembly restores proper rinse aid delivery.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement 8-32 x 1/4 screw with HXP head for securing dishwasher panels, brackets, and assemblies. Replaces stripped, missing, or damaged screws.

Replace your dishwasher's worn door hinge arm bearing to restore smooth opening and secure alignment. Fixes binding, noise, and sagging doors. Confirm fit.

Cushions and seals the dishwasher door vent to route steam safely while protecting the control area. Replace if worn, moldy, or causing leaks.

Secures the rinse aid dispenser tank in your dishwasher. Replace if the tank is loose, rattles, or detaches during cycles. Verify fit with your model.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Size: 10-12 x 1/2 inch.

Detergent cup won't stay closed? This dispenser latch secures the detergent cup during wash cycles. Direct replacement part with video guide available.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a dishwasher that won't advance through cycles with this timer lever spring. Works with the control timer mechanism. Basic repair with screwdriver.

Seals dishwasher door to prevent leaks during wash cycles. Replace if worn, torn, or causing water leakage. Press-fit installation, no glue needed.

This drip shield helps direct water away from sensitive components to prevent leaks and staining. It's a simple replacement part that restores proper water control and helps keep the area under the unit dry. What it does:

• Channels condensate or runoff away from electrical components and cabinetry
• Helps prevent water stains and pooling under the appliance
• Restores proper water path when the original shield is cracked, warped, or missing
• Works as a passive protective barrier—no electrical or moving functions

• One drip shield designed for the specified OEM application

• Installation usually requires removing access panels or the affected trim; refer to your service manual
• Power off and disconnect the appliance before beginning any repair
• Handle edges carefully; plastic shields may have sharp or brittle edges when damaged
• Use OEM fasteners and follow torque guidance from the manufacturer when reassembling

Fix a dishwasher that won't advance through cycles or gets stuck mid-wash with this timer cam. Regulates wash cycle timing via internal camshaft design.

Dishwasher won't advance through cycles or stops mid-cycle? This timer controls wash, rinse, and dry durations. Moderate DIY repair, 1-2 hours.

Replace a broken, cracked, or missing control panel button on your dishwasher. This pushbutton installs on the front control panel for cycle selection.

Replaces a cracked, stripped, or broken cycle control knob on your dishwasher. Mounts to the timer shaft to select and advance wash cycles.

Insulating switch cover for dishwashers. Protects electrical switch components from moisture and heat. Replace if cracked, broken, or missing.

Includes 12 terminals.

Stainless steel mounting screw for dishwashers. Secures panels, brackets, and internal components. Replace if stripped, corroded, or missing.

Black plastic knob that covers the dishwasher door latch handle. Replace if your knob is missing, cracked, or broken. Installs over the latch lever.
