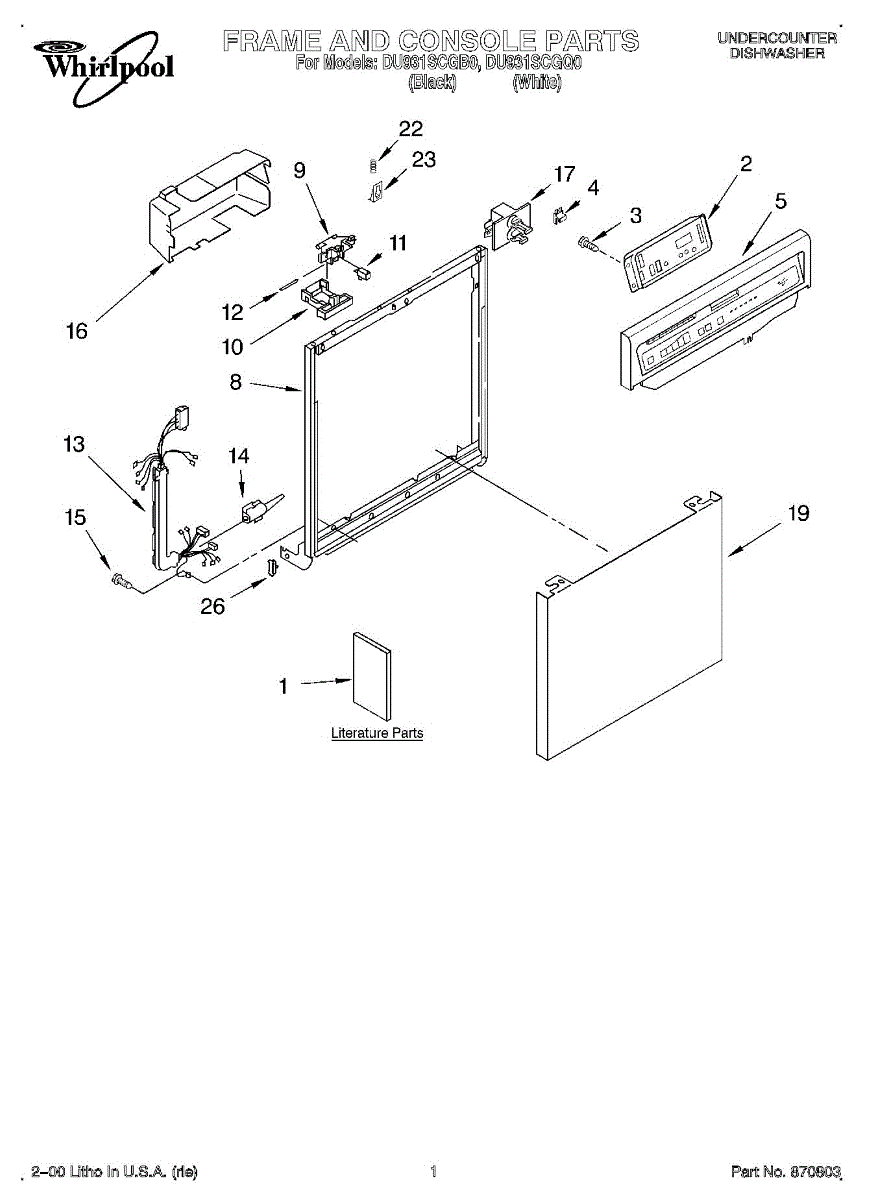

Parts for Whirlpool DU931SCGQ0: 01 - Frame And Console, Literature Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Note: If no display on the control panel, check the thermal fuse on board first before ordering this part.

Size: 8-18 x 1/2 inch.

The Thermal Fuse is an OEM part for Whirlpool dishwashers. It serves as a crucial safety component that prevents the appliance from overheating by cutting off electrical power if the temperature inside the dishwasher becomes too high. This helps protect both the dishwasher and your home from potential fire hazards.

Causes of a bad thermal fuse can include overheating due to blocked air vents, malfunctioning components that lead to excessive heat, or electrical surges that damage the fuse. Over time, regular wear and tear can also contribute to the fuse's failure.

Symptoms of a bad thermal fuse include:

• The dishwasher not starting or running
• The control panel not responding
• The dishwasher stopping unexpectedly mid-cycle
• No indicator lights or sounds when attempting to operate the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Structural door frame for dishwashers. Mounts to the tub and supports the door panel. Replace if cracked, rusted, warped, or damaged from corrosion.

Color: Black. For almond use WP3369457. For biscuit use 3375062. White is no longer available.

The Latch Switch Kit, an OEM Replacement Part is designed to ensure the safe operation of your Whirlpool dishwasher. The kit includes two microswitches and a wiring harness. It prevents the appliance from running when the door is open. If defective, the door switch may prevent the dishwasher from operating even when the door is closed.

Causes of a bad door switch can include wear and tear, exposure to moisture, or a broken actuator.

Symptoms of a bad door switch include:

• Dishwasher not starting
• Dishwasher stopping mid-cycle
• Error codes related to door issues
• Dishwasher running with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Wire harness elbow connector for dishwashers. Replaces damaged, cracked, or broken electrical connectors that route power between components.

Size: 8-32 x 1/4 inch.

Timer control cover.

Wax motor for dispenser.

Color: White. For almond use WP8054178. For biscuit use WP8054178. For black use WP3379375.

Color: Black. For almond use WP8054178. For white use WP3379376. For bisque use WP8054178.

This door catch and strike work together to keep the door securely closed and engage the safety interlock switch. Replacing worn pieces restores a firm latch and reliable operation when the door is properly shut.

• Aligns and engages the latch so the door stays closed during operation
• Activates the door switch so cycles can start
• Helps prevent the door from popping open mid-cycle
• Common symptoms: door won't latch without force, unit won't start, visible wear or a bent strike

• Disconnect power to the appliance before servicing
• Open the door and remove mounting fasteners to swap the catch and strike
• Adjust strike alignment/depth so the latch engages fully and the door sits flush
• Restore power and test for smooth closing and proper cycle start

This door catch and strike work together to keep the door securely closed and engage the safety interlock switch. Replacing worn pieces restores a firm latch and reliable operation when the door is properly shut.

• Aligns and engages the latch so the door stays closed during operation
• Activates the door switch so cycles can start
• Helps prevent the door from popping open mid-cycle
• Common symptoms: door won't latch without force, unit won't start, visible wear or a bent strike

• Disconnect power to the appliance before servicing
• Open the door and remove mounting fasteners to swap the catch and strike
• Adjust strike alignment/depth so the latch engages fully and the door sits flush
• Restore power and test for smooth closing and proper cycle start

Provides pivot point for dishwasher door spring to reduce wear. Replace if door drops, slams, or balance is off. Confirm fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
