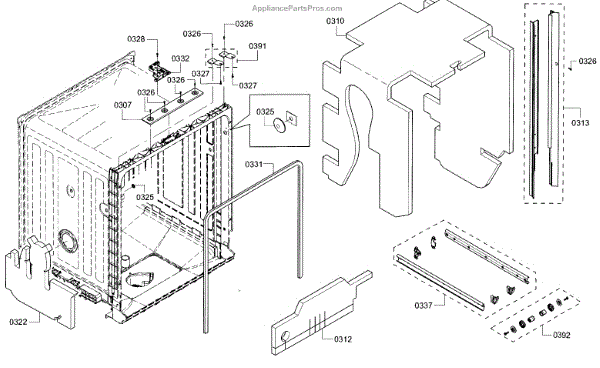

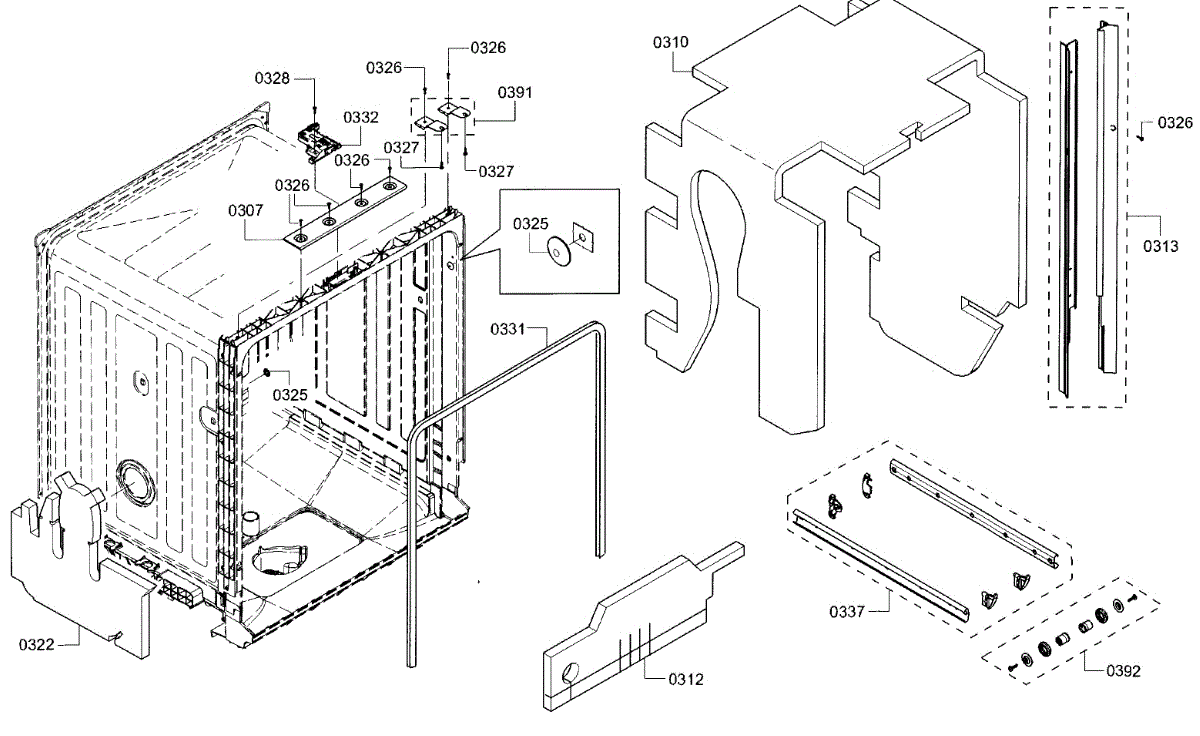

Parts for Bosch SHX5AV52UC/01: Frame Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Mounting bracket secures dishwasher to countertop or cabinet sides. Replace if broken, missing, or worn to restore proper installation stability.

Insulates and seals your dishwasher to contain heat and moisture. Replace if damaged, worn, or missing to restore efficiency. Verify fit with your model.

Fix heat damage or component contact issues with this dishwasher insulating panel. Restores factory spacing and protection between parts. DIY-friendly.

White side trim strips that finish the left and right edges of your dishwasher cutout. Replace cracked, yellowed, or missing trim pieces.

Replace your dishwasher's cap if it's cracked, broken, or missing. This component covers and protects internal connections. Easy DIY installation.

This factory screw secures appliance components per the original design, helping stop looseness and vibration. Replace a missing, stripped, or corroded fastener to restore a solid, rattle-free fit and protect nearby parts from damage.

• Secures panels, brackets, or internal components as specified by the manufacturer
• Helps maintain proper alignment and reduces vibration or rattling
• Replace if the head is stripped, threads are damaged, or the screw is missing
• Common signs include loose or misaligned panels/trim and hardware that won't stay tight

• Disconnect power and turn off water or gas supply as applicable before servicing
• Match length and thread to the original; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly without overtightening
• Retain any original washers, bushings, or clips used in the assembly

Secures internal components and mounting brackets in your dishwasher. Replace if missing, stripped, or lost during installation or cabinet remodeling.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Mounting screw for dishwasher assembly. Secures internal components and panels. Replace if lost, stripped, or corroded during repairs or maintenance.

Prevents water leaks by creating an airtight seal around your dishwasher door. Replace if you notice leaking, warping, or tears. Confirm fit with your model.

Fix a dishwasher door that won't latch or cycles stopping mid-wash. This door lock assembly secures the door during operation. Easy 10-minute repair.

Replaces sliding rails that support and guide the upper dishrack along tub sidewalls. Needed when rails are cracked, worn, or broken causing binding.

Replacement mounting bracket for dishwashers. Secures unit to countertops and cabinetry. Replace if bracket is cracked, broken, or missing from installation.

Repairs damaged upper rack rail mounting points for smooth gliding. Replace when rack wobbles or rails detach. Confirm fit with your model number.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
