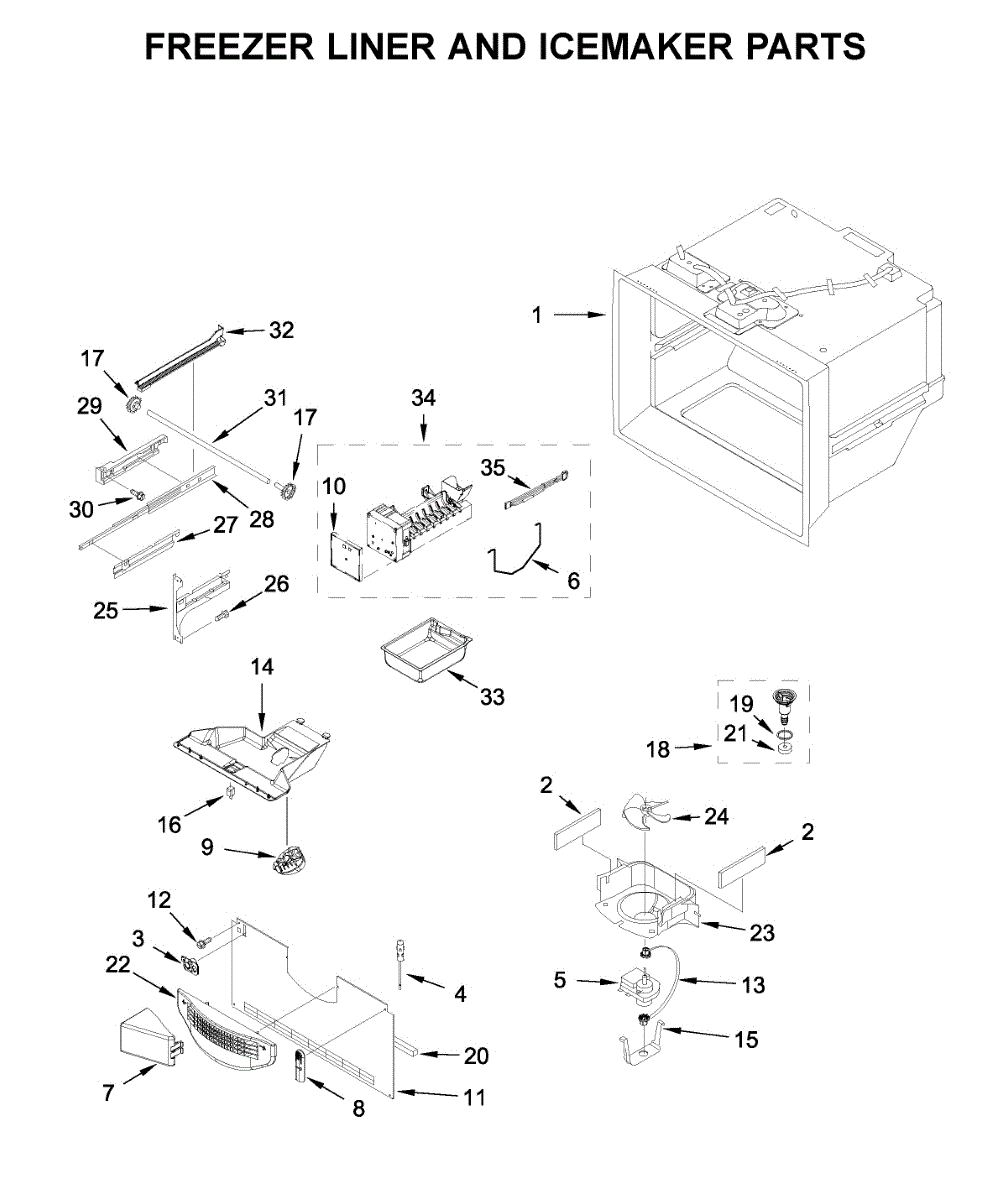

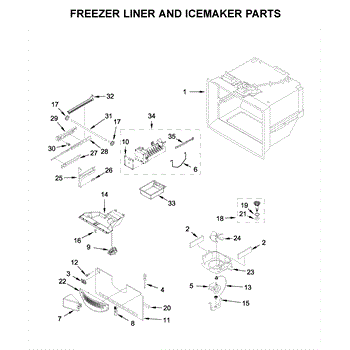

Parts for Kitchenaid KRFF305EBS01: Freezer Liner And Icemaker Parts

Replace your refrigerator's fill tube guide if cracked, broken, or missing. This plastic guide sleeve directs the water fill tube in your ice maker assembly.

Refrigerator freezing food or not cooling properly? A faulty temperature sensor may be the cause. DIY-friendly repair with video guide available.

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

• Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
• Helps prevent overfilling, spills, and auger jams
• Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
• Restores proper ice level sensing when the original lever is damaged or missing

• One shut-off arm

• Disconnect power and shut off water before servicing
• Remove the ice bin to access the ice maker
• Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
• The arm moves freely up/down and clears the bin before restoring power

LED light module illuminates refrigerator and freezer compartments. Replace when lights go out or produce dim, flickering light. Verify fit by model.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

Plastic evaporator cover for refrigerators. Installs over the evaporator coil in the freezer section. Replace if cracked, broken, or missing.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Water pooling in freezer or fridge? A clogged or cracked defrost drain funnel causes leaks. DIY fix in 30-45 minutes by accessing the rear freezer panel.

Right-hand slide bracket secures drawer or shelf slide assemblies in refrigerators. Replace if cracked, broken, or causing misalignment issues.

Left-side slide bracket that secures and guides drawer assemblies in refrigerators. Replaces worn, cracked, or broken brackets to restore alignment.

Extends and retracts freezer drawer in bottom-mount refrigerators. Replace if the spring broke, plastic tab cracked, or drawer won't close properly.

NOTE:  This is a set of 2 slides.

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Cracked ice bin causing jams or leaks? This refrigerator ice container stores cubes beneath the icemaker and guides them to the dispenser door.

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.

Fix intermittent power issues or control failures in your refrigerator with this wire harness. Restores electrical connections between components.
