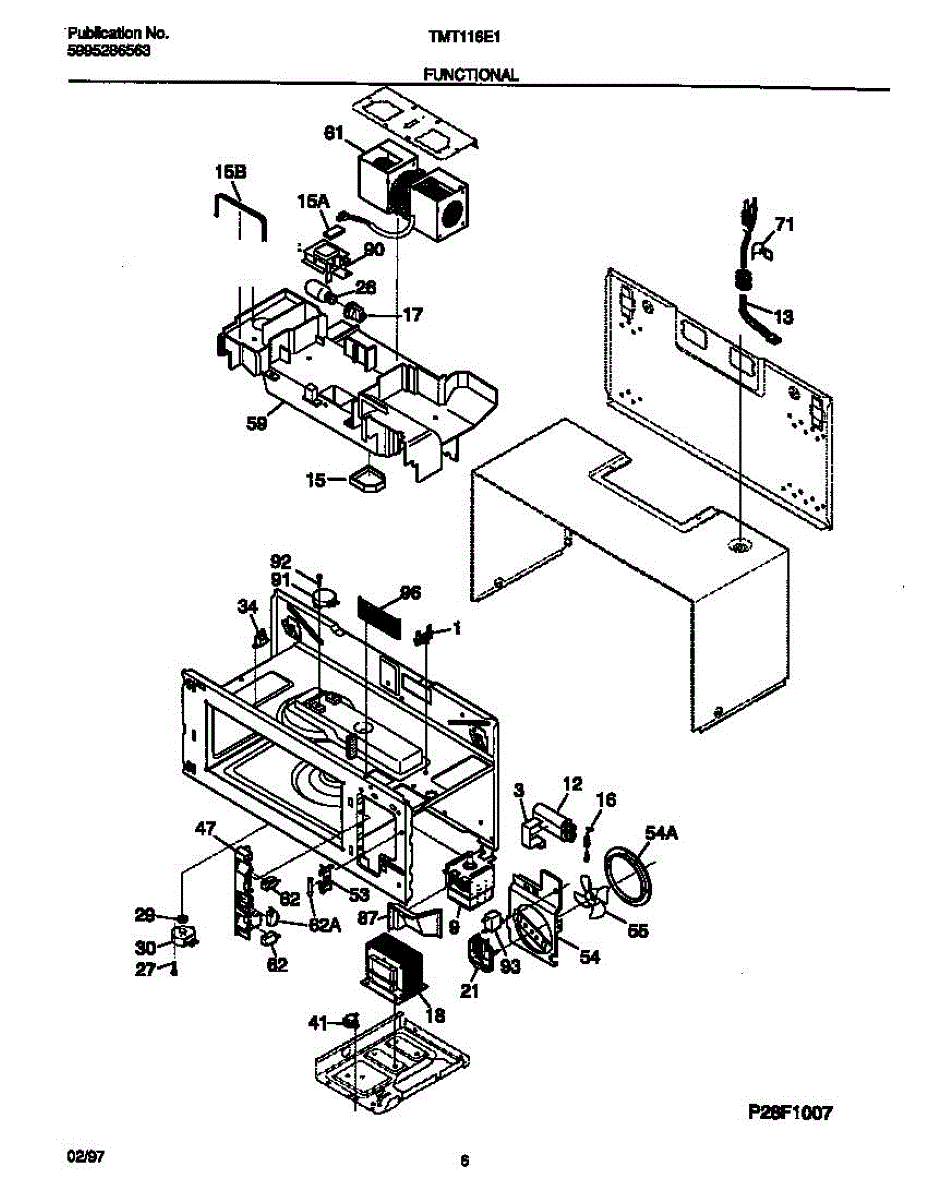

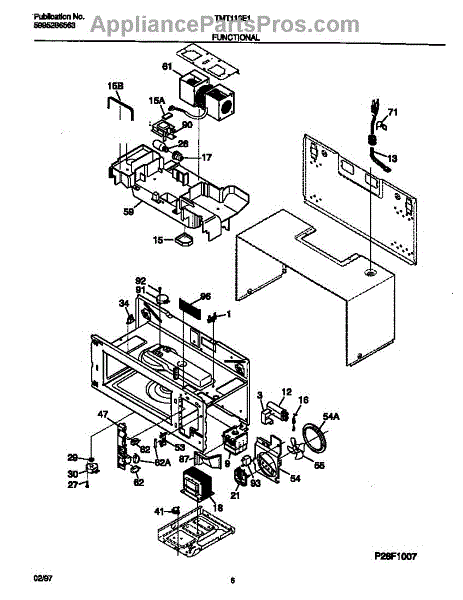

Parts for Frigidaire TMT116E1B0: 04 - Functional Parts

Microwave won't start or suddenly stopped working? This thermal fuse protects the magnetron from overheating. Common fix for dead microwaves. Easy install.

If your microwave isn't heating food or heats unevenly, the magnetron may have failed. This high-voltage tube generates microwave energy for cooking.

Microwave won't heat or makes humming noise? This capacitor works with the magnetron to generate heat. Moderate difficulty repair, 30-45 minutes.

If your microwave won't heat food, the high voltage transformer may have failed. This part powers the magnetron to generate microwave energy.

Restores interior and cooktop lighting in your microwave. Replace when bulb burns out or dims for clear visibility. Verify fit with your model number.

Replace your microwave door gasket to restore a proper seal and prevent heat loss. Fixes worn or damaged seals for consistent heating. Verify fit.

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

• Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
• Common failure signs: won't start, only hums, stalls, or intermittently runs
• Worn bearings or windings can lead to overheating and reduced performance

• Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
• Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
• Mount securely, align the shaft, and confirm correct rotation before finalizing
• Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

Mounting screw for microwave cutout switch assembly. Secures the switch in place during installation. Order a replacement if lost or stripped.

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

• Sends variable power to a surface burner to adjust heat levels as you set the knob
• Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
• Can fix clicking, intermittent operation, or loss of variable control on the affected element
• Works with the cooktop's control knob and wiring harness to manage element output

What's included:

• One replacement infinite burner control switch

Install notes:

• Disconnect power to the appliance before beginning any work
• Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
• Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

Microwave won't power on? A damaged fuse holder prevents proper electrical connection. This holder secures your fuse and restores circuit protection.

This orifice for the fan duct helps direct airflow from the evaporator fan to the cabinet, ensuring consistent cooling where needed. It replaces a damaged or missing duct orifice to restore proper air delivery inside the appliance. What it does:

• Guides and narrows airflow from the evaporator fan to targeted areas in the cabinet
• Helps maintain even temperatures and proper compartment cooling
• Commonly replaced when the duct is cracked, broken, or missing pieces
• Compatible with OEM fan duct assemblies that use a small plastic orifice

• One fan duct orifice as shown

• Disconnect power to the appliance before starting any repair
• Typically installs behind an inner liner or access panel; some disassembly of trim or shelves may be required
• Handle the plastic part gently to avoid cracking during installation

This switch/fuse kit replaces a worn or failed control switch and associated fuse to restore reliable power control. It provides the exact components needed to address common start and power interruptions. What it does:

• Replaces a faulty control switch to restore on/off or cycle control
• Replaces the protective fuse to stop power loss from a blown fuse
• Helps resolve no-start, intermittent power, or control failures
• Restores proper electrical continuity for safe operation

• Disconnect power to the appliance before starting any work
• Handle electrical components carefully and avoid metal contact with terminals
• Verify correct part orientation and secure all connections per OEM guidance

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

Microwave overheating or shutting off during use? This magnetron air duct channels cooling air to prevent component failure. Moderate DIY repair.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Replacement mounting screw secures panels, trim, and components in microwaves. Needed when original screws are stripped, missing, or lost during repairs.
