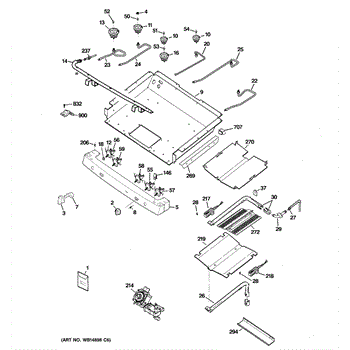

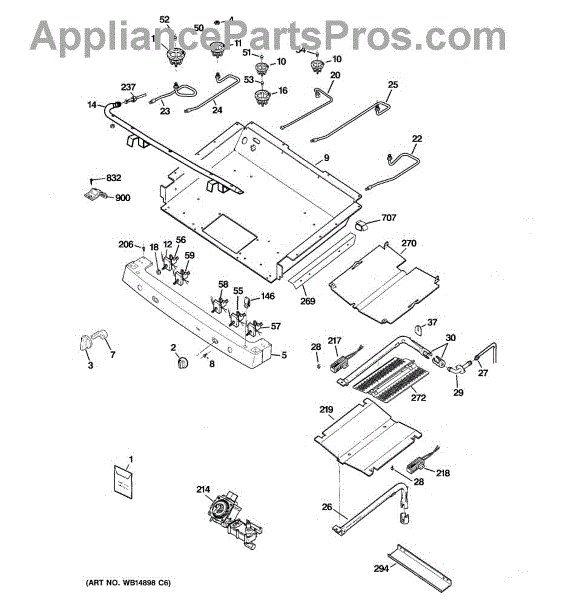

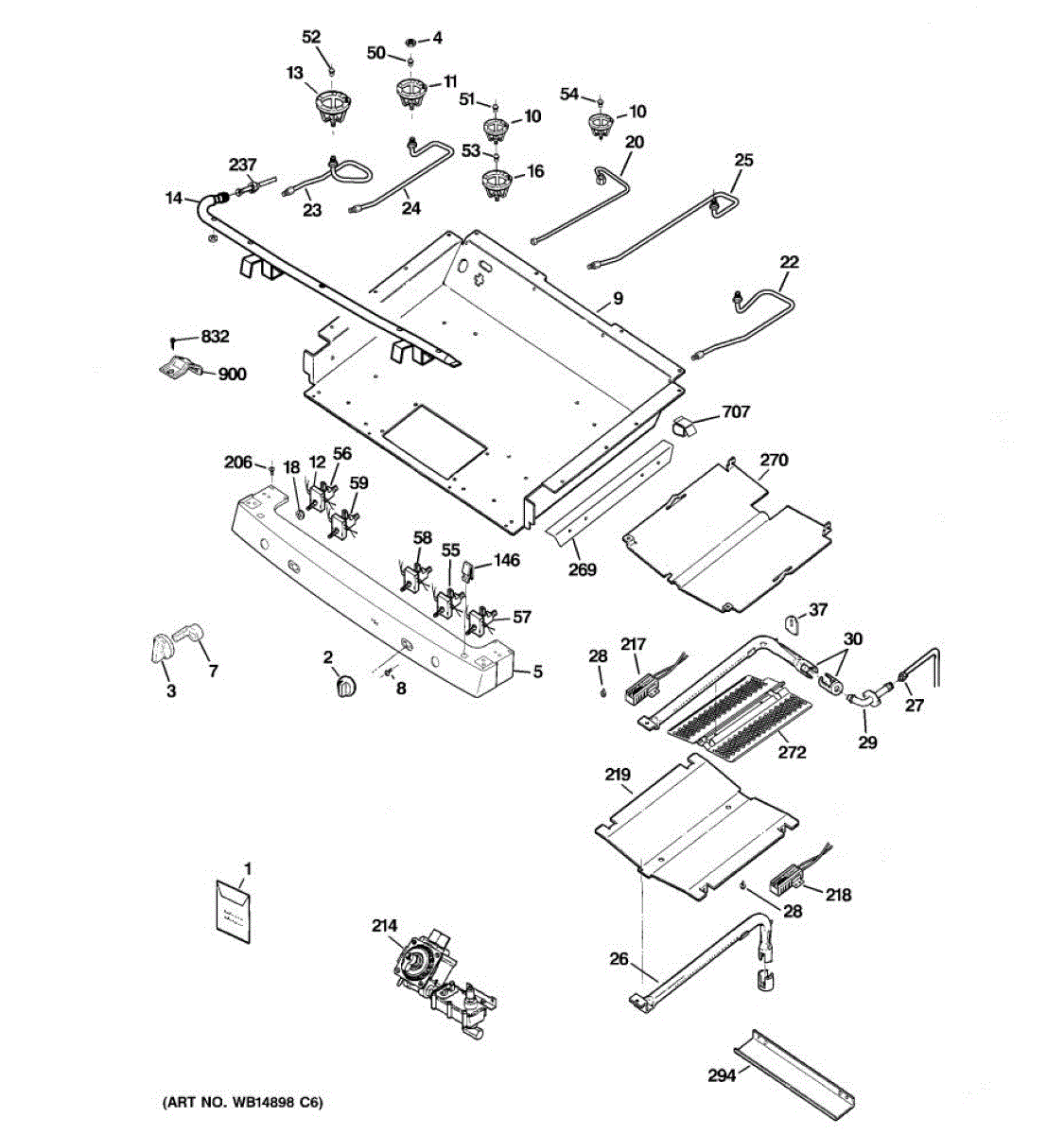

Parts for Ge JGB605DET2BB: 01 - Gas & Burner Parts

Secures rubber feet to range grates. Replace when feet become loose or detached to prevent grate movement. Verify fit with your range model number.

Control knob assembly for range burner or oven temperature adjustment. Replaces cracked, broken, or missing knobs. Installs on control panel.

Color: White

Control knob assembly for range cooktops. Installs on the control panel to operate burners. Replace if cracked, broken, or worn from daily use.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

Burner box for gas ranges. Installs beneath the cooktop to house burner components. Replace if cracked, warped, rusted, or damaged from heat exposure.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame, preventing shifting or rocking. Replace if your bracket is cracked, bent, worn, or missing for stable alignment.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

This is an authentic OEM orifice holder sourced directly from the manufacturer for use on gas stoves. The orifice holder is located on the stovetop and supplies the gas to the burner base for cooking. If this part becomes bent or damaged or is missing from the stove, it should be replaced. If the orifice holder is damaged, the flame that is cooking the food may not receive a steady supply of gas, and the cooking temperature will be affected.Disconnect the power from the gas stove and shut off the gas supply. Take the grates and burner caps off the stoves. Remove the burner bases so that there is access to the top panel of the stove. Remove the screws holding the top panel in place and take the top panel off. Set the screws aside. Loosen the electrode bracket and take the orifice holder off the stove. Install the new orifice holder and tighten the mounting screw. Replace the parts removed during the repair and reconnect the gas and power.This orifice holder is a metal part that is sold individually. It is designed for use in gas ranges manufactured by General Electric.

Fix weak flames or ignition issues on your rear right burner. This orifice holder secures the gas orifice for proper positioning and reliable performance.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

LP orifice spud meters liquid propane gas to your range burner. Replace when converting from natural gas to LP or if the jet is worn or incorrect.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

This 270° burner valve controls gas flow to a single surface burner, restoring reliable flame adjustment and ignition on compatible gas ranges. Designed as a direct replacement to regain proper low-to-high flame control. What it does:

• Regulates gas flow to one surface burner for precise flame control across the full 270° rotation.
• Works with the control knob to adjust flame from low to high for cooking needs.
• Commonly replaces valves that cause a burner not to light, produce a weak or uneven flame, or not respond to the knob.
• Matches OEM function and mounting style for direct replacement where specified.

• Turn off the appliance power and shut off the gas supply before servicing.
• Check all gas fittings for tightness and test for leaks after installation using an approved leak-test method.
• Do not modify the valve or gas connections; follow OEM service instructions and local codes for gas appliances.

Burner won't turn off or leaks gas when off? This top burner valve regulates gas flow to your range burner. DIY-friendly repair restores flame control.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Fix slow preheating and inconsistent oven temperatures with this gas valve control assembly. Regulates gas flow to the burner for reliable ignition.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
