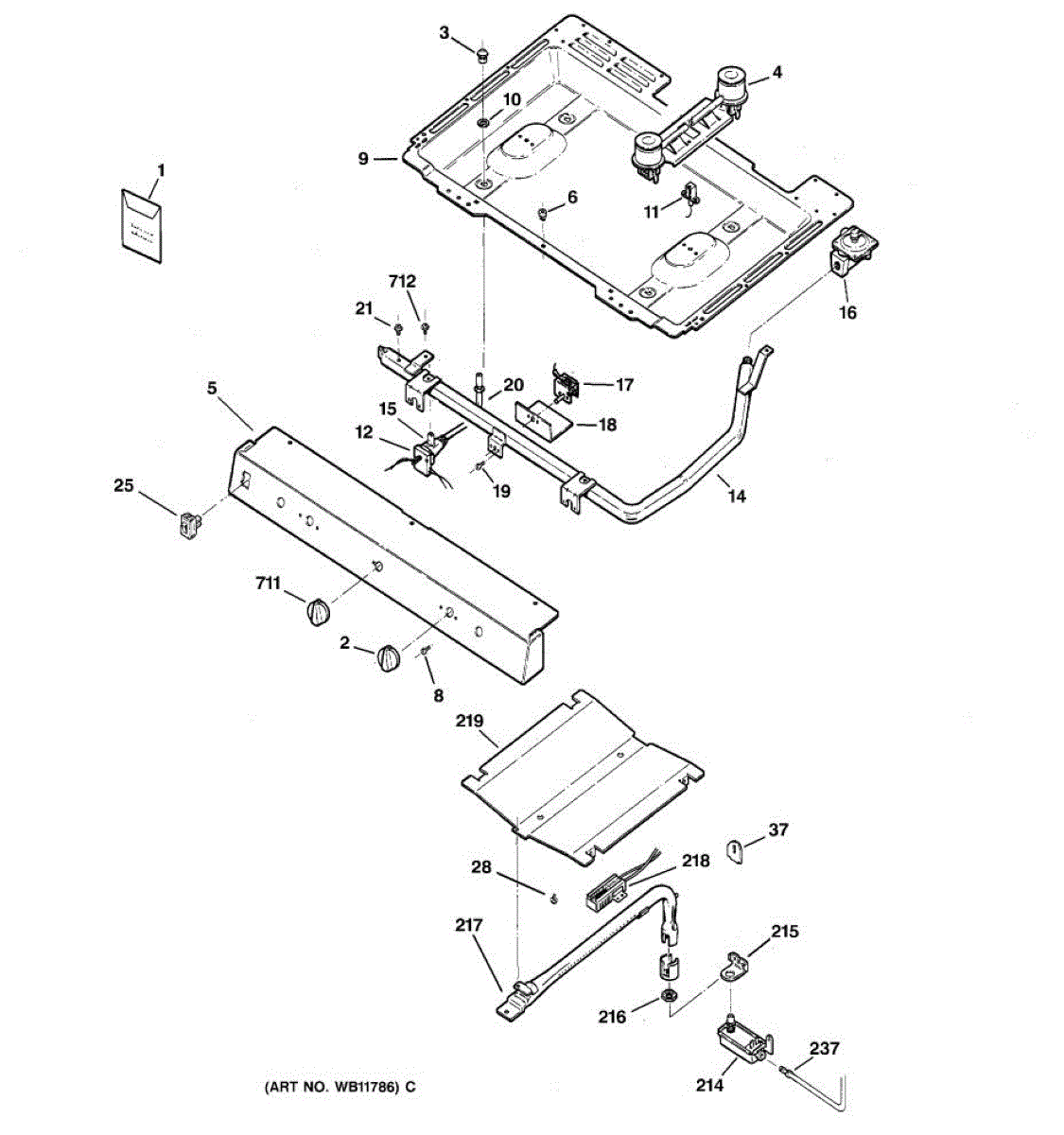

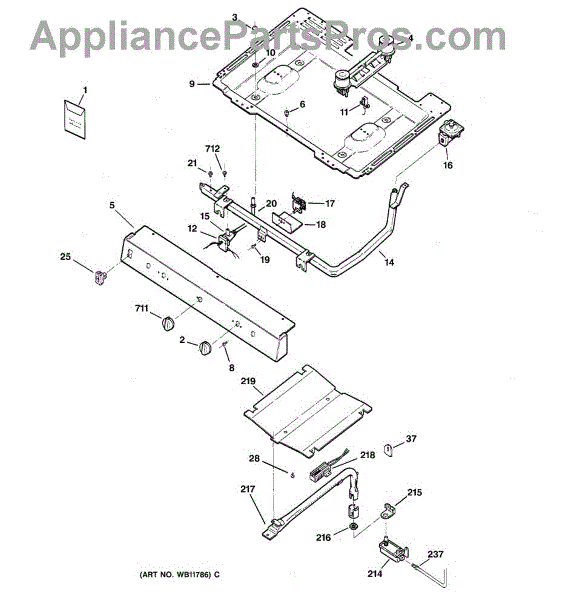

Parts for Ge JGBC20BEA3CT: 01 - Gas & Burner Parts

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Converts your gas range from natural gas to LP propane or vice versa. Includes orifices and components needed when switching fuel types or relocating.

Black control knob for gas range top burners. Mounts on valve stem to adjust heat settings. Replace worn, cracked, or missing knobs to restore control.

Natural gas orifice spud for gas range burners. Installs in the burner assembly to regulate gas flow. Replace if cracked, stripped, or missing.

Replacement orifice spud that threads into the cooktop surface burner holder to meter gas flow. Needed when converting fuel types or replacing worn parts.

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8 - 32 inch.

Burner box for gas ranges. Houses burners and supports cooktop components. Replace if cracked, warped, or corroded to restore structure and appearance.

Burner won't light when you turn the knob? This spark electrode creates the electric arc that ignites your gas burner. Straightforward DIY repair.

Burner won't spark or ignite? This ignition switch controls the spark module for gas range surface burners. Mounts on the valve assembly behind knobs.

Replace your gas range manifold pipe if cracked, corroded, or leaking. This component distributes gas from the supply line to the burner valves.

Burner won't ignite, leaks gas, or knob feels stiff? This surface burner valve controls gas flow to your cooktop burner. DIY repair in 5-10 minutes.

Reduces and stabilizes gas supply pressure to your range manifold. Replace if cracked, leaking, or damaged to restore safe, consistent gas flow to burners.

Oven not reaching set temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 30-60 minutes with basic tools.

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Burner tube assembly for gas range right rear position. Replaces cracked, corroded, or damaged tubes that deliver gas from valve to burner head.

Burner tube assembly for gas range left rear position. Replace if tube is cracked, corroded, or damaged. Installs between orifice and burner head.

Burner tube assembly for gas ranges, installs at the right front position. Replace if tube is cracked, broken, or leaking to restore safe gas flow.

Burner tube assembly for the left front position on your gas range. Replace if tube is cracked, corroded, or damaged to restore proper burner function.

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.

Color: Black

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Oven won't light or has gas odor? The safety valve controls gas flow to the burner. Common fix when igniter glows but oven won't ignite. DIY-friendly repair.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

The Oven Bake Burner is an OEM part for GE gas ovens. It is responsible for providing the heat necessary for baking by distributing an even flame across the oven cavity. This burner tube measures approximately 20" in total length and 6" in height. This burner is compatible with both liquid propane (LP) and natural gas (NG) setups, with the settings determined by the regulator.

Causes of a bad oven bake burner can include wear and tear from frequent use, clogging from food debris or grease, or damage from exposure to high temperatures. A malfunctioning burner can lead to uneven cooking and longer baking times.

Symptoms of a bad Oven Bake Burner include:

• Uneven baking or cooking results
• Weak or no flame when the bake function is activated
• Delayed ignition or clicking sounds without ignition
• Unusual smells or visible damage to the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This tube routes water from the refrigerator's water valve to the dispenser or ice system, restoring proper water flow and stopping leaks when a cracked or clogged supply tube is the issue. Easy direct replacement for affected lines. What it does

• Carries water from the valve to the dispenser or ice maker so the appliance can fill and dispense properly.
• Commonly replaced when you see leaks at fittings, a puddle under the fridge, or a visibly cracked or split tube.
• Can restore normal water flow when the line is pinched, kinked, or partially obstructed.
• Works with factory fittings and clamps used on the valve-to-ice maker/dispenser connection.

• Turn off the refrigerator's water supply and unplug the appliance before starting; drain remaining water from the line.
• Inspect fittings for damage; loosen or remove existing clamps/fittings to swap the tube, then secure new tube and clamps to prevent leaks.
• After installation, restore water and power, check all connections for leaks, and run the dispenser/ice maker briefly to confirm proper flow.

Replace your broken, cracked, or faded gas range oven thermostat knob. This control knob slides onto the thermostat shaft for temperature selection.

Mounting screw for electric wall ovens, gas ranges, and refrigerators. Replaces lost, stripped, or damaged screws used to secure panels and components.
