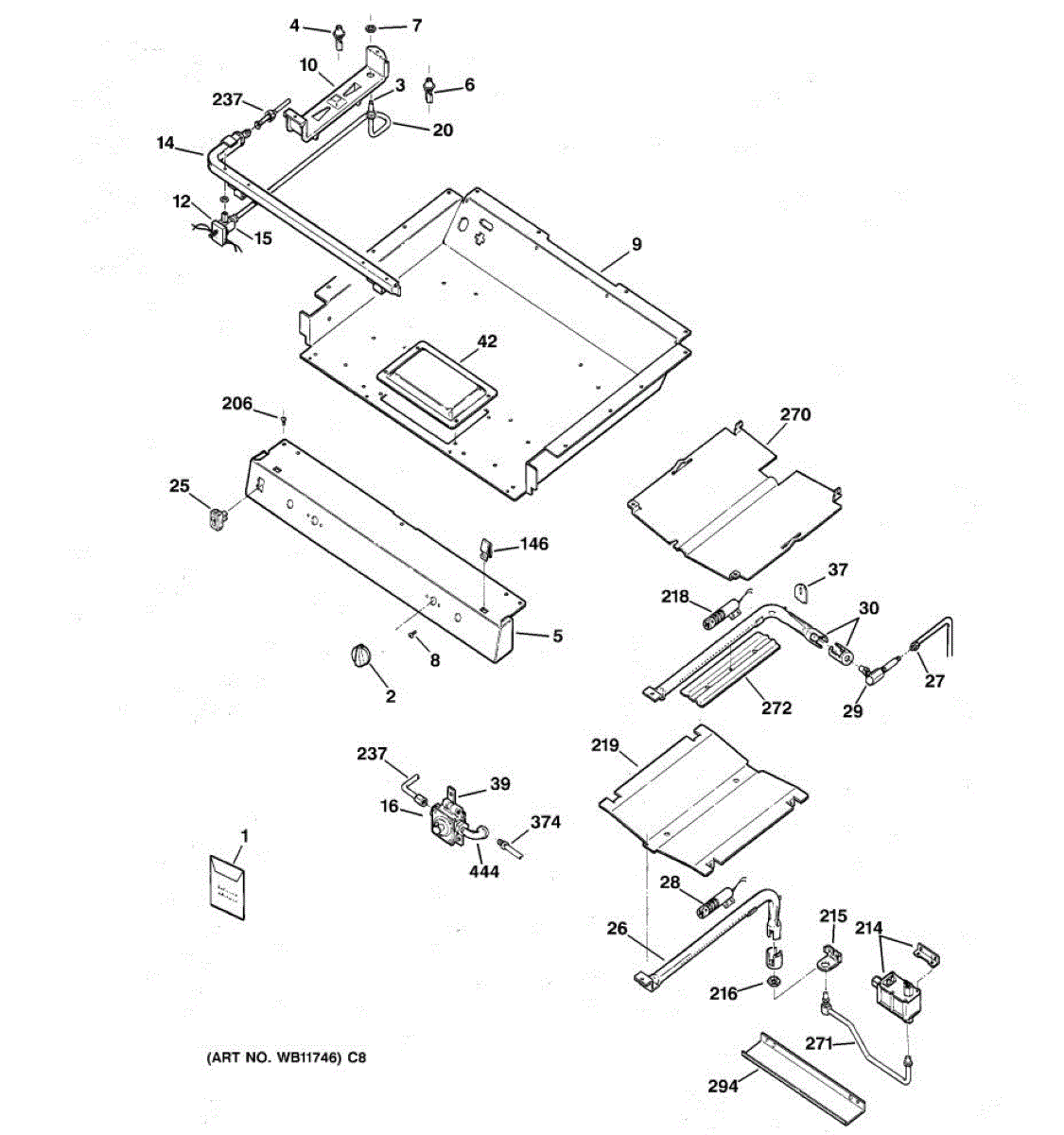

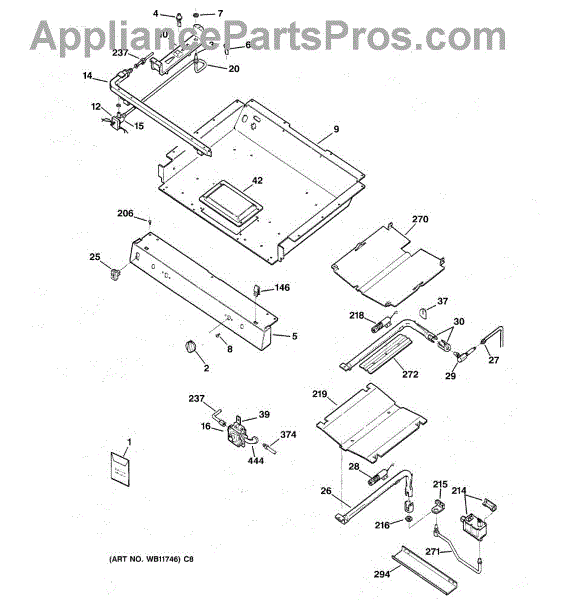

Parts for Ge JGBP35GXA5WW: 01 - Gas Burner Parts

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Replace a broken, cracked, or missing burner control knob on your gas range cooktop. This white knob installs on the control panel to operate burners.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Size: 8 - 32 inch.

Orifice bracket that mounts on your range burner assembly. Replace if the original bracket is cracked, bent, or missing to properly secure the orifice.

Secures and positions the gas orifice in your range burner assembly. Replace if bracket is bent, cracked, or missing to properly mount the orifice.

This valve switch includes a gray hub and sparks at the 7 o'clock position. For the orange hub valve switch order WB24K10002.

Manifold pipe for gas ranges. Distributes gas to burners. Replace if cracked, corroded, or leaking. Connects gas supply to burner valves.

Oven light switch.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Size: 10-32 GXTT FLP.595 S

Oven won't heat but broiler works? This safety valve controls gas flow to bake and broil burners. Common when one side fails but the other still works.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Tube burner supply for gas ranges. Connects the orifice to the burner assembly. Replace if cracked, damaged, or when converting between fuel types.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.
