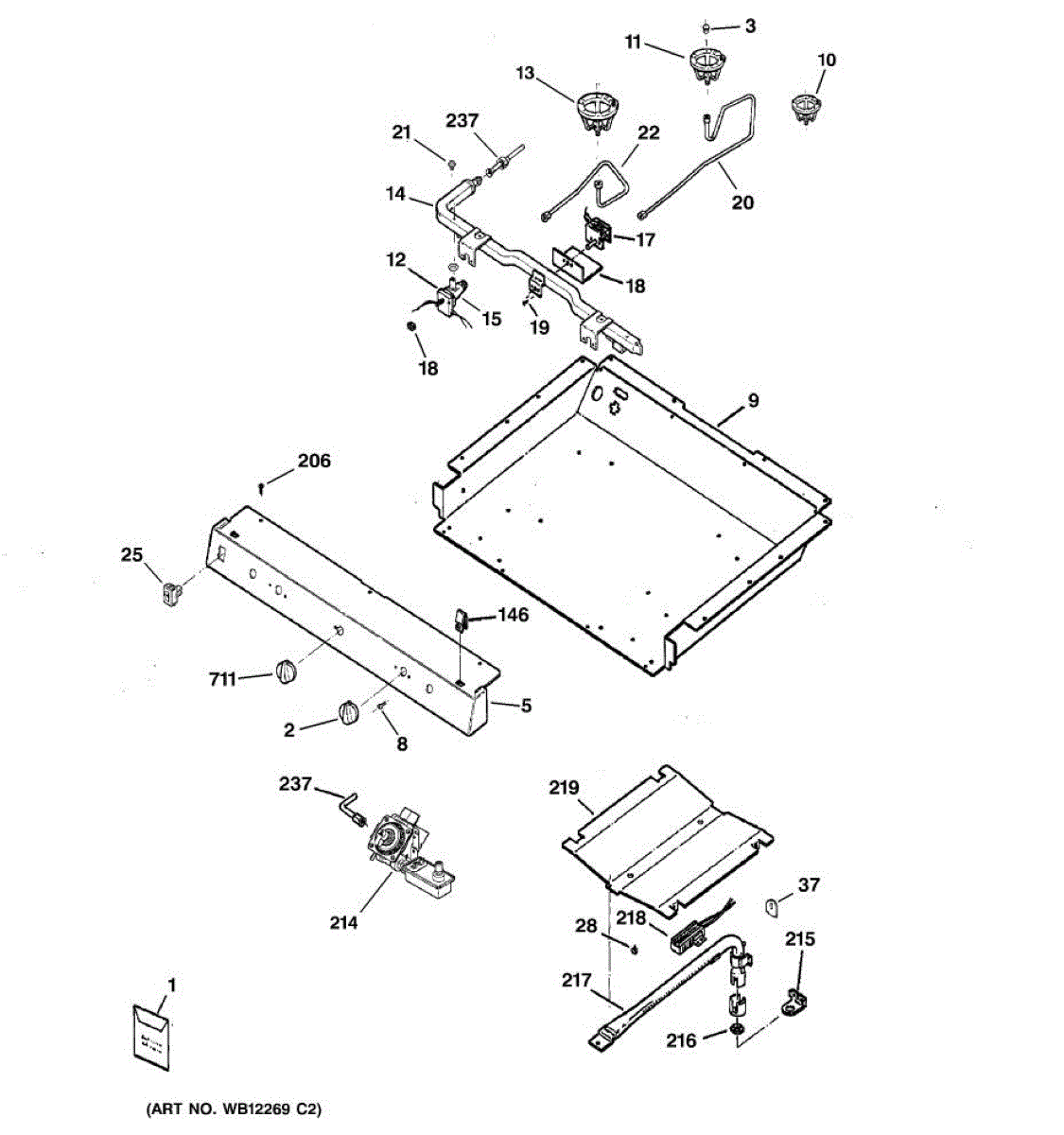

Parts for Ge JGBS23CEA2CC: 01 - Gas & Burner Parts

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Replace your worn, cracked, or missing range control knob. This knob installs on the control panel to operate burners. Essential cosmetic part.

Natural gas. Med 1.50mm

Gas burner orifice spud for range cooktop conversion between LP and natural gas. Replace when converting fuel types or if missing or damaged.

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Size: 8 - 32 inch.

Small

This valve switch includes a gray hub and sparks at the 7 o'clock position. For the orange hub valve switch order WB24K10002.

Fix a burner that won't light, leaks gas, or has a broken control stem. This gas valve regulates flow to one cooktop burner. Moderate DIY repair.

Oven not reaching set temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 30-60 minutes with basic tools.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Rear Burner Tube

Left rear

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.

Replaces cracked, bent, or broken left front burner tube on gas ranges. Delivers gas from valve to burner head. Common wear part needing replacement.

Delivers gas to your range's right front burner. Replace if cracked, bent, or leaking. Installs between valve and burner with wrench. Quick DIY fix.

Burner won't heat or stays on high? This infinite switch controls surface element temperature. Common fix for heat control issues on electric ranges.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Size: 10-32 GXTT FLP.595 S

The Control Valve Assembly is an OEM replacement part for GE ranges. It plays a key role in regulating gas flow within the oven burners to provide consistent, even heating across various temperature settings. The control valve monitors and controls gas pressure to the oven burners during baking and broiling functions.

Causes of a faulty control valve can include grime or debris deposit buildup on the valve or its components over time, wear and tear on seals from regular oven use, or damage to internal valve parts.

Symptoms of a bad control valve assembly include:

• Inaccurate or fluctuating oven temperatures
• Uneven or inconsistent baking and cooking results
• Failure or inability to ignite the oven burners
• Gas leaks near the control valve or burner areas

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

The Oven Bake Burner is an OEM part for GE gas ovens. It is responsible for providing the heat necessary for baking by distributing an even flame across the oven cavity. This burner tube measures approximately 20" in total length and 6" in height. This burner is compatible with both liquid propane (LP) and natural gas (NG) setups, with the settings determined by the regulator.

Causes of a bad oven bake burner can include wear and tear from frequent use, clogging from food debris or grease, or damage from exposure to high temperatures. A malfunctioning burner can lead to uneven cooking and longer baking times.

Symptoms of a bad Oven Bake Burner include:

• Uneven baking or cooking results
• Weak or no flame when the bake function is activated
• Delayed ignition or clicking sounds without ignition
• Unusual smells or visible damage to the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.
