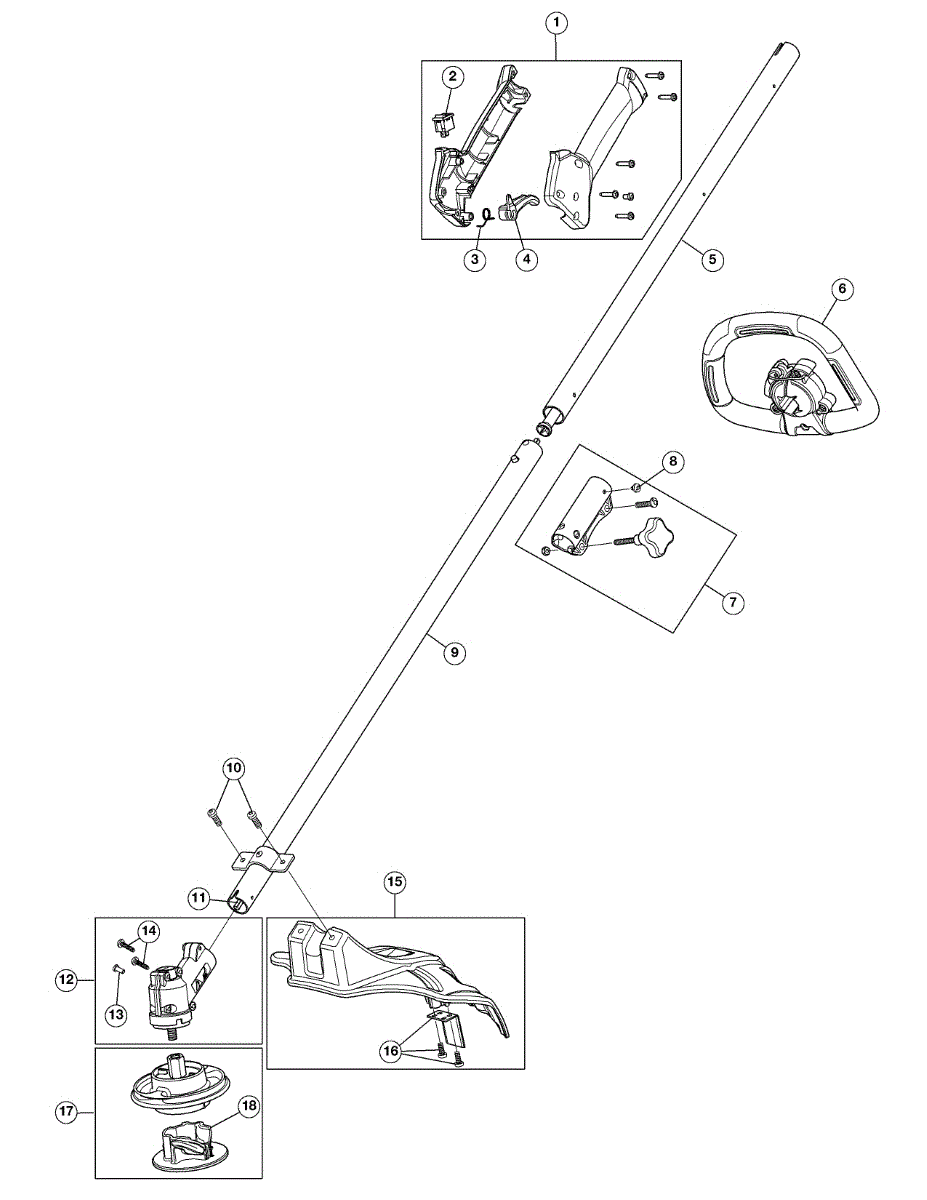

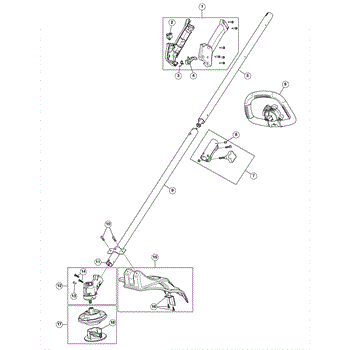

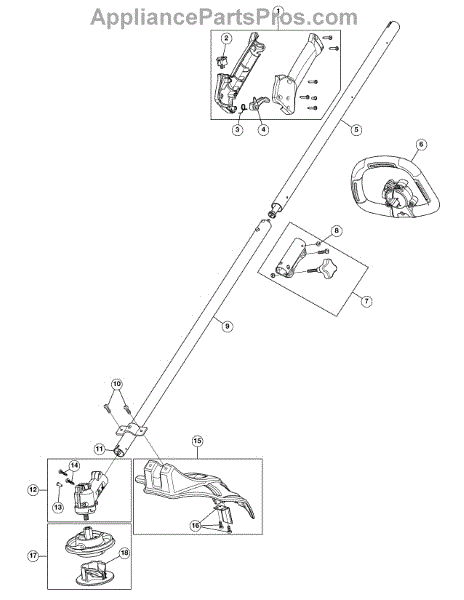

Parts for Craftsman 316.711201: General Assembly Parts

Throttle grip assembly for gas line trimmers. Replaces broken, cracked, or worn throttle grips that affect operator comfort and control during use.

The On/Off Switch is an OEM part for MTD outdoor power equipment. This switch is a crucial component for the safe operation of various types of lawn and garden equipment, including lawn mowers, snow blowers, and other powered tools.

Causes of damage to the On/Off Switch often involve wear and tear from regular use, exposure to harsh outdoor conditions that can corrode or damage electrical components, or accidental impacts that can physically damage the switch.

Symptoms of a bad On/Off Switch include:

• The equipment failing to start
• The machine not stopping when the switch is turned to the off position
• Intermittent power or erratic starting and stopping

This OEM replacement part can be used on trimmers from Craftsman, Yard-Man, Cub Cadet, Bolens, Ryobi, Huskee, Troy-Bilt, MTD, Murray, and Yard Machines.

Replacement throttle trigger spring for gas line trimmers. Installs inside the throttle trigger assembly. Needed when original spring is broken or missing.

Throttle trigger handle for gas line trimmers. Mounts on the main handle shaft to control engine speed. Replace if cracked, broken, or unresponsive.

Upper boom assembly for gas line trimmers. Connects the engine housing to the cutting head. Replace if cracked, bent, or structurally damaged.

Fastening screw for lawn mowers, snow throwers, and trimmers. Secures components together. Replace if stripped, corroded, or missing during repairs.

Fixes trimmer head not spinning or intermittent cutting. Replace the lower drive shaft assembly when vibration increases or head rotation stops. 30-minute repair.

Fastener hardware set for line trimmers. Replace missing, stripped, or damaged screws and nuts that secure internal components. Sold as individual set.

Lower flexible drive shaft for line trimmer attachments. Mounts inside the lower boom housing to drive the trimmer head. Replace when worn round or cracked.

Fix a loose or wobbling trimmer head with this gearbox. Connects the shaft to the cutting attachment for safe, stable operation. Moderate DIY repair.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

Replacement screw for lawn tractors, tillers, and trimmers. Used throughout various assemblies. Replace if lost, stripped, or damaged during repairs.

This OEM replacement part is a blade guard assembly. The blade guard assembly is the plastic piece attached to the side of a lawnmower which directs the grass outward away from the motor. With regular use, a blade guard will eventually begin to wear down. If the blade guard is cracked or broken in a way where it no longer attaches to the mower, it will need to be replaced. Luckily replacing a blade guard is a very simple repair.To replace the blade guard, simply pop the old guard out of its mounting attachment by pulling up and pushing it off of the mower. Once removed, snap the new blade guard into its mounting brackets and make sure it is locked in place. Once secured, it is ready to for use.This genuine replacement part is sold individually and is compatible with MTD brand lawnmowers.

Trimmer won't cut or string won't feed? This head assembly contains the cutting string mechanism. Essential safety and cutting component for gas trimmers.

This trimmer head cover is designed to fit a variety of string trimmers from major manufacturers. The trimmer head cover is the component that covers and protects the cutting head on the trimmer. It is made from durable materials but can become damaged, broken, or lost through wear and tear or impact against other items. Normal use of the string trimmer can create cracks and other forms of breakage, which will require the trimmer head cover to be replaced.The process of replacing the trimmer head cover is simple and takes only a few minutes. The head cover has a set of tabs that can be used to install or remove the part. Make sure the trimmer has been turned off, and the spark plug wire is disconnected. Remove the original head cover and replace it gently with the new replacement part. Replace the spark plug wire before using the trimmer.This is a genuine OEM replacement part that is directly sourced from the manufacturer and sold as an individual part. The trimmer head cover is designed to be used with string trimmers manufactured by Craftsman and MTD.

This tube line is a genuine MTD part, sold individually. This tube line can be used as a replacement part for string trimmers. The function of the tube line for a string trimmer is to spool out of the trimmer head assembly and rotate such that it can cut through grass, hedges, bushes, and other greenery. Over the standard lifespan of an average string trimmer, the tube line might suffer damage that can stop it from rotating and cutting properly. If the tube line is knotted and cannot be unspooled from the head assembly, it can be repaired. However, if this happens frequently or if the problem is not solvable with the existing tube line, the broken or malfunctioning tube line should immediately be replaced by this genuine OEM replacement part before using the string trimmer again. Remember to wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This tube line is compatible with the following brands: MTD and Craftsman.
