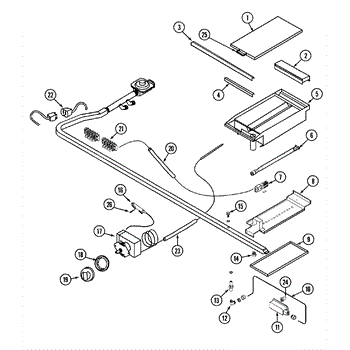

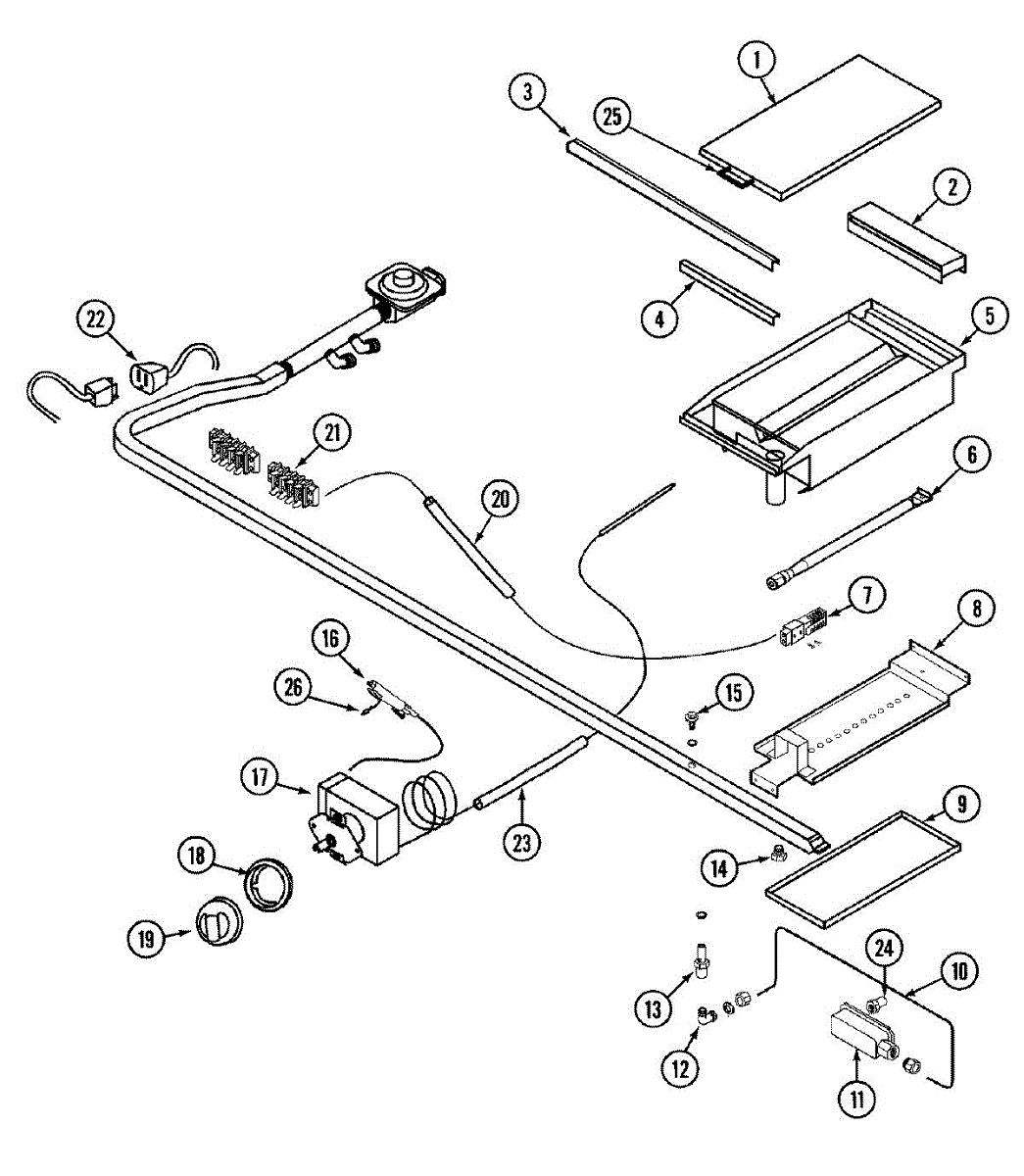

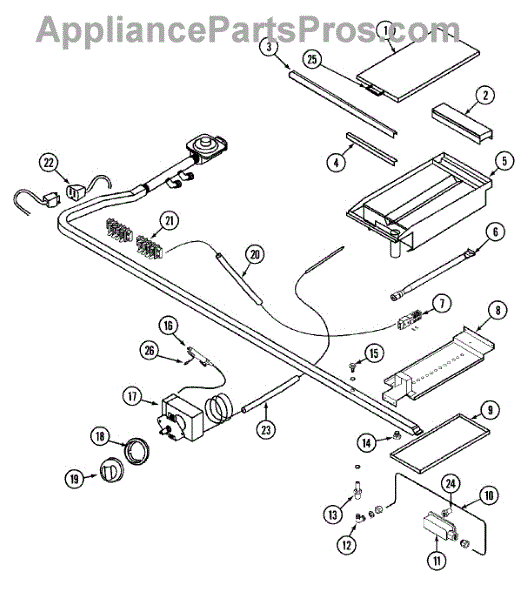

Parts for Jenn-Air PRG3601P: 04 - Griddle Assembly Parts

This hinge screw fastens a hinge to the appliance cabinet or door, helping keep the door aligned and operating smoothly. Replace a missing or stripped screw to restore solid hinge support and reliable closure.

• Secures the hinge to the cabinet/frame or door
• Maintains proper alignment at the hinge point
• Helps ensure smooth opening/closing and effective sealing where applicable
• Common symptoms: loose or wobbly hinge, door sagging/misaligned, poor closure/seal, rattling, or a missing/stripped fastener

• Disconnect power to the appliance; shut off gas if applicable
• Support the door to relieve hinge load before removing or installing screws
• Use the correct driver for your model to avoid stripping fasteners
• Start threads by hand and tighten snugly; do not overtighten

This is a glow bar oven igniter that is used on gas ovens. The purpose of the component is to open up the gas valve and ignite the gas. Once this happens, the glow bar oven igniter will heat up to an extreme temperature and start to glow.If the oven igniter is damaged, it may prevent the oven from heating up. Sometimes the igniter will continue to glow, but no flame will be present. If this occurs, the component will need to be replaced. A screwdriver will be needed for the process. Turn the power off from the oven, access the igniter, and remove it. Next, install the new igniter and secure it with screws. Replace the oven cover plate and racks before returning power to the appliance.The glow bar oven igniter is directly sourced from the manufacturer as an OEM replacement part. It is sold on an individual basis and used with Jenn Air stoves, ranges, and ovens.

This wire harness assembly connects the griddle element/control circuits so the griddle heats and responds to controls. It replaces damaged or worn wiring to restore reliable electrical connection and safe operation. What it does:

• Transfers power and control signals between the griddle element and the appliance wiring
• Common fix when the griddle won't heat or heat is intermittent
• Replaces frayed, melted, or burned wiring that can cause shorts or poor contact
• Ensures correct connector fit and routing for proper griddle operation

• One wire harness assembly as shown

• Disconnect all power before attempting service to avoid shock or injury
• Inspect connectors and routing; replace the harness if insulation or terminals are damaged
• Match connector ends and routing to the OEM wiring diagram during installation

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.
