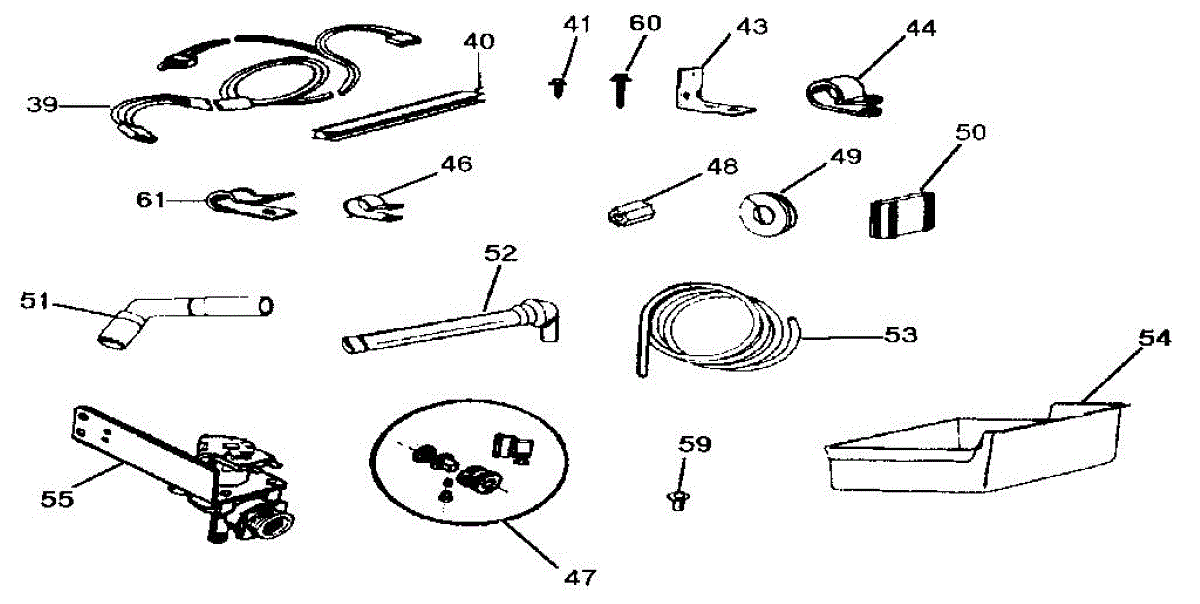

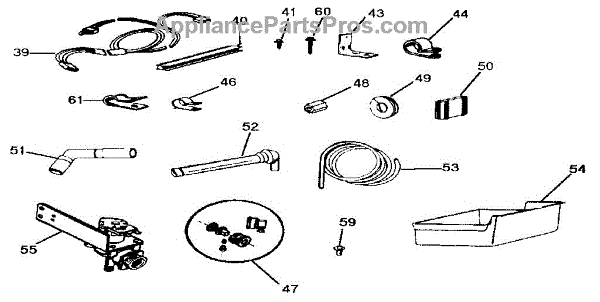

Parts for Kenmore 253.9308784 (2539308784, 253 9308784): Ice Maker Installation Parts

Wire harness for ice makers and refrigerators. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connectors are broken.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Secures water, drain, and refrigerant tubing to prevent movement and wear. Replace if tubes are loose, vibrating, or damaged. Verify fit with model number.

Specs: 7/16 x 20

Water supply tube for ice makers and refrigerators. Connects water line to ice maker assembly. Replace if cracked, leaking, or damaged. Essential plumbing part.

Water fill tube that directs water from the supply line into the ice maker. Replace if cracked, frozen, or the connection point is damaged or broken.

1/4"diameter - 93" long, plastic, cut-to fit

Replacement ice bin that collects and stores ice cubes from your freezer ice maker. Needed when original bin is cracked, broken, or missing.

Water tube insert sleeve for refrigerators. Fits inside water line connections to prevent leaks. Replace if cracked, damaged, or missing.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

This is a hanger-mount screw used to secure interior refrigerator components such as deli/meat pan hangers and shelf supports. It provides a simple replacement to restore secure mounting and proper shelf alignment. What it does:

• Secures hanger mounts or support brackets that hold deli/meat pans or shelves in place
• Replaces missing or stripped screws that cause loose or sagging shelves
• Restores proper fit so stored items sit level and components do not shift
• Works where a #8 x 1/2 in pan-head fastener is specified

• One screw

• Disconnect power or unplug the appliance before performing any service
• Use the correct sized screwdriver to avoid stripping the pan head
• Thread carefully and tighten until snug; do not overtighten to prevent damage to the mounting surface

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components
