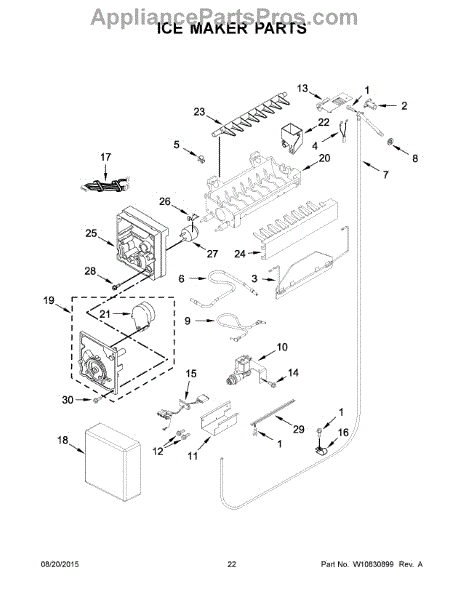

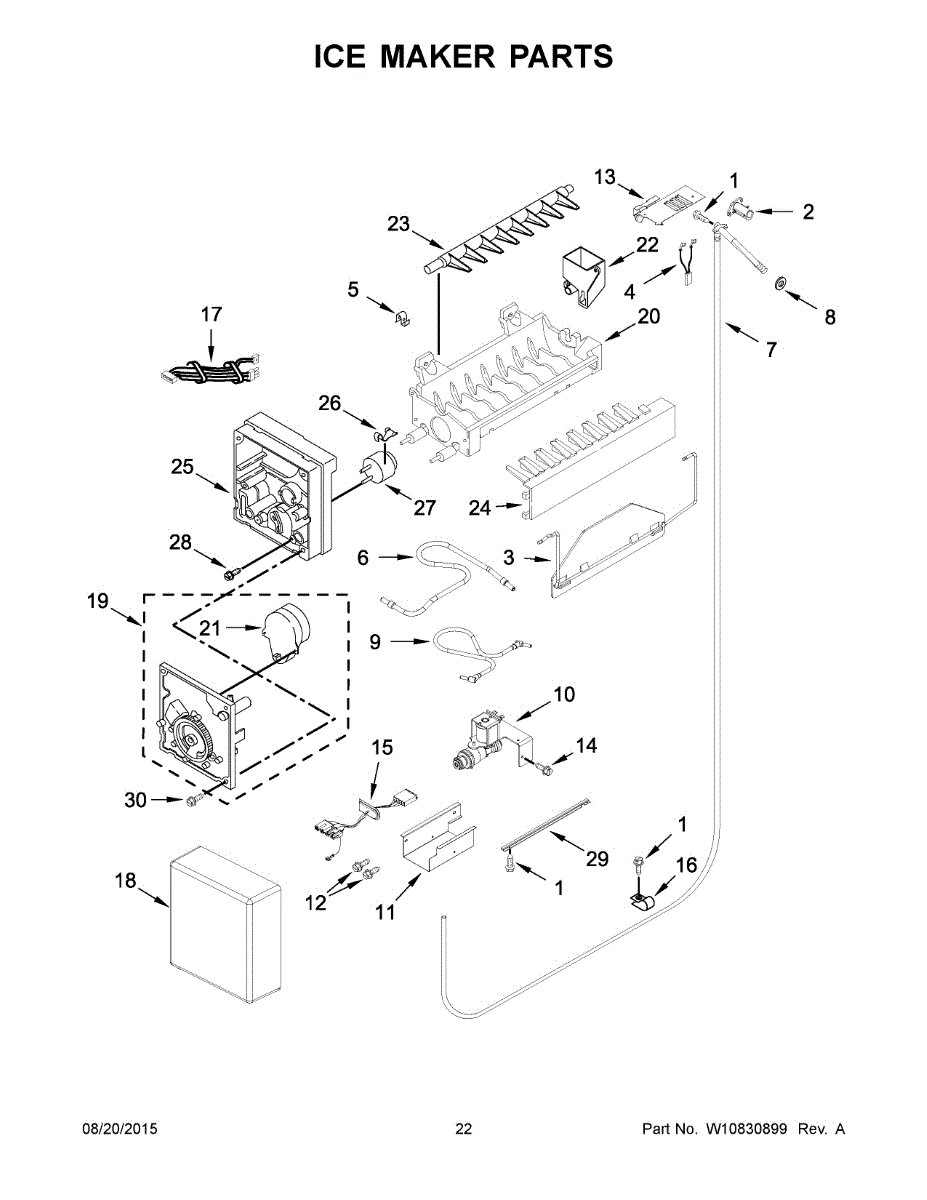

Parts for Kitchenaid KBFN502EBS01: 12 - Ice Maker Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Icemaker clogs or stops making ice? This heated fill tube directs water from the inlet valve to your icemaker. Moderate DIY replacement fixes flow issues.

Ice maker won't stop making ice? The shut off arm senses when the bin is full and stops production. Easy 10-minute DIY fix—just snap into place.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Refrigerator water tube that delivers water from the supply line to the dispenser or ice maker. Replace if cracked, leaking, or disconnected.

Fix water dispenser leaks or no water flow with this refrigerator dispenser water tube. Routes water from valve to dispenser. Direct fit replacement.

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

This water tube replaces a damaged or leaking refrigerator water line to restore proper water flow to the dispenser or ice system. Durable molded tubing routes water between the valve and internal components without kinking. What it does:

• Directs water from the inlet valve to the dispenser/ice assembly
• Restores normal water flow when cracked or pinched tubing reduces output
• Stops leaks and puddling caused by split or brittle lines
• Helps prevent contamination from damaged or degraded tubing

• One molded water tube

• Shut off the refrigerator and the water supply before starting
• Inspect and replace any worn fittings or clamps when reinstalling
• Hand-tighten connections, then check carefully for leaks after restoring water

If your refrigerator isn't dispensing water or making ice, or you see leaks behind the unit, the water inlet valve often fails. Moderate DIY repair.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This wire harness routes power and signals between the appliance control and its components, restoring reliable electrical connections so switches, sensors and motors receive the correct inputs. Use the harness when wiring is damaged, burned or intermittent. What it does:

• Provides factory-style electrical connections between control board and components
• Replaces damaged, frayed or corroded wiring that can cause intermittent operation
• Restores power and signal paths to switches, motors, valves or lights
• Helps stop failures such as no-start, unresponsive controls, or components not running

• Disconnect power to the appliance before starting any repair
• Match connectors and routing to the original harness; do not force connectors
• Secure harness with existing clips or brackets to avoid chafing and heat exposure
• Inspect surrounding insulation and connectors; replace if visibly damaged

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Fix refrigerator power or control issues with this wire harness. Replaces damaged wiring that causes electrical faults or component failures. Direct fit.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix water leaks or misdirected flow in your ice maker with this water fill cup. Channels water during fill cycles to prevent spills. Easy DIY fix.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Fix ice dispensing issues with this refrigerator ice crusher auger assembly. Solves problems with crushed ice not dispensing or jamming in the chute.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement screw secures panels, brackets, and components inside your refrigerator. Needed when original fastener is stripped, missing, or lost.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

No ice cubes being made? This refrigerator icemaker assembly freezes, ejects, and deposits ice cubes into your freezer bin, restoring automatic ice production.

Water line kit for connecting ice makers to household water supply. Includes copper tubing, valve, and fittings for installation under kitchen sink.
