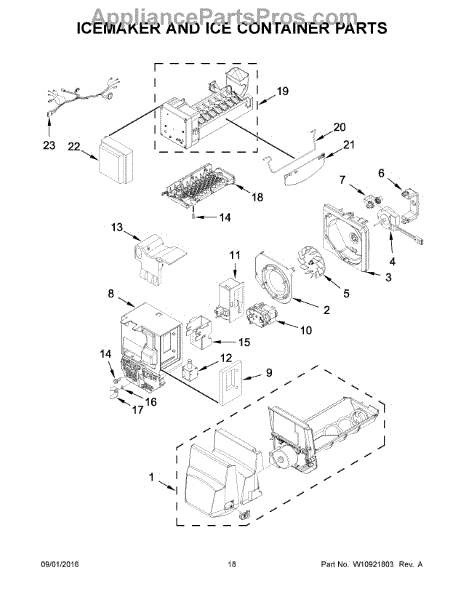

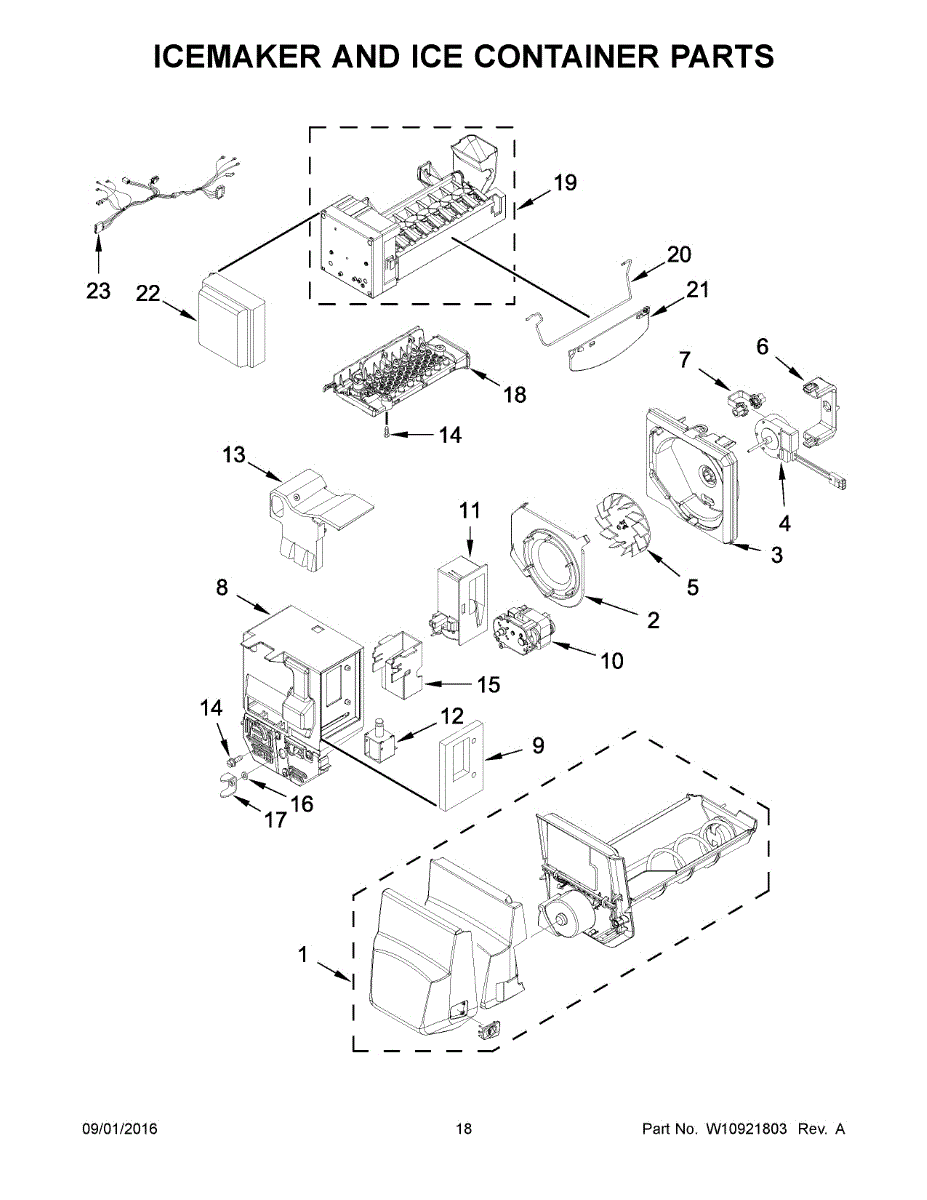

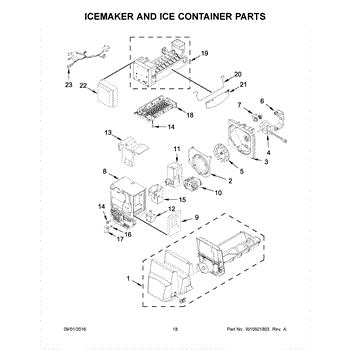

Parts for Whirlpool WRX735SDBE01: 10 - Icemaker And Ice Container Parts

Ice won't dispense or jams in chute? A cracked or damaged ice container assembly may be the cause. This bin collects and stores ice. Easy DIY repair.

Plug insert for refrigerators. Installs in cabinet or frame holes. Replace if cracked, broken, missing, or worn to restore clean appearance.

Blower housing that channels airflow from the motor into ducts. Replace if your fan scroll is cracked, warped, or missing to restore proper air circulation.

The Motor-Evaporator is an OEM part for Whirlpool refrigerators. It powers the cooling system responsible for maintaining proper internal temperatures. The evaporator motor functions by circulating refrigerant through coils located behind the refrigerator liner.

Symptoms of a bad motor evaporator include:

• Fluctuating interior temperatures
• Inability to achieve desired cooling levels
• Ice buildup caused by inefficient airflow
• Unusual noises or vibrations from the cooling system

Causes of failure relate to wear and tear of internal motor components over time. Replacement ensures optimized temperature performance through consistent operation of refrigerant circulation.

This OEM Whirlpool part is also compatible with Kenmore, Maytag, Jenn-Air, and some KitchenAid models.

Refrigerator not cooling evenly or running too warm? A worn blower wheel disrupts airflow, causing uneven temperatures and poor cooling performance.

Rubber mounting grommet cushions components and reduces vibration in refrigerators. Replaces worn, cracked, or missing grommets for secure positioning.

This ice box divider fits inside the refrigerator's ice container to separate sections and guide ice to the dispenser. Replacing a cracked or missing divider helps prevent jams and keeps cubed or crushed ice dispensing the way it should.

• Separates the ice bin interior and channels ice toward the auger/dispenser path
• Helps maintain proper cubed/crushed ice selection and flow
• Reduces spillover and clumping that can block dispensing
• Common symptoms of failure: poor or no ice dispense, inconsistent cubed/crushed output, or ice overflowing inside the bin

• Disconnect power and turn off the water supply before servicing
• Remove the ice bin, empty remaining ice, and locate the internal divider
• Transfer any reusable hardware/clips and install the new divider in the same orientation
• Reinstall the bin, restore power, and test both cubed and crushed dispense

Seals the damper opening to prevent air leakage between compartments. Replace when worn to restore consistent airflow and stable temperatures.

Ice dispenser not working or only dispensing sometimes? The auger motor powers ice ejection from the storage bin. DIY-friendly repair in under an hour.

Refrigerator warm but freezer cold? The damper control regulates airflow between compartments. Quick 10-15 minute DIY fix. Video guide included.

This ice dispenser solenoid assembly engages the dispenser mechanism to switch between crushed and cubed ice. A worn or failed solenoid can prevent the selector from changing modes or stop ice from dispensing smoothly.

• Actuates the ice bucket/crusher selector to allow cubed or crushed ice
• Failure may cause only one ice option to work, no change between modes, or intermittent dispensing
• Can resolve loud clicking/buzzing from the dispenser area when switching options
• Helps restore proper ice dispensing performance

• Disconnect power before servicing the dispenser area
• Access is typically through the freezer door dispenser chute/ice bucket area
• Note actuator linkage orientation during removal to ensure correct reassembly
• After installation, test both crushed and cubed selections

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Secures internal panels and components in your refrigerator. Replaces worn, broken, or missing brackets to restore proper alignment and support.

This spacer maintains alignment between the refrigerator door's insulation and outer panel. Replace if cracked, broken, or missing to restore proper door assembly.

Refrigerator air baffle assembly fixes uneven cooling and ice maker issues caused by poor airflow. Slides into place behind ice maker housing.

Ice maker not making ice or leaking water? This complete ice maker assembly fixes frozen, jammed, or non-ejecting ice issues. DIY-friendly replacement.

Ice maker won't stop making ice or won't start? This shutoff arm controls ice production by sensing bin level. Simple DIY fix in under 30 minutes.

Ice maker overflowing or not stopping? This shut-off arm extension clips onto the bail arm to help the bin detect when full. Simple 5-minute fix.

Replace your refrigerator's front cover panel if it's cracked, damaged, or missing. This exterior cosmetic part restores your appliance's appearance.
