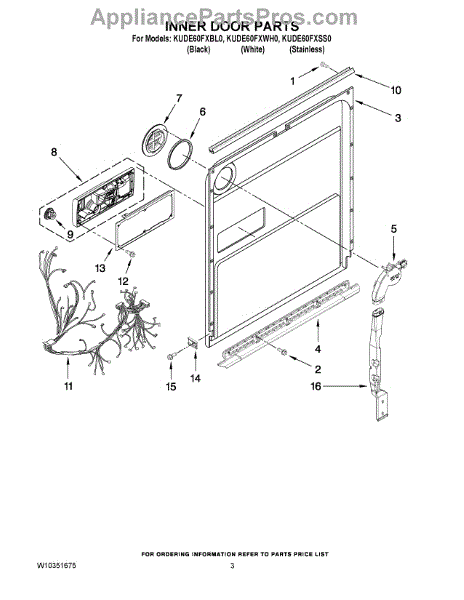

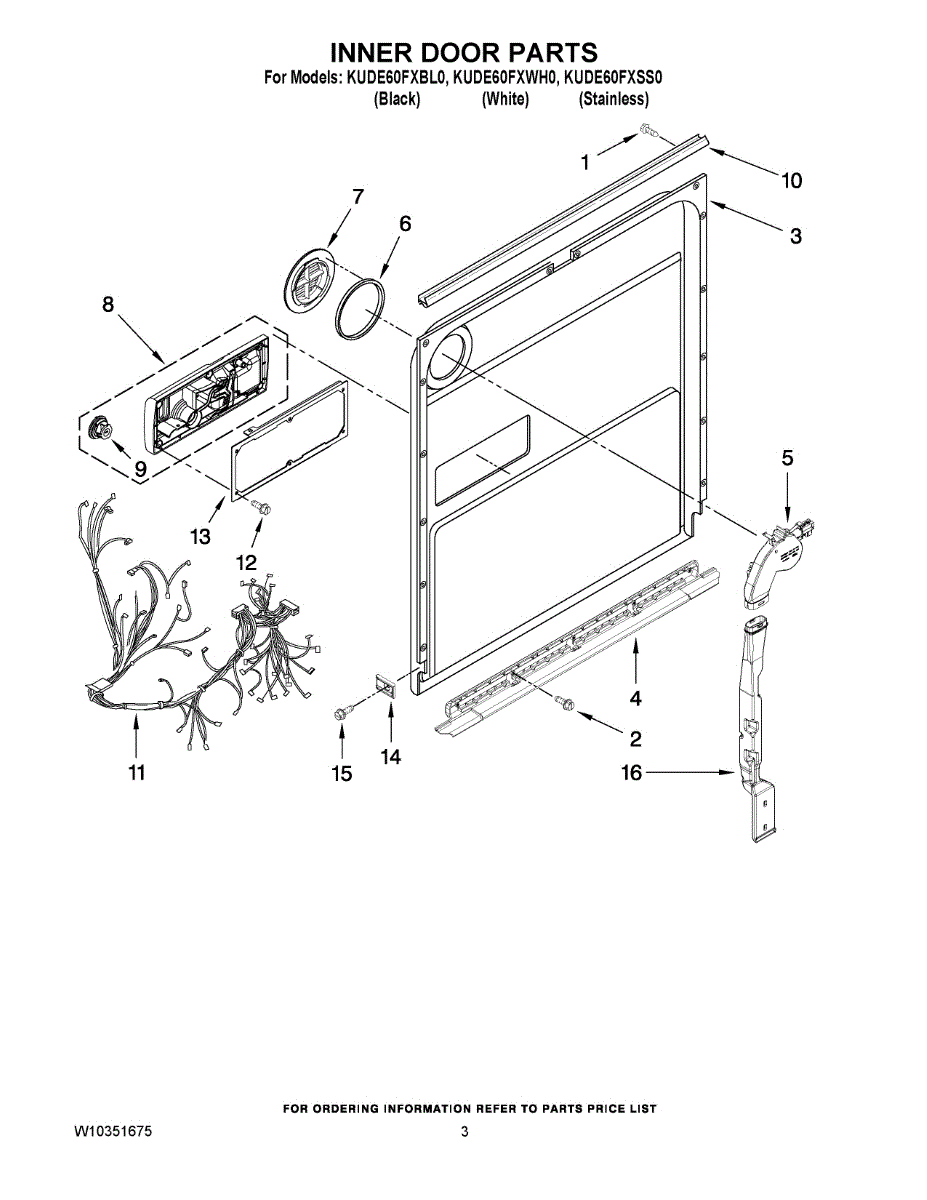

Parts for Kitchenaid KUDE60FXBL0: 03 - Inner Door Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fixes loose panels, rattling doors, or wobbly components caused by stripped or missing screws. Secures brackets, covers, and mounting hardware. Easy DIY.

This factory-specified screw secures panels, brackets, and internal components in your appliance. Replacing worn or missing hardware restores a tight fit to help reduce vibration, noise, and premature wear.

• Fastens sheet metal, brackets, or plastic parts as designed by the manufacturer
• Helps maintain alignment and reduce vibration/rattling
• Direct replacement for stripped, corroded, or missing screws
• Common signs: loose panels or trim, shifting components, screw won't tighten

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
• Replace one-for-one in the original location per service information

Replaces the interior door panel of your dishwasher. Needed when original panel is dented, cracked, or damaged. Restores door appearance and integrity.

Dishwasher lower door seal prevents water leaks at the door base. Replace if you notice dripping or moisture during wash cycles. Confirm fit with your model.

Steam escaping from door or dishes not drying? The vent assembly expels heat and moisture during cycles. Moderate DIY repair, takes about 15 minutes.

Seals the dishwasher air vent to prevent water leaks during operation. Replace if you notice dripping under the vent or wet insulation behind the panel.

Trim piece that frames the vent opening on your dishwasher door. Replace if the original bezel is cracked, loose, or missing to restore a finished look.

Dispenser won't latch or close? This detergent dispenser releases soap at the right time. Moderate DIY repair requiring inner door panel removal.

Covers and seals the rinse aid compartment to prevent leaks and ensure proper dispensing. Replace if damaged, melted, or missing. Verify fit with your model.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replace your dishwasher's inner door seal to stop leaks and contain wash water. Installs between door liner and panel. Confirm fit with your model number.

Replace your dishwasher's internal wire harness if connectors are melted, wires are brittle, or insulation is damaged from overheating or wear.

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

If your detergent dispenser is loose or falling off, this bracket secures it to the door panel. Moderate DIY repair requiring door disassembly.

Barrier guard for dishwasher inner door panel. Separates and protects components, keeping wiring properly aligned. Replace if cracked, broken, or missing.

10-32 thread machine screw secures panels, brackets, and internal components. Replace missing, stripped, or damaged fasteners to restore solid fit.

Directs steam and moisture out during the drying cycle. Replace if dishes stay wet or water drips from vent. Confirm fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
