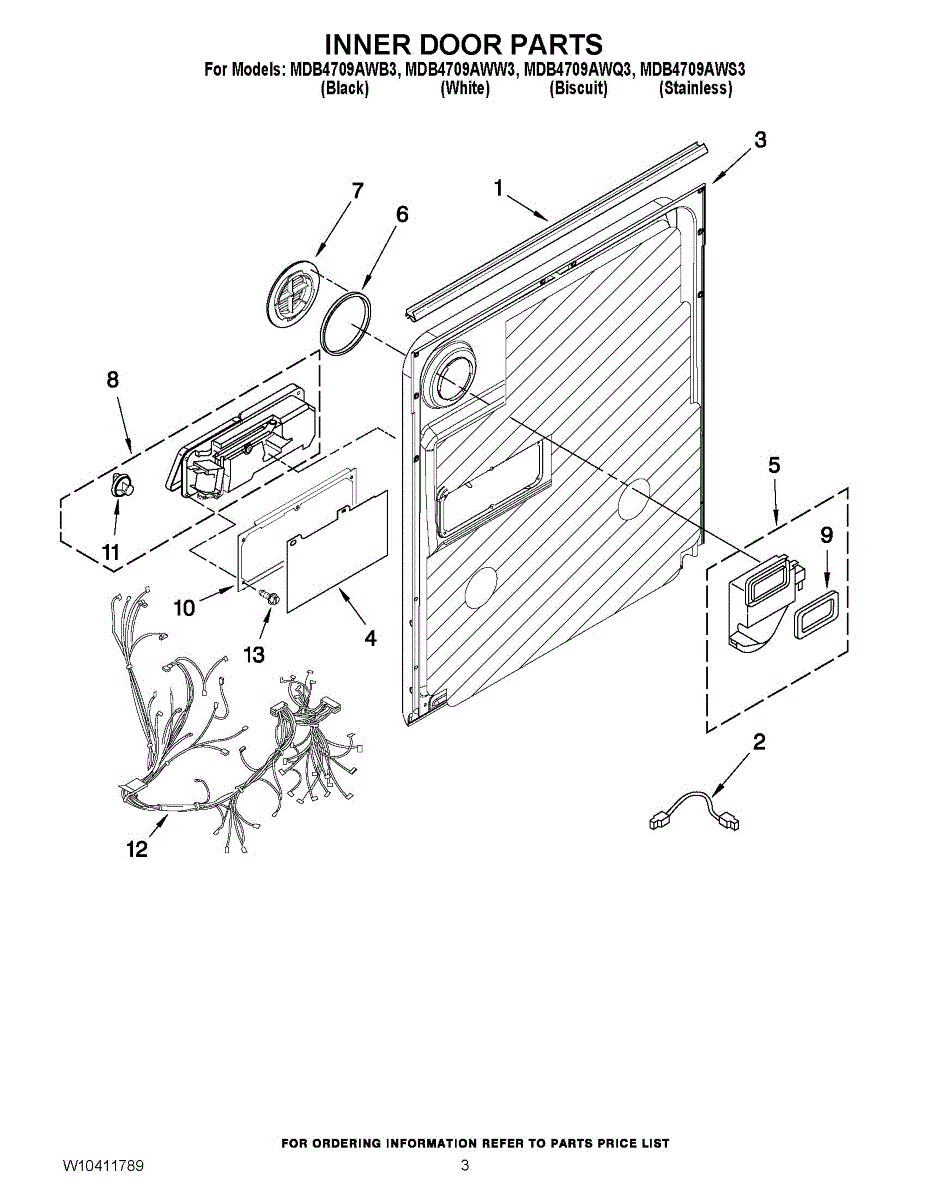

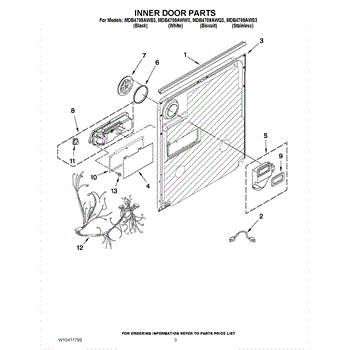

Parts for Maytag MDB4709AWS3: 03 - Inner Door Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replace your dishwasher's console door seal when you notice water leaks or gaps between the console and door. Verify fit with your model number.

This inner door plastic is the interior panel for the appliance door that supports latch and hinge hardware and helps maintain the door seal. Replacing a cracked or damaged inner panel restores proper door fit and function. What it does:

• Supports the door assembly and secures internal components; a damaged panel often causes a loose or rattling door.
• Provides mounting points for the latch and hinge hardware; symptoms include a door that won't latch or closes unevenly.
• Helps maintain the appliance seal and thermal integrity; symptoms can include noticeable air/heat leakage or reduced performance.
• Restores the interior appearance of the door when the original plastic is cracked, warped, or broken.

• Disconnect power to the appliance before beginning work and fully open the door; support the door to prevent it from dropping when fasteners are removed.
• Remove the required screws/fasteners and lift out the inner panel carefully; wear safety gloves and eye protection if glass is present.
• Check hinge and latch alignment during reassembly; replace any damaged fasteners and avoid overtightening screws which can crack the plastic.

Fix a broken or missing dishwasher detergent dispenser cover. This shield protects the dispenser assembly and restores a finished look to your unit.

This active vent assembly controls airflow from the dishwasher during and after a cycle, releasing humid air at the right time for better drying. Replacing a faulty vent can reduce lingering moisture and steam escaping from the door.

• Regulates and directs moist air out of the tub during the dry portion of the cycle
• Closes during wash to help contain water and heat inside the dishwasher
• Helps reduce interior condensation and improve overall drying results
• Common failure symptoms: dishes not drying, moisture remaining after the cycle, steam escaping at the top of the door, or unusual noise from the vent area

• Disconnect power at the breaker before servicing; allow the unit to cool
• Access is typically through the inner door panel; retain and reuse mounting hardware as required
• Inspect and correctly seat the vent seal to prevent steam leaks
• After installation, run a test cycle to check for proper vent operation and sealing

Seals the dishwasher air vent to prevent water leaks during operation. Replace if you notice dripping under the vent or wet insulation behind the panel.

Covers and directs dishwasher exhaust while keeping the vent opening protected. Replace if cracked, discolored, or loose. Verify fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix a detergent dispenser door that won't open or latch properly. This dishwasher dispenser assembly replaces broken latches and leaking units.

Seals the front edge of your dishwasher door to contain water and steam. Replace when you notice leaks or drips at the door opening. Confirm fit.

If your detergent dispenser is loose or falling off, this bracket secures it to the door panel. Moderate DIY repair requiring door disassembly.

Leaking rinse aid or spotty dishes? Replace your dishwasher's rinse aid dispenser cap to seal the reservoir and restore proper dispensing. Simple DIY fix.

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.
