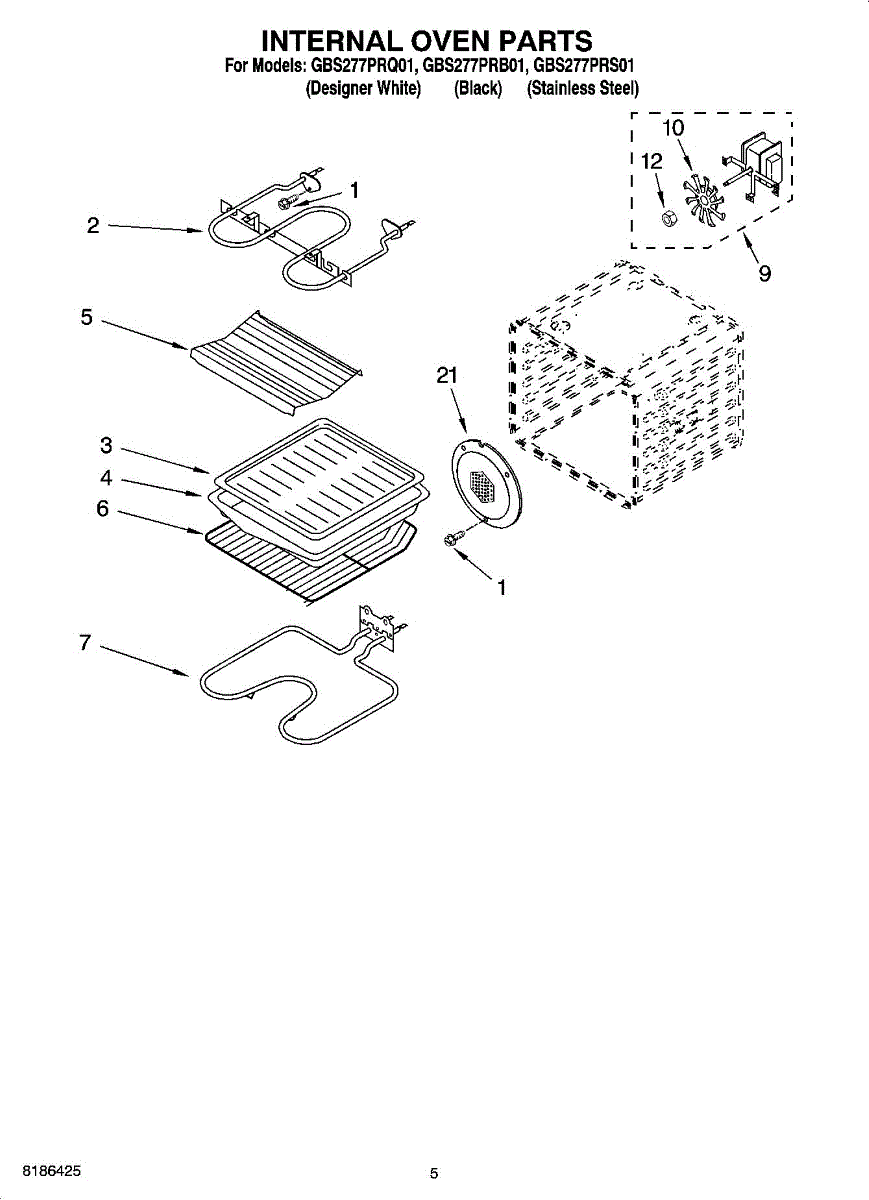

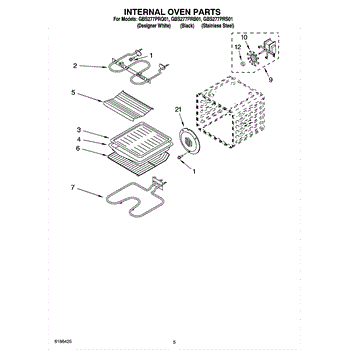

Parts for Whirlpool GBS277PRS01: 04 - Internal Oven Parts

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Oven not heating or broiling? A failed broil element often shows blistering or breaks. DIY repair in under 30 minutes with a screwdriver.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

The Oven Heating Element is an OEM replacement part for Whirlpool ovens. It is a crucial component responsible for generating the heat necessary for baking, roasting, and broiling in the oven cavity.

Causes of a bad oven heating element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

Symptoms of a bad oven heating element:

• Oven not heating up properly or failing to reach the set temperature
• Uneven heating or hot spots within the oven cavity
• Visible damage or breaks in the heating element coil
• Unusual smells or burning odors emanating from the oven

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.
