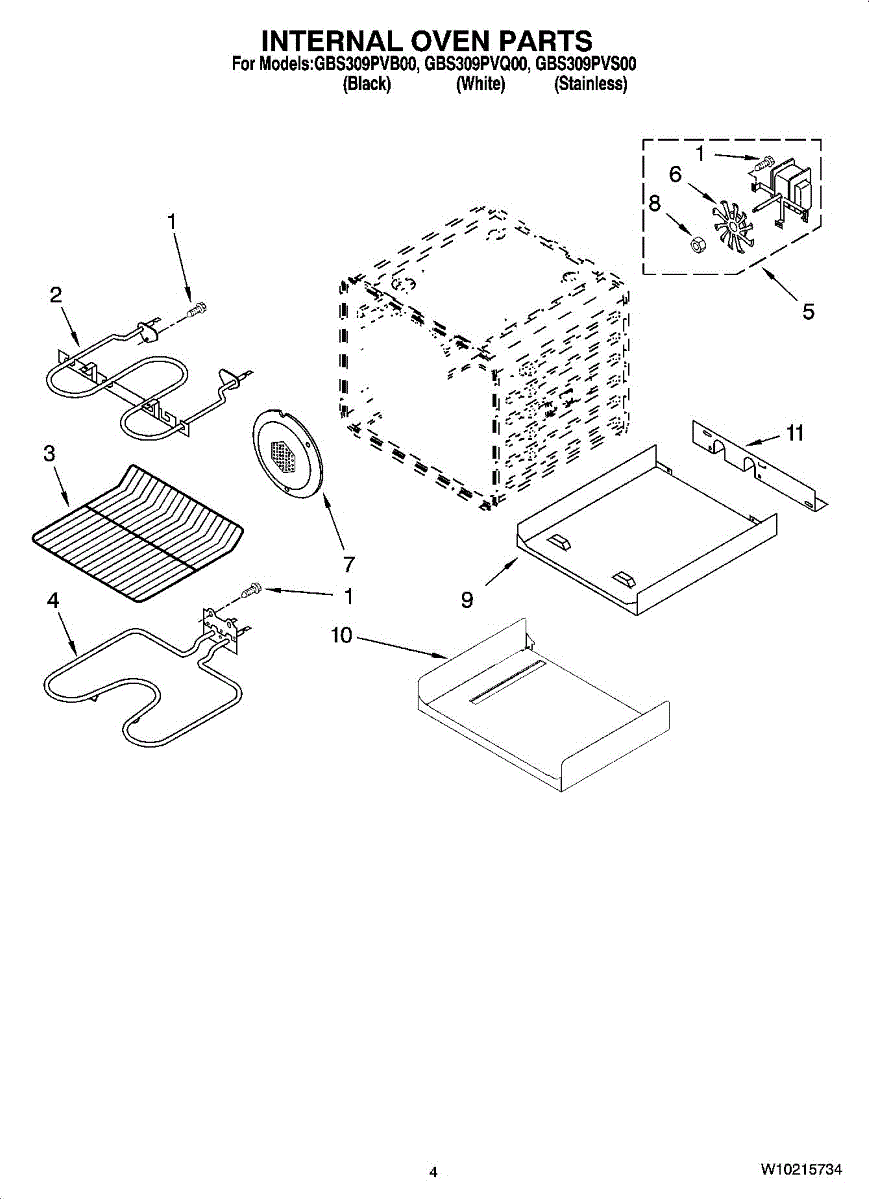

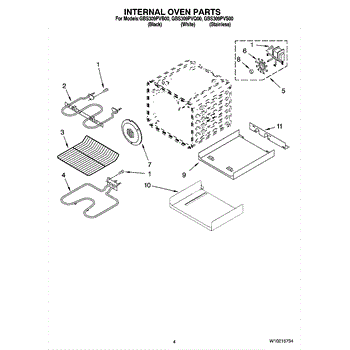

Parts for Whirlpool GBS309PVB00: 03 - Internal Oven Parts

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Oven not browning or broiling? A faulty broil element won't heat up. Easy DIY fix—disconnect power, remove screws, swap wires. Video guide included.

Replace your worn, warped, or missing oven rack. This durable rack installs inside your oven cavity to hold cookware and allow proper air circulation.

Oven not heating evenly or convection mode not working? This rear convection element restores even baking and roasting. 20-minute DIY repair.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

Oven not reaching temperature or taking too long to preheat? A failed bake element is often the cause. Moderate DIY repair, 1-2 hours with rear access.

Replaces the bottom cover panel that protects your wall oven's hidden bake element. Needed when original is cracked, stained, warped, or damaged.
