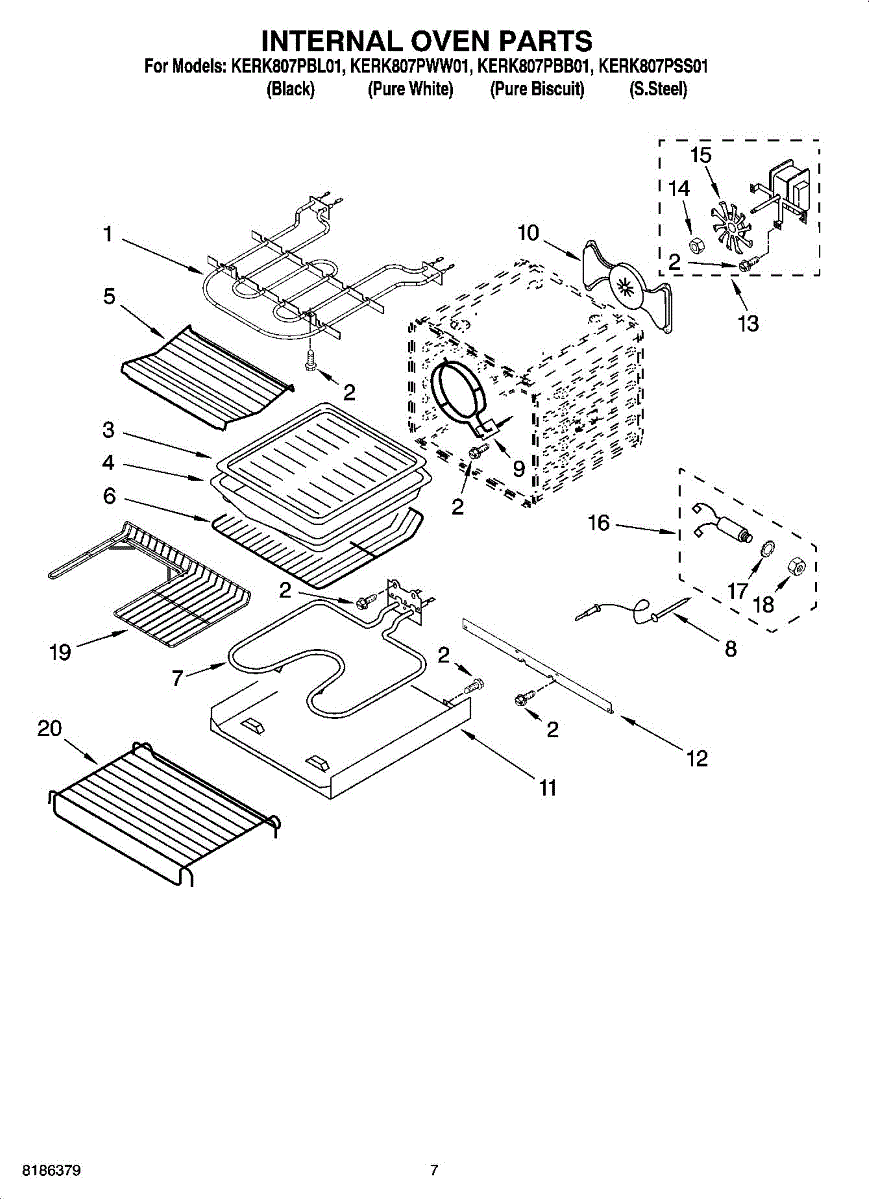

Parts for Kitchenaid KERK807PBL01: 05 - Internal Oven Parts

Broiler not heating or only outer ring works? This broil element provides high heat for even browning. Easy DIY fix—disconnect power and test continuity.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Replace your worn, warped, or missing oven rack. This durable rack installs inside your oven cavity to hold cookware and allow proper air circulation.

Oven won't heat or bake properly? This bake element kit restores even heating for baking and roasting. Located at oven bottom. DIY repair under 1 hour.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

Oven not heating evenly or convection mode not working? This rear convection element restores even baking and roasting. 20-minute DIY repair.

Replacement convection oven baffle for electric ranges. This metal heat spreader directs airflow inside the oven cavity. Order now if yours is warped or damaged.

Replaces the bottom cover panel that protects your wall oven's hidden bake element. Needed when original is cracked, stained, warped, or damaged.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

This replacement rack insert helps organize and protect dishes and utensils inside the dishwasher, restoring proper spacing and support for safe cleaning. It fits into the rack to prevent items from shifting or knocking during cycles. What it does

• Replaces a worn, broken, or missing rack insert to restore proper item support and spacing
• Holds dishes, glasses, or utensils in place to reduce chipping and clattering during wash cycles
• Keeps small items from tipping or falling through the rack grid
• Compatible with racks designed to accept this style of insert

• One rack insert

• Install by snapping or sliding the insert into the designated rack slots; no special tools generally required
• Inspect rack rails and surrounding clips for damage before installing
• Handle with care to avoid pinching; wear gloves if edges are sharp
