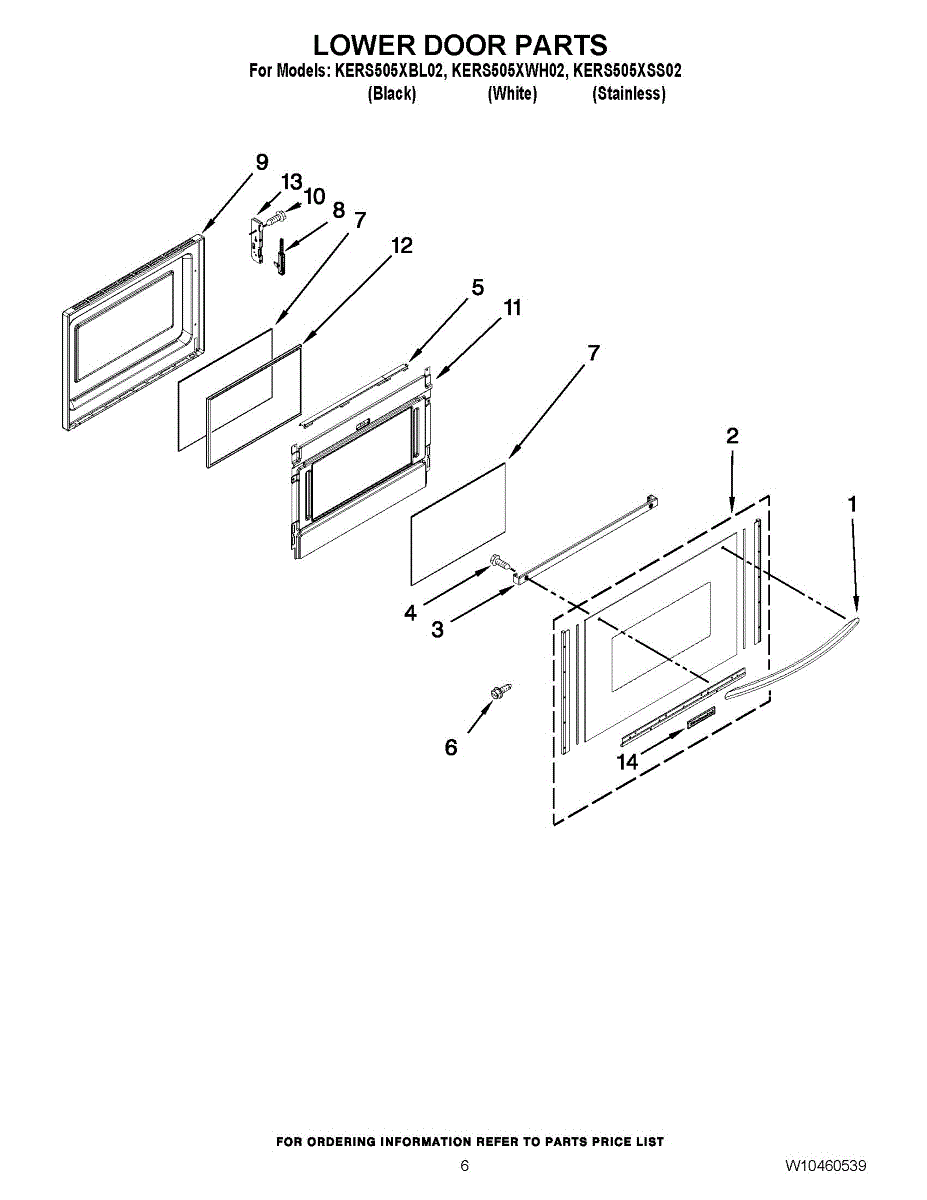

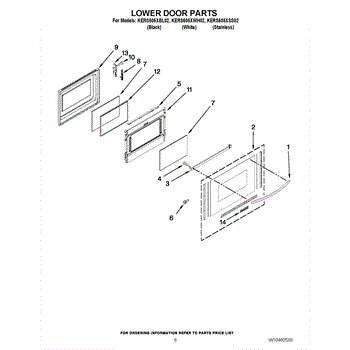

Parts for Kitchenaid KERS505XBL02: 05 - Lower Door Parts

White range door handle for opening and closing your oven. Replace this cosmetic part if your current handle is cracked, broken, discolored, or missing.

Black range door handle for your oven. Replace a cracked, broken, or missing handle. Mounts to the front of the oven door for opening and closing access.

Stainless steel door handle for gas ranges, ovens, and microwaves. Replace your cracked, loose, or broken handle to restore appearance and functionality.

Color: White

Color: Stainless

Mounting bracket for range installation. Secures appliance to cabinet or wall. Replace if bracket is bent, broken, or missing during installation.

Replacement screw secures door handles, panels, and brackets on your range or oven. Install when original screws are stripped, missing, or damaged during repairs.

Replace your range oven door window frame if cracked, broken, or missing. This structural component holds the glass in place on the oven door assembly.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Inner glass pane for oven door window. Installs inside the door frame. Replace if shattered, cracked, or broken to restore safe viewing and thermal insulation.

Replace your right oven door hinge to restore proper alignment and smooth operation. Fixes sagging doors and gaps for a secure seal. Confirm fit by model.

Replace your oven's left door hinge to restore smooth opening and closing. Fixes door sag, misalignment, and sealing issues. Verify fit with your model.

Size: 8-18 x 3/8 inch.

Secures the control panel on your range. Replace this retainer if it's cracked, broken, or missing to keep the panel properly mounted and aligned.

Replacement hinge receiver for range oven doors. Secures the door hinge to the frame. Replace if cracked, broken, or worn to restore proper door support.

Replacement oven door hinge receiver for ranges. Mounts to the oven frame to secure the door hinge. Order a new receiver if yours is cracked or broken.

Color: White

Color: Black

Color: Stainless
