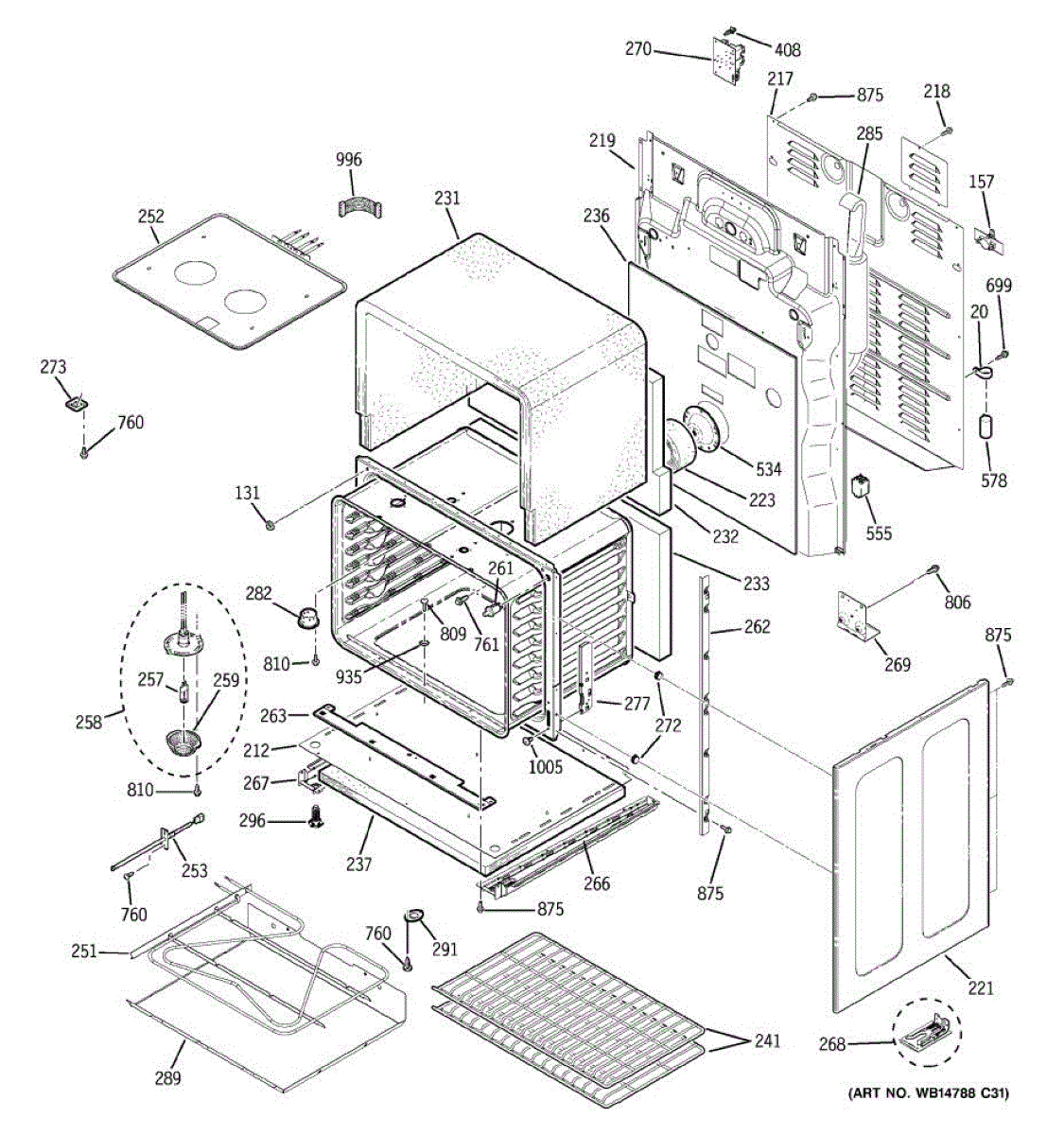

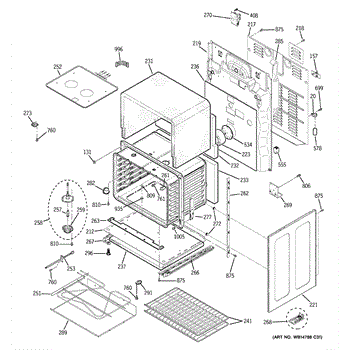

Parts for Ge PB975DT1BB: 04 - Lower Oven Parts

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

White side panel for electric ranges. Replaces cracked, scratched, or rusted exterior panels. Restores cabinet appearance and protects internal parts.

Replace a cracked, bent, or missing oven rack. Slides on existing side rails to provide level support for pans and bakeware at proper cooking height.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

Replace your range oven interior light bulb assembly to restore bright illumination for checking cooking progress. Fits specific GE range models.

This SPDT high-amp switch controls high-current circuits by switching one input between two outputs, restoring proper electrical control in affected appliance functions. Built for high-load switching where reliable on/off selection is required. What it does:

• Directs high-current power from a single input to one of two outputs (single-pole, double-throw action)
• Replaces worn or failed selector/limit-style switches that cause intermittent or no power to a circuit
• Commonly used where a high-amp, durable switching contact is required to complete a function
• Helps stop symptoms like intermittent operation, failure to switch between states, or no power to the controlled circuit

• One SPDT high-amp switch (WB24T10160)

• Disconnect power to the appliance before inspecting or replacing the switch
• Verify wiring locations and take a photo before removal for correct reconnection
• Use proper tools and avoid touching energized contacts;

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

This compressor start relay helps the refrigerator compressor receive the initial jolt it needs to start running, restoring normal cooling when a worn relay prevents compressor startup. It's a direct-fit replacement specified by the manufacturer. What it does:

• Provides the momentary boost the compressor needs to start under load
• Helps prevent repeated hard-start attempts that can overheat or damage the compressor
• Commonly used when a refrigerator hums but the compressor won't start
• Works with the compressor's start device circuitry to control start winding engagement

• One replacement compressor start relay

• Disconnect power to the appliance before servicing to avoid shock
• Access and replace the relay per the appliance's service instructions; avoid bending terminals
• Inspect the compressor and wiring for additional damage before reassembly

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

8-18 AB IHW 5/8 S

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

Black. 8-18 AB HXW 3/8

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

This wire harness connects electrical components inside your range. Replace if wires are frayed, damaged, burnt, or connections are loose or corroded.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
