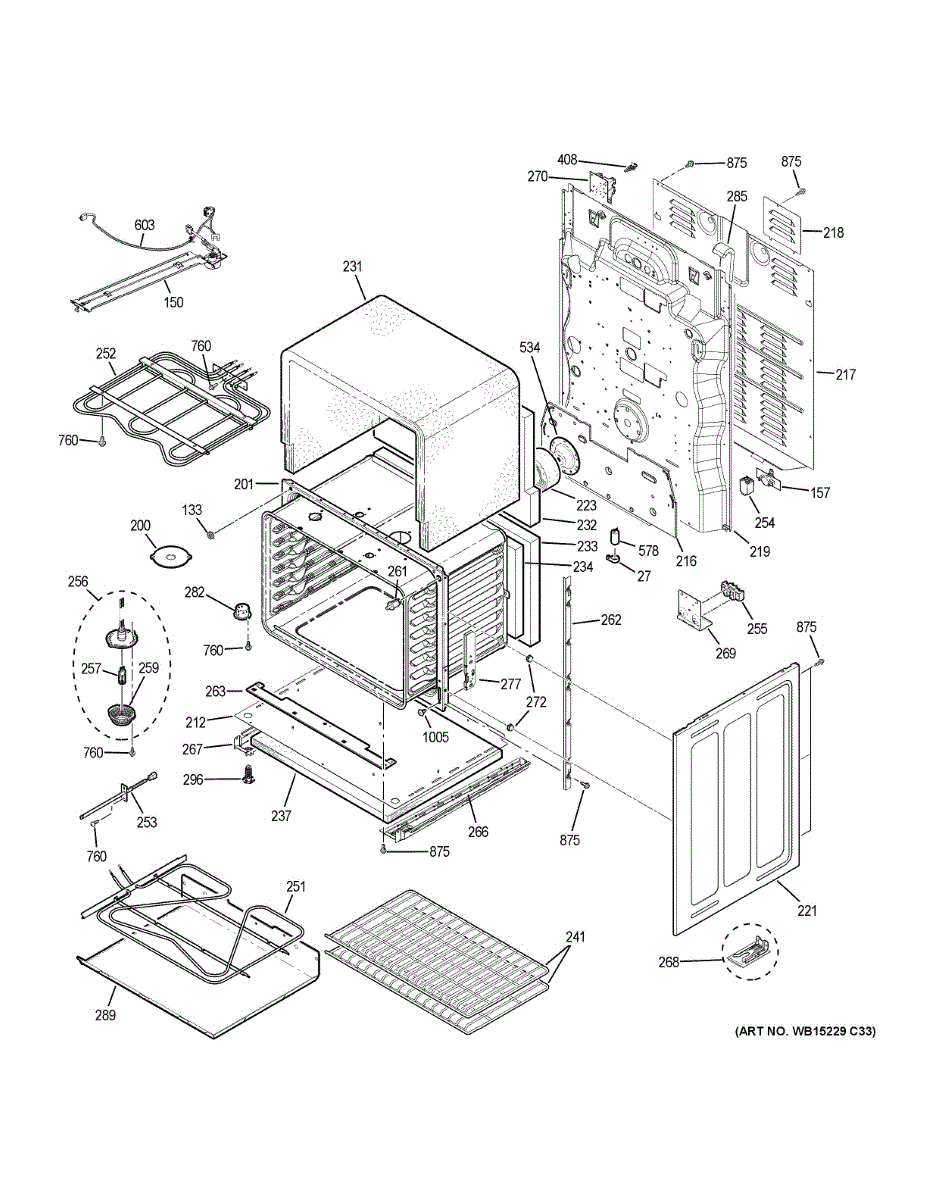

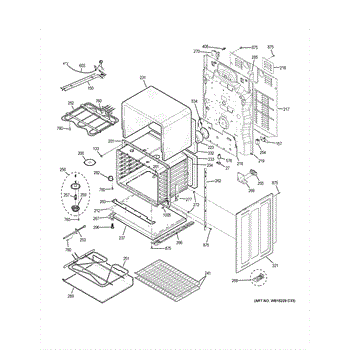

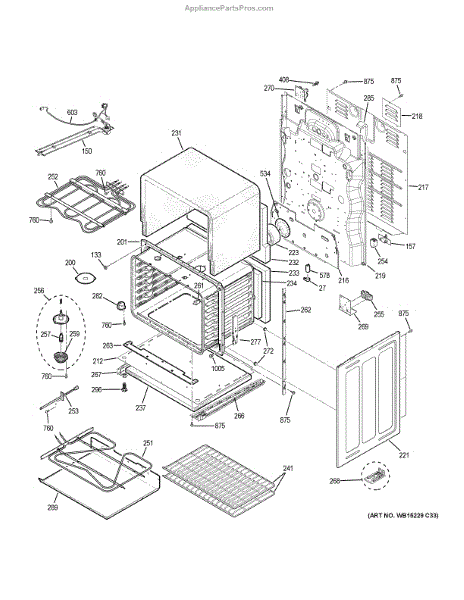

Parts for Ge PB960BJ7TS: Lower Oven Parts

Back heat shield panel for electric ranges. Protects rear components from oven heat. Replace if cracked, warped, or missing to restore proper insulation.

Wire cover for electric ranges. Protects and conceals main wiring connections. Replace if cracked, broken, or missing to restore proper coverage.

This cover terminal block protects the appliance's power connection area by covering the terminal block where the power cord attaches. It keeps wiring secure and helps reduce risk of accidental contact and shorting. What it does:

• Covers and protects the power cord terminal block from dust, moisture and accidental contact
• Prevents exposed terminal ends that can cause arcing or shorts
• Helps keep wiring routed and secured at the power connection
• Common replacement when the original cover is cracked, melted or missing

• One cover terminal block

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the cover
• Remove any mounting screws and lift off the old cover to access terminals; document wire locations before disconnecting
• Reinstall cover after confirming tight, correct terminal connections and that no bare conductors are exposed
• If terminals or wiring show damage (burning, melting, corrosion), replace or repair those parts before reinstalling the cover and restore power only when safe

Replace a cracked, dented, or missing side panel on your electric range. This structural cover panel installs on the exterior side of your appliance.

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

This compressor start relay helps the refrigerator compressor receive the initial jolt it needs to start running, restoring normal cooling when a worn relay prevents compressor startup. It's a direct-fit replacement specified by the manufacturer. What it does:

• Provides the momentary boost the compressor needs to start under load
• Helps prevent repeated hard-start attempts that can overheat or damage the compressor
• Commonly used when a refrigerator hums but the compressor won't start
• Works with the compressor's start device circuitry to control start winding engagement

• One replacement compressor start relay

• Disconnect power to the appliance before servicing to avoid shock
• Access and replace the relay per the appliance's service instructions; avoid bending terminals
• Inspect the compressor and wiring for additional damage before reassembly

The Lamp Halogen Assembly is an OEM part for GE ranges. It is the internal light bulb that illuminates the oven cavity.

Symptoms of a bad lamp halogen assembly include:

• Dim or flickering oven light
• Stuck-on or unresponsive oven light functionality
• Burned out or blackened bulb

Causes can be normal life cycle burnout after extended use or damage from excess vibration.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models. U

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Strain relief bracket secures and protects the power cord connection on your range. Replace if damaged, cracked, or missing to ensure safe installation.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hidden bake harness is the wiring assembly that connects the oven's hidden bake element to the control and power, restoring reliable heater power and oven bake function. Designed for direct replacement where this OEM-style harness is used. What it does:

• Routes power from the oven control/power source to the hidden bake (lower) heating element.
• Replaces damaged, burned, or corroded wires and connectors that can cause no-heat or intermittent heating during bake.
• Ensures secure connector fit to maintain consistent electrical contact and oven performance.
• Helps resolve common symptoms like no bake heat, erratic heating, or visible wire damage near the element area.

• One hidden bake wire harness

• Disconnect all power at the breaker or appliance plug before servicing to avoid electric shock.
• Handle sharp sheet-metal edges inside the oven cavity; wear gloves and eye protection.
• Verify connector orientation and secure routing away from moving parts and high-heat surfaces; replace any mounting clips if needed.
