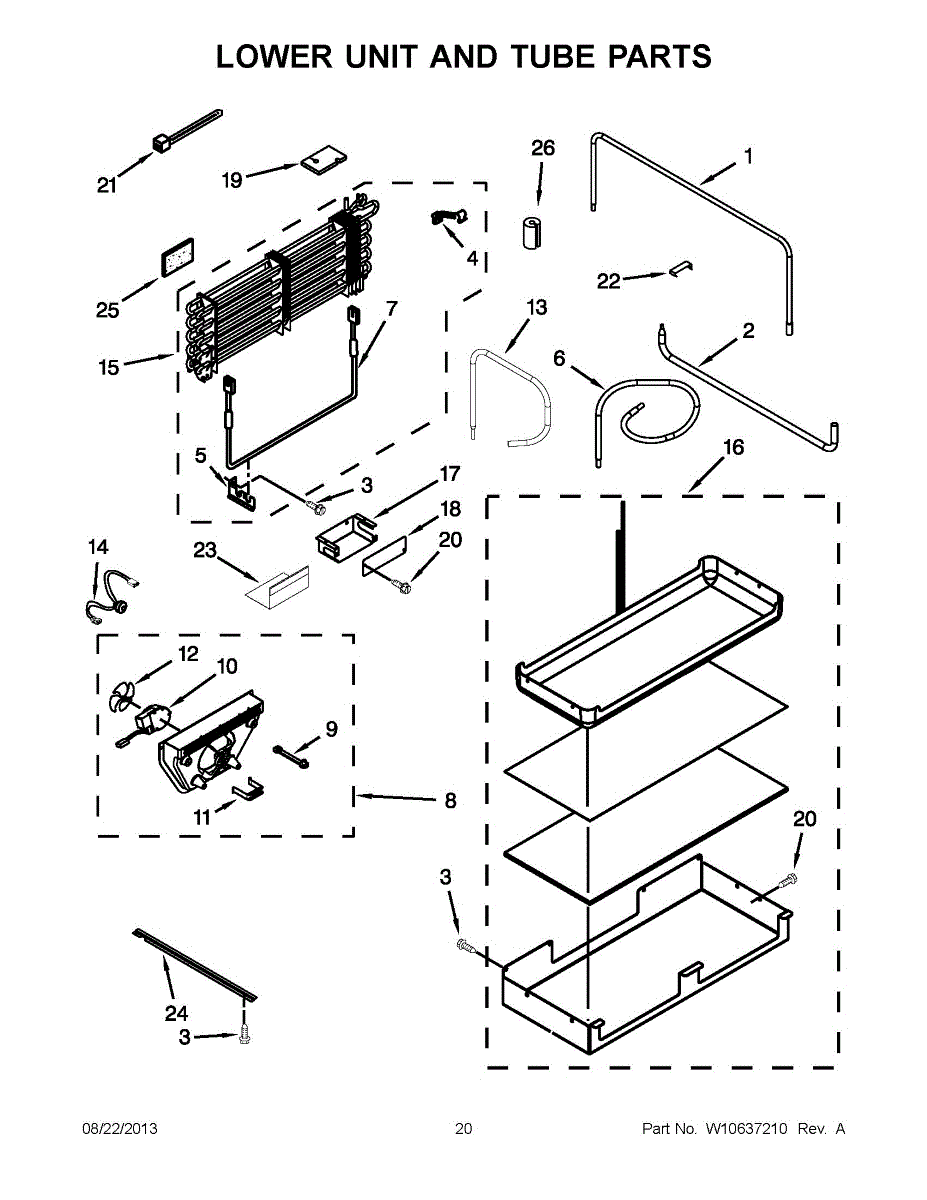

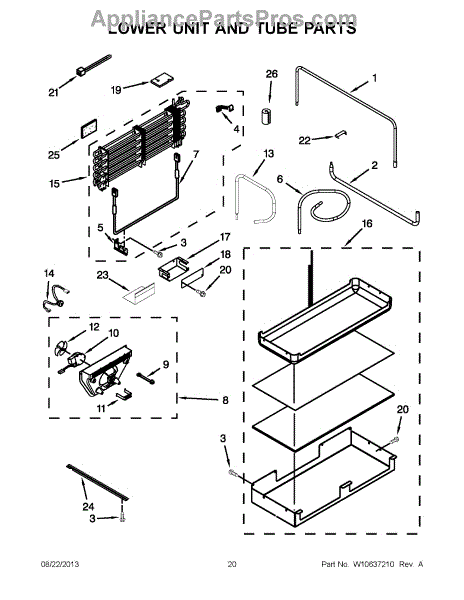

Parts for Kitchenaid KBRC36FTS08: 11 - Lower Unit And Tube Parts

Replaces cracked or damaged water line tube in your refrigerator. Installs between water supply and dispenser/ice maker. Essential for leak repairs.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace your refrigerator's water supply tube when it becomes cracked, kinked, or leaking. This tube delivers water from the supply line to the dispenser.

Fix frost buildup or freezer not defrosting with this refrigerator defrost heater. Solves ice accumulation issues in freezer compartments.

This fan scroll is the molded blower housing that directs airflow from the motor to the exhaust path, restoring proper air movement for drying, cooling, or ventilation. It replaces a cracked, warped, or clogged scroll to improve airflow and system performance. What it does:

• Channels and concentrates air from the blower wheel toward the exhaust or heat exchanger
• Helps maintain proper airflow for efficient drying/cooling operations
• Can resolve symptoms like reduced airflow, longer cycle times, or overheating due to restricted flow
• Reduces air turbulence and abnormal noises caused by a damaged or misaligned housing

• One fan scroll

• Disconnect power before beginning any repairs to avoid shock or injury
• Installation typically requires access to the blower/motor compartment; follow OEM service instructions
• Inspect the blower wheel and motor shaft for damage or debris while replacing the housing
• Handle carefully to avoid bending or cracking the new scroll; reassemble panels and seals to maintain proper airflow

Refrigerator making strange noises or temperature uneven? This evaporator fan motor circulates cold air. Moderately difficult repair—video available.

Secures the fan motor to its housing in your refrigerator. Replace this mounting clip if it's cracked, broken, or missing to restore proper alignment.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Water supply tube for refrigerators. Connects water line to dispenser or ice maker. Replace if cracked, leaking, or damaged to restore proper water flow.

Wire harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are damaged, frayed, or connectors are broken.

Fix a refrigerator not cooling or freezing issues with this evaporator coil. Moderate difficulty repair that restores proper temperature control.

This heater pan is the stamped metal mounting tray that supports the dryer's heating element and helps route airflow for proper drying. It replaces a damaged or corroded pan to restore correct heater placement and airflow. What it does:

• Provides a stable mounting surface for the dryer heating element assembly
• Helps direct heated air through the dryer cabinet for efficient drying
• Prevents the heating element from contacting other components
• Can reduce rubbing or vibration noises caused by a warped or broken pan
• Common symptom link: dryer not heating properly, unusual noises, or visible damage/corrosion to the pan

• One heater pan

• Disconnect power to the appliance before servicing to avoid shock or injury
• Some panels or components must be removed to access the heater pan; keep track of fasteners
• Handle sheet metal carefully—edges may be sharp

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This bracket provides a secure mounting point for internal appliance components, restoring proper alignment and reducing vibration for smooth operation. Use it to replace a worn, bent or missing support bracket. What it does:

• Secures panels, assemblies or components to the appliance frame to prevent movement
• Restores proper alignment and fit where a bracket has failed or been removed
• Helps eliminate rattling, vibration or misaligned parts caused by a damaged bracket
• Simple, passive component—no electrical function

• Bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting holes and mating surfaces for damage before installing
• Reuse or replace original fasteners as appropriate; tighten securely but avoid over-torquing

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
