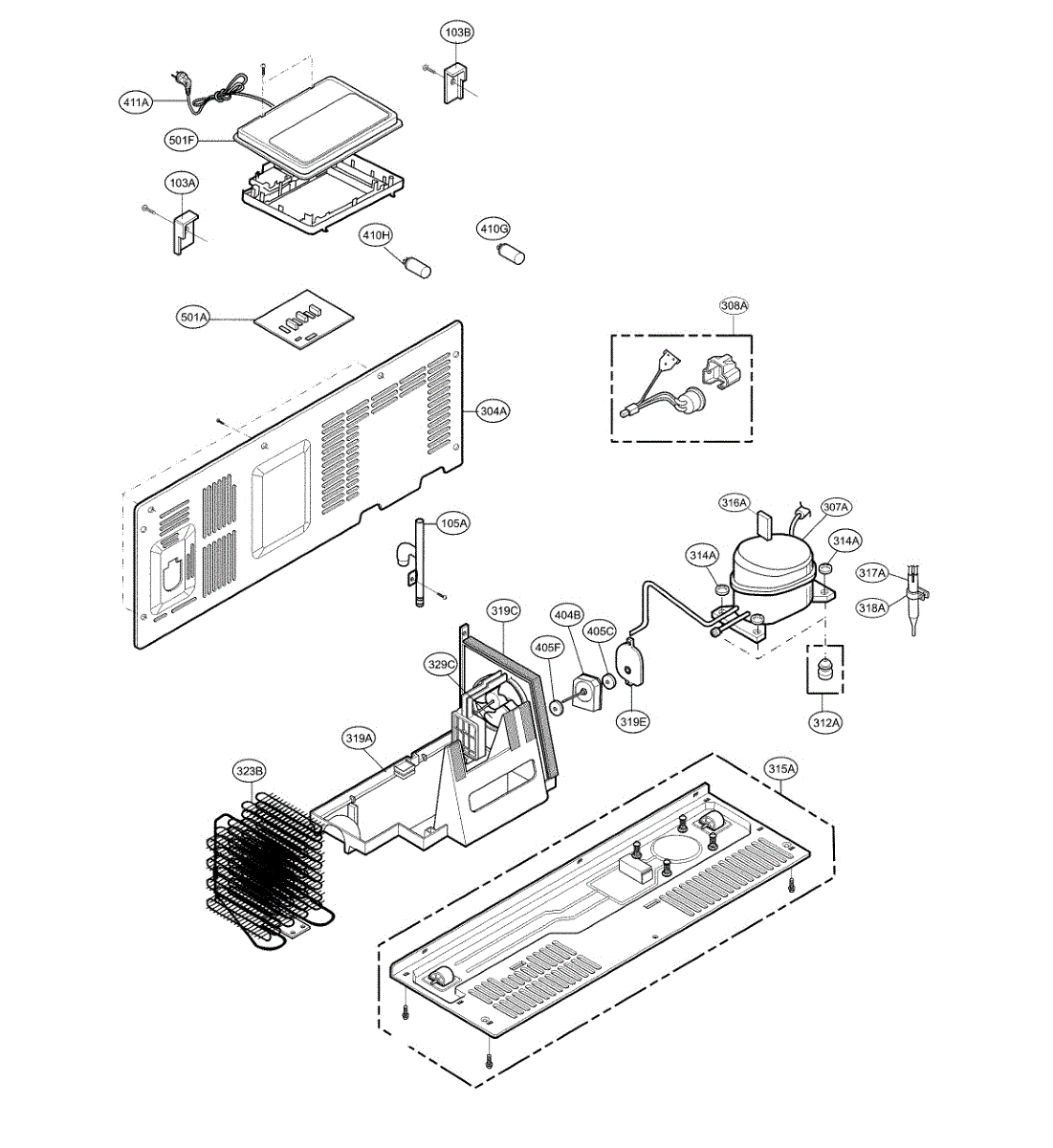

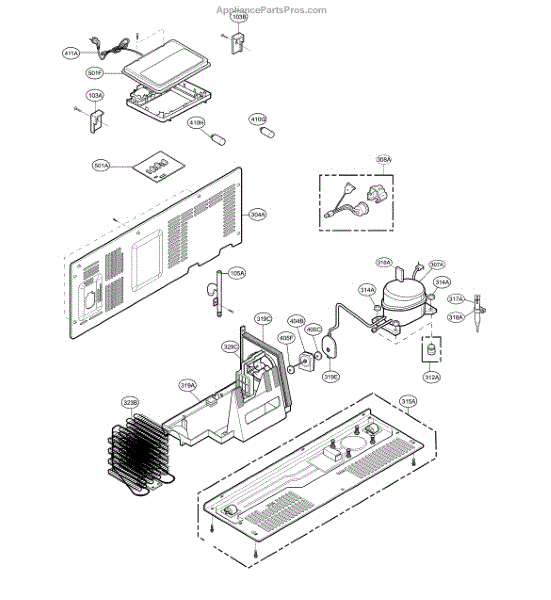

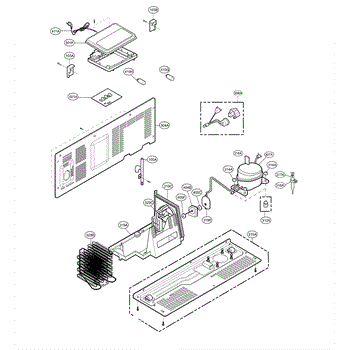

Parts for Lg LSXS26326S/01: Machine Compartment Parts

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

Water pooling under your refrigerator? A damaged drain tube assembly causes leaks and water buildup. This direct-fit part restores proper drainage.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

Spring for the ice door lever mechanism in your refrigerator's dispenser. Replace if the spring is stretched, broken, or missing and the ice door won't stay closed.

Air duct assembly for refrigerators. Directs airflow between compartments. Replace if cracked, broken, or damaged to restore proper air circulation.

Fix uneven cooling or excess noise with this insulated duct assembly. Restores proper airflow between compartments and reduces heat transfer in your fridge.

Control panel not responding or display damaged? This refrigerator control housing protects the control board and interface. Moderate DIY repair, 30-45 minutes.

Replacement drawer rail guide for side-by-side refrigerators. Installs on drawer track to ensure smooth gliding. Replace if cracked, broken, or worn.

Replaces a cracked, broken, or missing bucket cover on your refrigerator. Installs over the tub opening to contain water and protect internal components.

Ice won't dispense or jams in the chute? A damaged ice bucket with worn gears or cracks prevents smooth delivery. This assembly restores reliable dispensing.

Cover plug for refrigerators. Installs over mounting holes or openings to provide a finished appearance. Replace if cracked, broken, or missing.

Replace your cracked, warped, or broken refrigerator drawer tray assembly. This storage tray supports items inside the drawer for proper organization.

Replace your cracked or warped upper refrigerator drawer tray assembly. Restores a stable surface in the top drawer to prevent spills and sagging.

Replace a cracked, broken, or missing refrigerator shelf. Restores stable storage in the fresh-food compartment for organized food and container storage.

A replacement freezer shelf assembly that restores storage support and organization inside the freezer compartment. Replaces a cracked, warped or missing shelf so frozen items sit level and are easier to access. What it does:

• Provides a sturdy surface to hold frozen foods and containers
• Replaces shelves that are cracked, bent, or no longer supporting weight
• Helps restore proper airflow and organization inside the freezer compartment
• Useful when shelf clips or mounting points are damaged or worn

What's included: One freezer shelf assembly Install notes:

• Unplug the appliance or shut off power before starting work
• Remove contents from the shelf and surrounding area to avoid breakage
• Handle with care if the shelf includes glass; wear gloves and eye protection
• Basic tools may be needed to release or secure mounting clips

Replace a broken, cracked, or missing freezer shelf assembly in your side-by-side refrigerator. Restores a sturdy storage surface for organized access.

Replace your cracked, broken, or missing refrigerator crisper drawer. This vegetable tray assembly restores organized storage for fresh produce.

Replace your refrigerator's cracked or broken tray cover assembly. This plastic cover protects tray contents and restores proper fit and appearance.

This rear cabinet cover replaces a damaged or missing TV back panel to protect internal electronics and restore the set's finished appearance. It provides a secure mounting surface and helps keep dust and debris out of the chassis. What it does

• Shields internal circuit boards, power supply and connections from dust, impact and accidental contact
• Restores proper alignment and attachment points for the TV chassis and external connectors
• Eliminates rattles or loose fit caused by cracked or broken mounting tabs
• Helps maintain proper ventilation paths around internal components when installed correctly

• Unplug the TV and place on a soft, protected surface before starting; handle cover edges carefully to avoid cuts.
• Keep and reuse original screws and any attached hardware unless replacements are specified.
• Align mounting tabs and connectors before tightening fasteners; do not force or overtighten to avoid breaking plastic tabs.
• If internal access is required, refer to the TV's service manual; do not touch exposed boards while the set is powered.

Replace your refrigerator's LED light cover if it's cracked, broken, or missing. This clear plastic cover protects the LED lighting assembly inside.

Foam insulation assembly that installs inside your refrigerator freezer door. Replace if cracked, compressed, torn, or missing to restore proper fit.

Foam insulation assembly that installs inside your refrigerator freezer door. Replace if cracked, compressed, torn, or missing to restore proper fit.

Seals your refrigerator door to maintain stable temperatures and prevent frost buildup. Replace if torn, warped, or leaking. Confirm fit with your model.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Small stopper that fits inside the handle assembly to limit travel and keep the handle properly seated. Replace if worn, missing, or broken to restore secure feel.

Replace your refrigerator's door foam assembly if cracked, worn, or damaged. Installs inside the door panel for proper insulation and structure.

Replace your refrigerator's door foam assembly if cracked, worn, or damaged. Installs inside the door panel for proper insulation and structure.

Restore a tight seal on your refrigerator door. Replace this gasket when you notice frost buildup, warm spots, or air leaks. Confirm fit with your model.

Upper door basket for refrigerator doors. Replaces cracked, broken, or missing bins. Holds small items securely in side-by-side models.

Replacement basket assembly door that secures the dishwasher utensil/cutlery basket and keeps small items contained during wash cycles. Restores proper basket closure to help prevent items from falling into the lower rack. What it does:

• Secures the utensil/cutlery basket so forks, knives and small items stay contained during a cycle
• Stops loose items from shifting into the lower rack and interfering with spray arms
• Reduces rattling and noise caused by a cracked or broken basket door
• Replaces a cracked, warped or non-latching basket door to restore normal basket function

• One basket assembly door

• Disconnect power and water to the dishwasher per the owner's manual before starting any repair
• Inspect and retain the original mounting clips or screws; the door may fasten with clips or small screws depending on model
• Align the door with the basket and snap or secure it into place; test by closing the basket and running a short cycle to fit
• If the original hardware is damaged or missing, obtain matching fasteners from the manufacturer or parts supplier

Broken or missing door basket letting items tip and fall? This removable shelf securely holds bottles, jars, and condiments in your refrigerator door.

Replace a cracked, broken, or missing door bin. Snaps into molded tabs on the inner door liner to hold bottles, jars, and condiments securely.

Replace your cracked, scratched, or discolored refrigerator door handle. Installs on fresh food or freezer doors for a secure grip and updated look.

Upper door hinge assembly for refrigerators. Mounts at the top of the cabinet to support and pivot the fresh food door. Replace if bent, cracked, or worn.

Upper door hinge assembly for side-by-side refrigerators. Secures the top of the door to the cabinet. Replace if cracked, broken, or worn causing misalignment.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

Lower hinge assembly for refrigerator doors. Mounts at the bottom of the door to support weight and allow smooth opening. Replace if cracked or worn.

Replaces damaged, cracked, or missing outer cover panel on your refrigerator. Restores finished appearance and protects internal components.

Fix a stuck, broken, or unresponsive water/ice dispenser lever on your refrigerator. Direct replacement part installs in minutes with basic tools.

Secures and seals refrigerator duct connections to maintain proper airflow and prevent leaks. Replace if worn or damaged. Verify fit with your model.

Refrigerator not cooling or freezing over? The evaporator coil assembly absorbs heat to cool your fridge. Moderate difficulty repair, 1-2 hours.

Rear machinery cover assembly for side-by-side refrigerators. Protects compressor components at the back. Replace if cracked, broken, or missing.

Refrigerator not cooling or freezer warm? The compressor assembly circulates refrigerant to maintain temperature. Professional installation recommended.

Refrigerator compressor won't start or runs constantly? The overload protector prevents compressor damage by shutting off power during overheating events.

Fix refrigerator vibration and rattling noise with this compressor damper. Cushions the compressor to reduce metal-on-metal contact and wear.

Replaces broken or missing refrigerator door stop. Limits door travel to prevent over-extension and maintain proper alignment and smooth operation.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Secures the drier assembly to the refrigerator frame. Replace if the clip is cracked, broken, or missing to restore stability and reduce movement.

Replace the drip tray in your side-by-side refrigerator. This tray collects water and prevents leaks. Order a new one if yours is cracked or missing.

Drain tray assembly for side-by-side refrigerators. Collects defrost water beneath the appliance. Replace if cracked, warped, or missing.

This fan guide is the molded support bracket that positions and protects the refrigerator/freezer evaporator or condenser fan blade, helping maintain proper airflow and reduce noise from the fan assembly. Designed to fit into the fan housing area. What it does:

• Holds the fan blade and motor assembly securely in the correct position for consistent airflow
• Directs airflow across the evaporator or condenser for efficient cooling performance
• Helps prevent fan blade contact with other components, reducing rubbing noise and wear
• Keeps debris away from the fan to protect the motor and prolong fan life

• One fan guide/support bracket

• Disconnect power to the appliance before inspecting or replacing the part
• Access may require removing interior panels or the rear access panel depending on model
• Verify correct orientation and secure mounting; do not force the part into place
• Test fan operation after reassembly to confirm proper fit and clearance

This condenser assembly is the factory-style replacement condenser wiring and support used in compatible LG refrigerators to restore proper condenser connections and securement. It helps maintain reliable cooling system electrical routing and component support. What it does:

• Provides the correct wire routing and connections for the refrigerator condenser area
• Secures condenser components in place to prevent vibration and wear
• Restores proper electrical paths for condenser-related circuits to help the compressor/fan operate as intended
• Helps address symptoms like intermittent cooling, unusual vibration, or loose wiring in the condenser compartment

• One condenser assembly as shown

• Disconnect power and follow manufacturer safety procedures before starting work
• Inspect surrounding components (fan, compressor mounts, tubing) while replacing this assembly

If your refrigerator is noisy or not cooling properly, the fan assembly may be worn. This part circulates air to maintain even temperatures throughout.

Refrigerator running loud or fan exposed? This fan grille assembly protects the fan motor, directs airflow, and reduces noise. Simple snap-in install.

Refrigerator not cooling or making noise? This DC motor drives fans and mechanical components to restore proper airflow and temperature control.

Fix excessive vibration and loud noises from your refrigerator with this motor bracket. Secures the motor to the chassis, preventing misalignment issues.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

Replaces a worn or broken evaporator fan motor grommet in your refrigerator. Cushions the motor to reduce vibration and noise during operation.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

Refrigerator won't start or stops running? A failed capacitor disrupts motor circuits. This film radial capacitor restores voltage stability and operation.

Refrigerator won't start or compressor struggles to run? The run capacitor provides the power boost needed to start and maintain compressor operation.

Control board cover assembly for side-by-side refrigerators. Protects the PCB from dust and damage. Replace if cracked, broken, or missing clips.

Fixes refrigerator that won't power on or respond to controls. This power control board restores electrical distribution and diagnostic functions.

Ice maker stopped making ice or froze up? This assembly restores automatic ice production. Simple plug-and-play replacement takes about 5 minutes.

Ice won't dispense but ice maker works? The auger motor drives ice from the bin to the chute. Moderately easy repair with our video guide and DIY tips.

Fix water leaking from filter area or pooling under your fridge. This assembly holds the filter securely and prevents leaks at the connection point.

Removes contaminants for clean, fresh-tasting water and ice. Replace every 6 months or 200 gallons to maintain water quality. Verify fit with your model.

The Dispenser Motor is an OEM part for LG refrigerators. It is the motor component housed inside the external ice and water dispenser.

This dispenser motor controls dispensing functions by operating the ice and water delivery system. It works with electronic controls to precisely dispense desired amounts of cubed ice or chilled water on demand.

Causes of a bad dispenser motor can include failures in motor electronics, damage from water damage, or normal wear over time.

Symptoms of a bad dispenser motor include:

• Inability to dispense ice or water through the external spout
• Malfunctions in ice or water delivery amounts
• Abnormal sounds or jerky motions from the dispenser area

Replacing the dispenser motor with this genuine LG OEM part restores convenient dispensing capabilities. It is also compatible with Sears/Kenmore refrigerator models.

Replaces cracked, leaking, or damaged water tank that stores and supplies water to your refrigerator's dispenser and ice maker. Direct fit replacement.

Replaces cracked or broken tube connector in your refrigerator. Secures and routes tubing to prevent leaks from loose connections. Easy install.

Ice maker stopped making ice or water dispenser not working? This water inlet valve controls water flow to your refrigerator. DIY-friendly repair.

Connects water tubing inside your refrigerator to supply the ice maker and water dispenser. Replace if cracked, leaking, or unable to hold tubing securely.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Tube cover for refrigerator water lines. Replaces cracked, broken, or missing covers that protect tubing connections. Installs over exposed tubes.

Secures hoses and tubing in your refrigerator to prevent leaks. Replace if worn, cracked, or losing grip. Verify fit with your model number listed.

Refrigerator hose clamp band secures water lines and hoses. Replace if cracked, loose, or causing leaks. Verify fit with your model number before ordering.

This LED assembly restores the TV's backlight by replacing a failed LED strip, improving screen brightness and uniformity for visible picture. Designed to match the original part's fit and function. What it does:

• Replaces the TV's failed LED backlight strip to restore screen illumination
• Can resolve symptoms such as dim or dark screen, uneven brightness, or vertical/horizontal dark bands
• Helps stop flickering or intermittent backlight outages when caused by the LED strip
• Works with the TV's existing power board and connectors

• Disconnect power and unplug the TV before starting any repair
• Handle LEDs and the circuit board carefully; avoid touching LED surfaces and flexing the strip
• Use anti-static precautions and keep small screws and brackets organized during reassembly

This LED assembly is the backlight strip used to illuminate an LCD panel, restoring even screen brightness and color when individual LEDs fail or the backlight dims. It replaces a damaged or faulty LED strip to improve picture visibility. What it does:

• Provides uniform backlighting behind the LCD panel for consistent brightness across the screen
• Replaces burned-out or flickering LEDs that can cause dark spots, vertical bands, or uneven lighting
• Stops intermittent or flashing backlight-related display issues caused by failed LED elements
• Works with the TV's existing power module and driver board to restore normal backlight operation

• Disconnect power and unplug the TV before beginning any repair
• Handle the LED assembly and circuit board by the edges; avoid touching LEDs or solder joints
• Use proper tools and keep small screws/parts organized; follow TV disassembly guidance for your model

If your refrigerator isn't cooling properly or temperatures fluctuate, a faulty temperature sensor may be the cause. This part restores accurate readings.

If your freezer isn't maintaining the right temperature or runs constantly, the freezer temperature sensor may have failed. This part monitors compartment temperature to keep food properly frozen.
