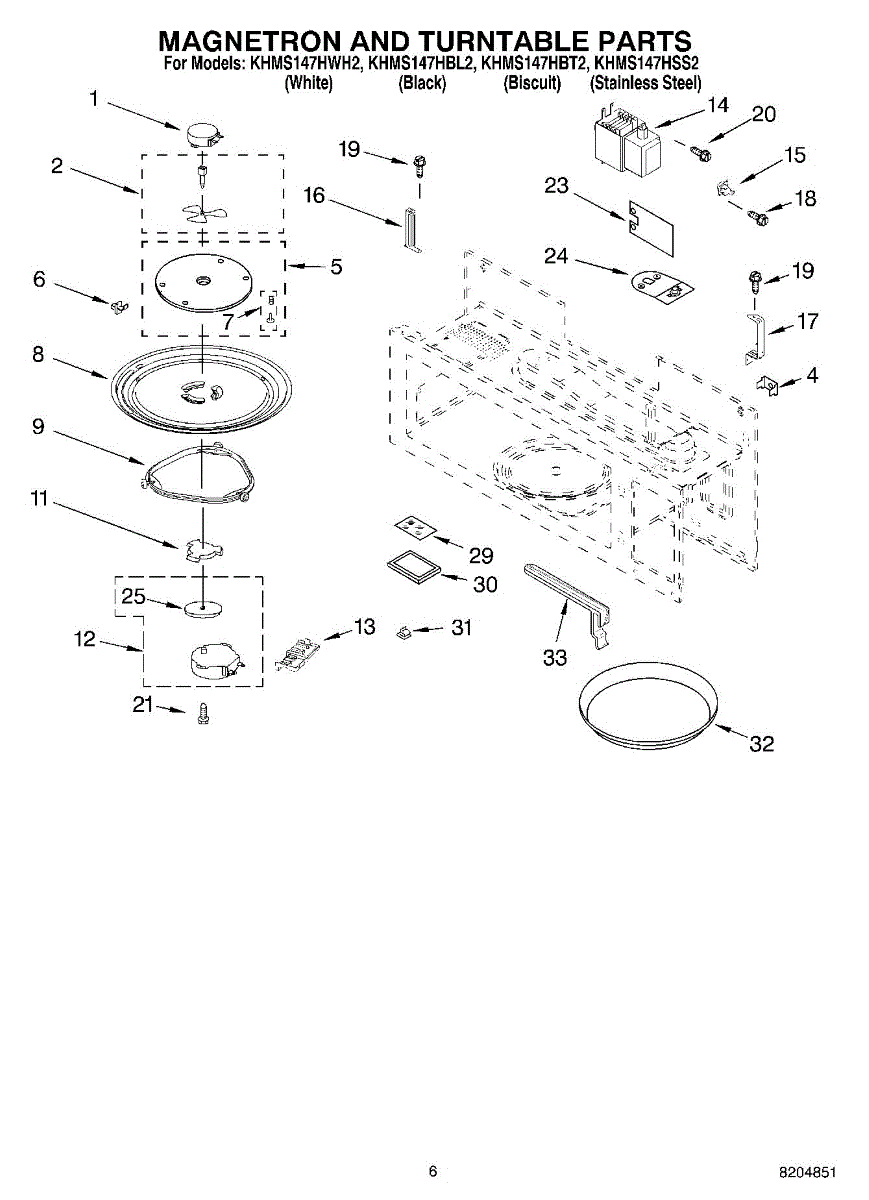

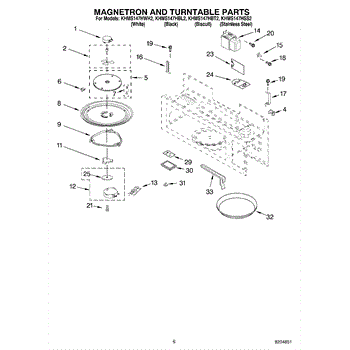

Parts for Kitchenaid KHMS147HSS2: 05 - Magnetron And Turntable Parts

Includes new motor, stirrer cover, plastic rivets and hardware to install upgrade kit.

Includes one support.

*** Note: This glass tray has 3 partial-circles to engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that glass tray use part# W11367904. ***

The Cooking Tray is an OEM part for Whirlpool microwaves. This glass tray sits on the turntable support and rotates to ensure that food heats evenly throughout the cooking cycle. It is designed to fit securely within the microwave, providing a stable platform for various dishes and containers.

Over time, the cooking tray can become damaged due to regular use, drops, or exposure to extreme temperatures. If the tray is cracked or broken, it can lead to uneven cooking and potential safety hazards.

Symptoms of a bad cooking tray include:

• Visible cracks or chips on the glass surface
• The tray not rotating properly
• Uneven heating or cooking of food
• The tray wobbling or not fitting securely on the turntable support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix a wobbly or noisy turntable with this microwave support ring. Replaces cracked or missing rings causing bumping sounds. Easy DIY install.

The Cooking Tray Coupler is an OEM part replacement part for Whirlpool microwaves. It securely connects the two halves of the microwave cooking tray together, allowing for easy placement and removal of food items.

Symptoms of a bad cooking tray coupler include:

• The cooking tray separating into two loose pieces that do not stay connected
• Food sliding off or falling through gaps in the disconnected tray halves
• Inability to use the microwave cooking tray properly

Causes of a bad coupler can be cracks, breaks, or wear over time that compromises its connecting ability.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This coupler is compatible with the glass tray that has the 3 half circles that engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that coupler, use part# W11245707.

Microwave turntable won't rotate or makes rattling noise? This motor drives the glass tray for even heating. Easy 10-minute DIY fix with basic tools.

Microwave not heating but runs? The magnetron generates microwave energy for cooking. Intermediate repair requiring discharge of capacitor first.

This is a genuine replacement screw used to fasten appliance panels, trim, and components. It restores secure attachment and helps eliminate rattles or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, trim pieces, or internal components
• Stops vibration-related noise caused by loose or missing fasteners
• Restores proper alignment and fit of assembled parts
• Provides the correct thread and length for the intended factory location

• One screw

• Use the correct screwdriver or bit to avoid stripping the head
• Hand-start the screw to ensure correct thread engagement before final tightening
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working in areas near electrical components

This replacement screw secures appliance components and panels in their proper position. Replacing worn, stripped, or missing hardware restores a tight fit, reduces vibration or rattles, and helps maintain safe, reliable operation per the manufacturer's design. What it does:

• Fastens panels, brackets, or assemblies where specified in the model's parts diagram
• Replaces missing, rusted, or stripped hardware
• Helps eliminate looseness, rattling, or vibration
• Restores secure alignment of mounted components

• 1 screw

• Disconnect power and shut off water/gas before servicing.
• Verify the exact location in your model's parts diagram and replace screws one at a time to maintain alignment.
• Use the correct driver/bit; start threads by hand to avoid cross-threading and do not overtighten.
• Inspect mating holes/clips for damage; repair or replace related hardware if threads are compromised.

Replacement mounting screw for microwaves. Secures panels, brackets, and interior trim to the frame. Needed when original screws are stripped or missing.

The Motor Spacer is an OEM part for Whirlpool microwaves. It is designed to support and position the turntable motor, ensuring it stays aligned and functions correctly. This spacer helps maintain the stability of the turntable, allowing even and consistent heating of food.

Causes of a bad motor spacer can include wear and tear over time, physical damage from heavy use, or misalignment due to accidental impacts. Regular inspection and maintenance can help identify issues before they lead to motor malfunction.

Symptoms of a bad motor spacer include:

• The turntable not rotating properly
• Unusual noises coming from the turntable area
• Inconsistent heating or cooking of food
• The turntable being unsteady or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Light cover glass for microwaves. Installs underneath to protect bulbs. Replace if cracked, broken, or missing from accidental damage or wear.

Replacement crisping tray for microwave ovens. Restores browning and crisping function. Replaces worn, pitted, or damaged pans with flaking surfaces.
