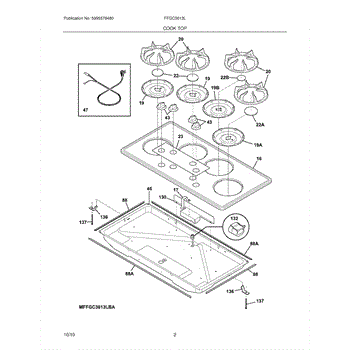

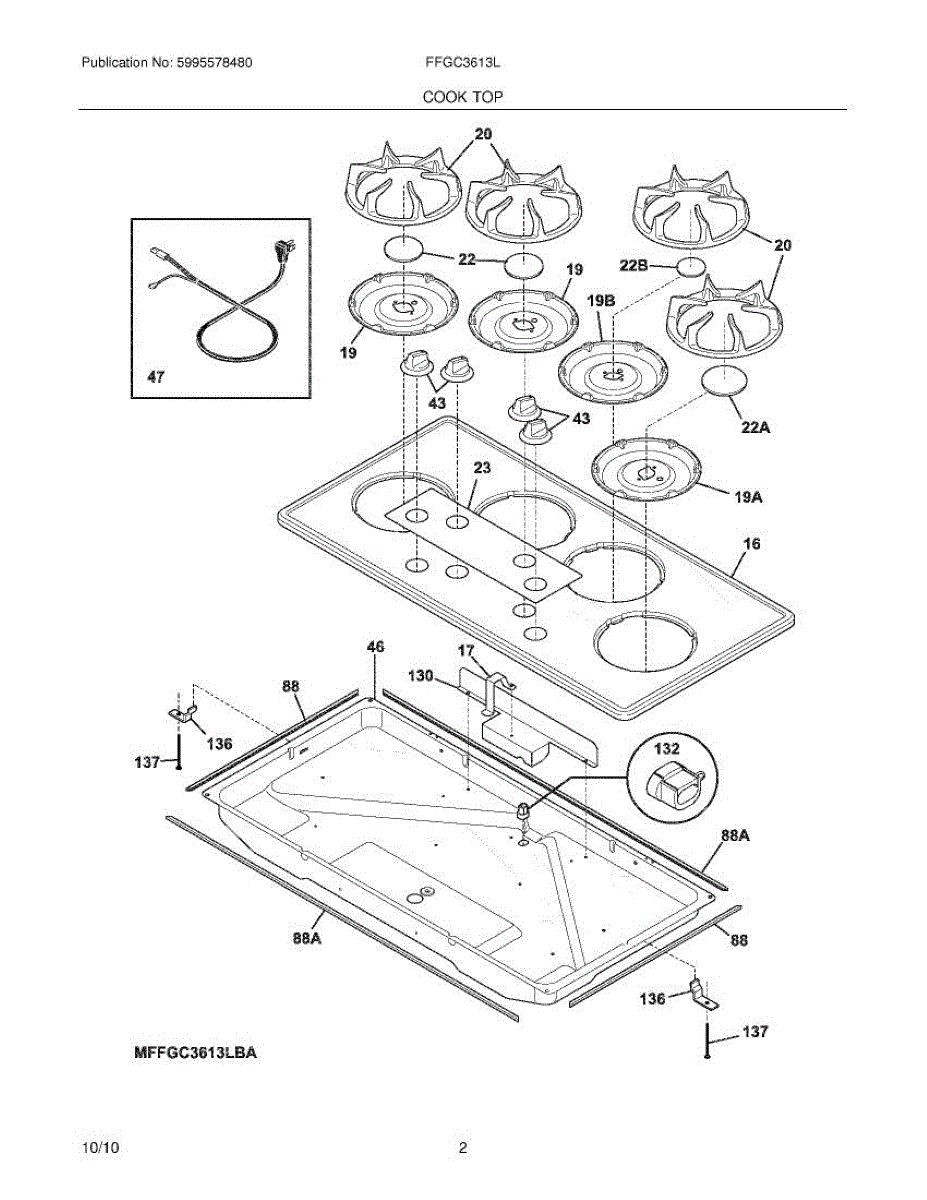

Parts for Frigidaire FFGC3613LBB: 03 - Main Top Parts

Replacement drip pan that installs under cooktop burners to catch spills and grease. Needed when original is cracked, warped, rusted, or missing.

Burner cap sits atop the gas burner base to distribute flame evenly. Replace if cracked, warped, discolored, or missing to restore proper heat distribution.

Replacement burner cap for gas range cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, damaged, or missing after moves.

Replacement burner cap for gas ranges and cooktops. Covers the burner head and protects from spills. Needed when cap is cracked, broken, or missing.

Replace your cooktop's touch pad panel if the control surface is cracked, unresponsive, scratched, or missing. Restores the control interface appearance.

Replacement power cord for cooktops and ranges. Connects appliance to wall outlet. Install when original cord is damaged, cut, frayed, or missing.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This is a metal support bracket that helps secure and stabilize the firebox or internal cavity structure of the range or cooktop. It provides structural reinforcement to keep components properly aligned during operation. Replace this bracket if it is bent, broken, or corroded, which can cause misalignment of internal parts or rattling noises during use.

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

Specs: 10-32 X 0.375

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
