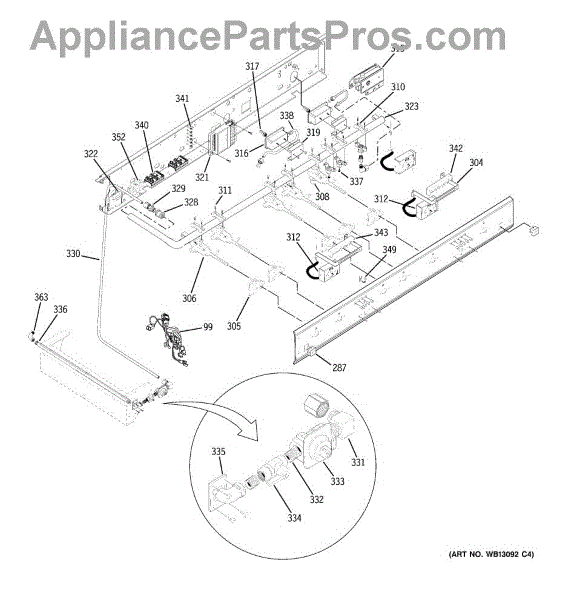

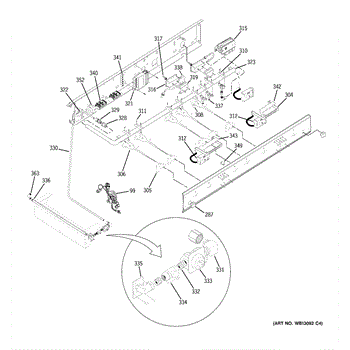

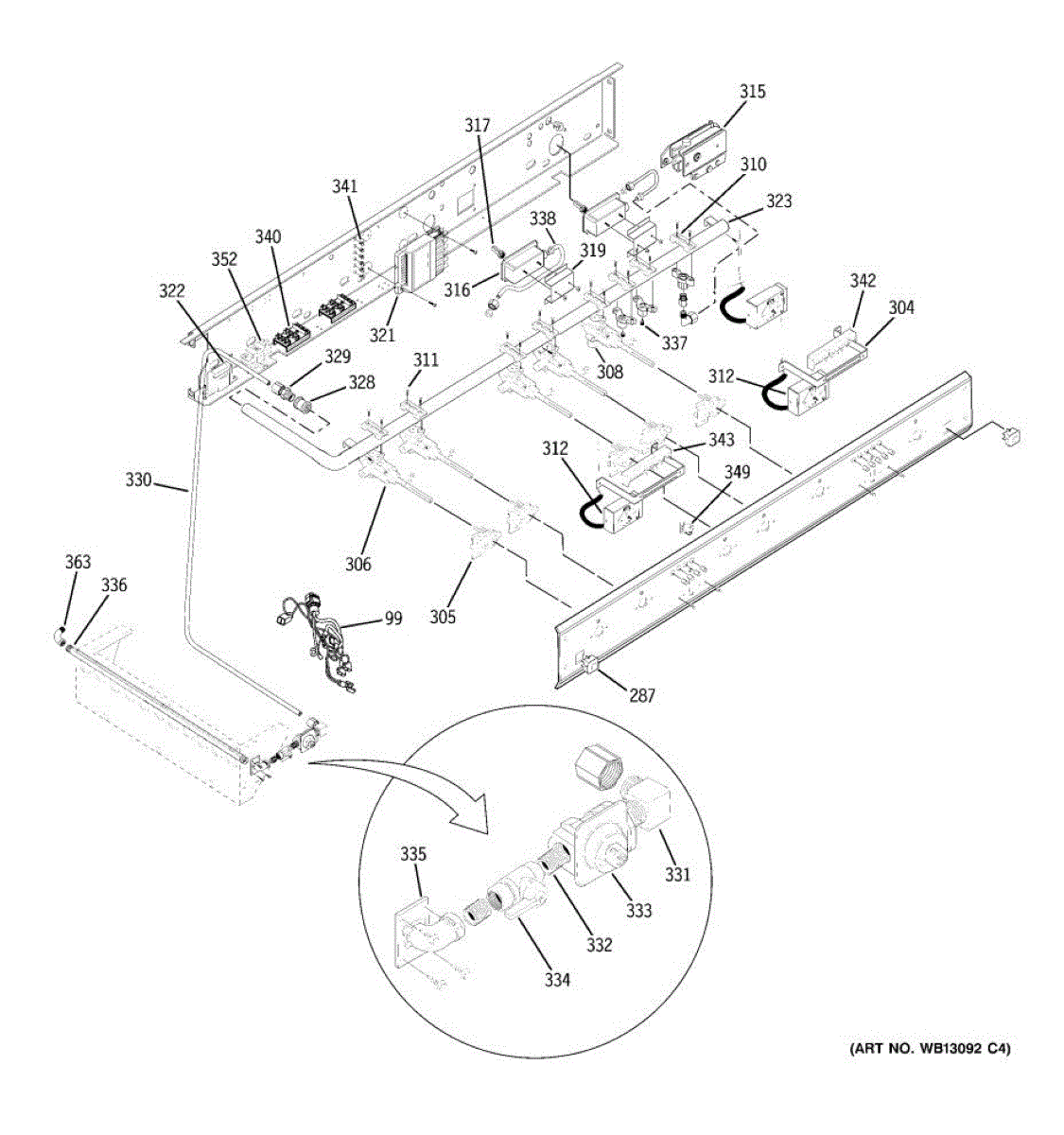

Parts for Ge ZDP48L6RH4SS: 03 - Manifold Assembly Parts

If your gas burner won't light or keeps clicking after ignition, the igniter switch may be faulty. This switch closes when you turn the knob to spark.

This LP grille valve controls propane gas flow to the range/grill burner, restoring reliable ignition and steady flame for broiling or grilling. Replaces a worn or malfunctioning valve to help return normal burner operation. What it does

• Regulates LP fuel to the grille/broil burner so the burner lights and holds a steady flame
• Can resolve symptoms like a burner that won't ignite, weak or uneven flame, or failure to stay lit
• Works as the in-line control between the regulator/manifold and the grille burner
• Designed for direct replacement of the OEM grille valve on compatible models

• One grille valve

• Shut off the gas supply and disconnect power before starting; follow local codes
• Use proper thread sealant rated for gas on threaded fittings; hand-start threads to avoid cross-threading
• Leak-test all gas connections with a soapy-water solution — never use an open flame

Secures gas valves on your cooktop or range. Replace if loose, cracked, or causing gas flow issues. Verify fit with your model number before ordering.

10-32 x 1 inch hex head screw for securing cooktop panels, brackets, and assemblies. Replace missing, stripped, or corroded fasteners during repairs.

Fix inaccurate oven temperatures or uneven baking with this range thermostat assembly. Controls precise heating. Moderate DIY install with basic tools.

This thermostat door lock assembly secures the temperature control area and helps ensure consistent thermostat operation. It replaces a worn or broken door lock to restore proper door closure and temperature performance. What it does

• Secures the thermostat/temperature control compartment door to help maintain consistent internal temperatures.
• Replaces damaged or broken lock components that prevent the door from latching properly.
• Helps stop drafts and reduce temperature fluctuation caused by a loose or non-latching control door.
• Common symptom: door won't stay closed or the thermostat cover won't latch.

• One thermostat door lock assembly.

• Disconnect power to the appliance before attempting any repair to avoid shock or injury.
• Handle plastic components carefully to avoid breakage; use appropriate hand tools.
• If mounting hardware or trim is damaged, replace those parts as well.

Fix burners that won't ignite or spark continuously. This 6-point spark module restores reliable ignition across all burners. DIY repair, 30 min.

This high-voltage transformer steps line voltage up to power the magnetron, producing microwave energy. Replacing a failed transformer can restore heating when the oven runs but doesn't heat or hums without cooking.

• Supplies the high voltage the magnetron needs to generate microwave energy
• Failure may present as the microwave running but not heating
• May cause a loud hum or buzz with no heat
• Can blow an internal fuse or trip a breaker immediately after pressing Start

• Disconnect power before service; the high-voltage capacitor can retain a dangerous charge even when unplugged
• Support the heavy transformer during removal/installation and reuse original mounting hardware and wire positions
• After installation, verify secure connections in the high-voltage circuit (capacitor and diode) before testing

Elbow plate for ranges. Mounts to the burner assembly to provide structural support. Replace if bent, cracked, broken, or missing for proper fit.

Intake pipe for gas ranges. Connects gas supply to burner assembly. Replace if cracked, damaged, or leaking. Essential structural component.

A 1/8" hex pipe plug that seals unused threaded openings to stop leaks and protect internal passages. Simple replacement for worn or missing plugs to restore proper sealing and safe operation. What it does:

• Threads into a 1/8" NPT threaded port to block unused pipe or port openings.
• Prevents fluid or gas leaks from inactive or removed fittings.
• Helps maintain proper pressure and system integrity in valves, manifolds, or housings.
• Common symptom: visible leakage or dripping from a threaded port where a plug is missing or damaged.

• Turn off and isolate electricity, gas, or water to the appliance before servicing.
• Use appropriate thread sealant (PTFE tape or approved pipe compound) if required by the appliance design.
• Thread by hand to start, then tighten with a wrench—avoid overtightening to prevent damage to threads or housing.

Gas line elbow fitting for cooktop and range installations. Connects gas supply tubes at a 90-degree angle. Replace if cracked, stripped, or leaking.
