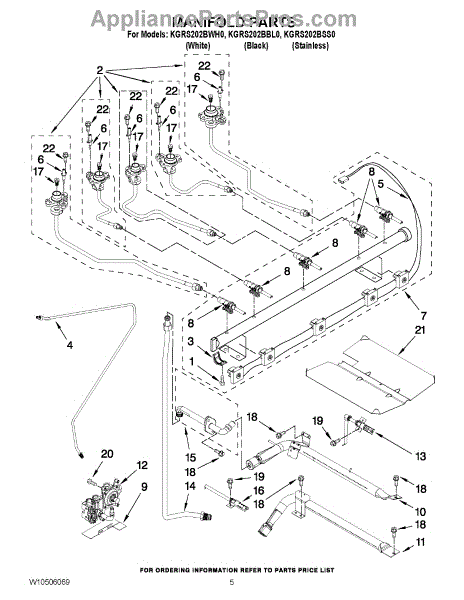

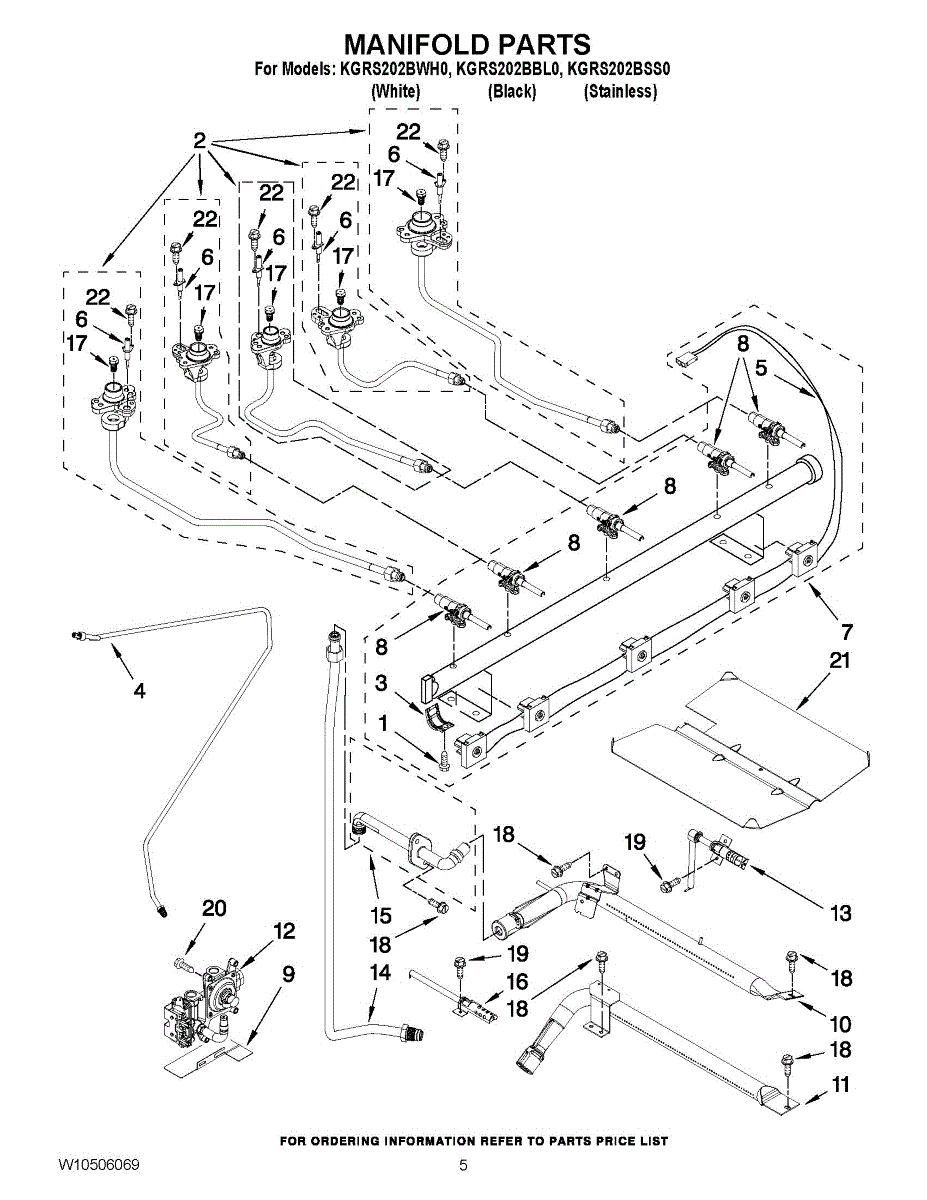

Parts for Kitchenaid KGRS202BBL0: 04 - Manifold Parts

Secures panels, brackets, and trim pieces on ranges and cooktops. Replace if stripped, corroded, or missing to eliminate rattles and looseness.

Replacement orifice holder for gas ranges. Secures the burner orifice in place. Order a new holder if yours is cracked, damaged, or missing.

Fix weak flames or uneven heating with this gas burner orifice holder assembly. Secures the orifice for proper gas flow and stable ignition. DIY repair.

Fix weak flames or burner ignition issues. This orifice holder assembly secures the gas orifice and directs flow for steady, reliable burner operation.

Fix weak flames or ignition problems with this range orifice holder assembly. Secures the burner orifice to the gas valve for proper gas flow and control.

Gas tubing component for gas ranges. Replaces damaged, cracked, or worn tubing in your range's gas supply system. Essential structural part.

Burners won't light or spark intermittently? This wire harness restores electrical connections between the igniter switch and ignition system.

Burner won't light or clicks continuously? This spark electrode creates the arc that ignites gas at the burner. Simple DIY repair restores ignition.

Replace a faulty range gas manifold if burners won't light, have uneven flames, or gas smell is detected. Moderate DIY repair, 1-2 hours typical.

Replace your gas range burner valve if your burner won't light, flame is weak, or heat doesn't adjust properly. Controls gas flow for safe operation.

Fix a burner that won't ignite or has a weak, uneven flame with this gas range burner valve. Controls gas flow to restore proper ignition and flame.

Burner won't ignite or knob turns but no gas flows? This surface burner valve controls gas flow to individual cooktop burners. Moderate DIY repair.

Oven not browning or crisping food properly? This broil burner assembly restores focused high heat for perfect broiling. Direct-fit installation.

Oven won't heat or bakes unevenly? A corroded or clogged bake burner disrupts flame distribution. This gas burner restores consistent oven performance.

Fix an oven that won't stay lit or shuts off after 30 seconds. This gas valve and regulator assembly is a moderately difficult DIY repair for your range.

Fix an oven that won't light or hold temperature with this gas range igniter. Common repair for clicking sounds without ignition. DIY-friendly, 10-20 min.

If your gas range burner won't light or has weak flames, the flexible gas tubing may be damaged or disconnected. This line restores safe gas flow.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

Fix a broil burner that won't light or clicks repeatedly. This spark electrode generates the ignition spark needed for reliable broil operation.

Gas range burner orifice regulates gas flow to stovetop burners. Replace if converting fuel type (LP to natural gas), cracked, or missing for safe operation.

This precision-drilled natural-gas orifice (8K) meters gas to a single burner on your range or cooktop. It helps restore a correct, consistent flame when the original orifice is clogged, damaged, or the wrong size. What it does:

• Regulates gas flow to one burner in a natural-gas configuration
• 8K size matches the designated burner output specified for certain positions
• Can help resolve low/uneven flame, yellow tipping/sooting, or poor simmer control
• Useful when correcting issues after a fuel-type conversion

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates and burner caps to access the orifice holder
• Thread in the new orifice and tighten gently
• Restore gas, leak-check with soapy water, and confirm proper flame height and color per the service manual

Burner orifice spud for gas ranges. Meters gas flow to control flame height. Replace if clogged, damaged, or when converting between natural gas and LP.

This natural-gas burner orifice spud meters the correct fuel flow for a 15,000-BTU surface burner. Replacing a clogged, damaged, or wrong-size orifice restores proper flame size, cleaner combustion, and reliable cooktop performance. What it does:

• Meters gas through a calibrated opening to the burner head for correct flame height
• Sized for a 15,000-BTU surface burner using natural gas
• Installs in the orifice holder/valve body beneath the burner
• Typical symptoms of a faulty or mismatched orifice: weak/small flames, yellow/sooty flames, uneven heating, delayed ignition, burner won't reach high heat

• 1 natural-gas 15,000-BTU orifice spud

• Shut off gas supply and disconnect power; allow all burners to cool completely
• Remove grates, caps, and burner heads; lift the top or access the orifice holder as required
• Match each orifice to the correct burner location by BTU rating; do not overtighten
• After reassembly, check all connections for leaks with a non-corrosive soap solution and verify proper flame color/size

• For natural gas applications only; use the correct LP/propane orifice when converting fuel types

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Note: LP Broil Orifice  (#100 on the orifice)

LP bake burner orifice for gas range conversion. Replaces worn or incorrect orifice when converting to propane. Installs on bake burner assembly.

The LP Orifice Kit is an OEM part for Whirlpool gas ranges. It contains a set of five orifices designed specifically for use with liquid propane (LP) gas. Note: For the oven orifices, on some models they are adjustable and some they are not. Refer to parts list for your model when oven orifices are needed. LP orifice kit includes 5 orifices.

Causes of a bad LP Orifice Kit may stem from incorrect orifice size for the specific LP gas supply, wear or damage to the orifices over time, or improper installation.

Symptoms of needing to replace the LP Orifice Kit can include:

• Uneven heating or incomplete combustion of the burners
• Yellow or flickering flames instead of a steady blue flame
• Reduced cooking performance or inefficient heating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
