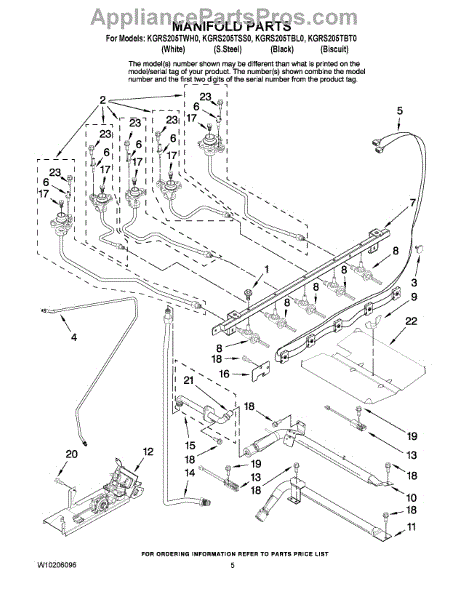

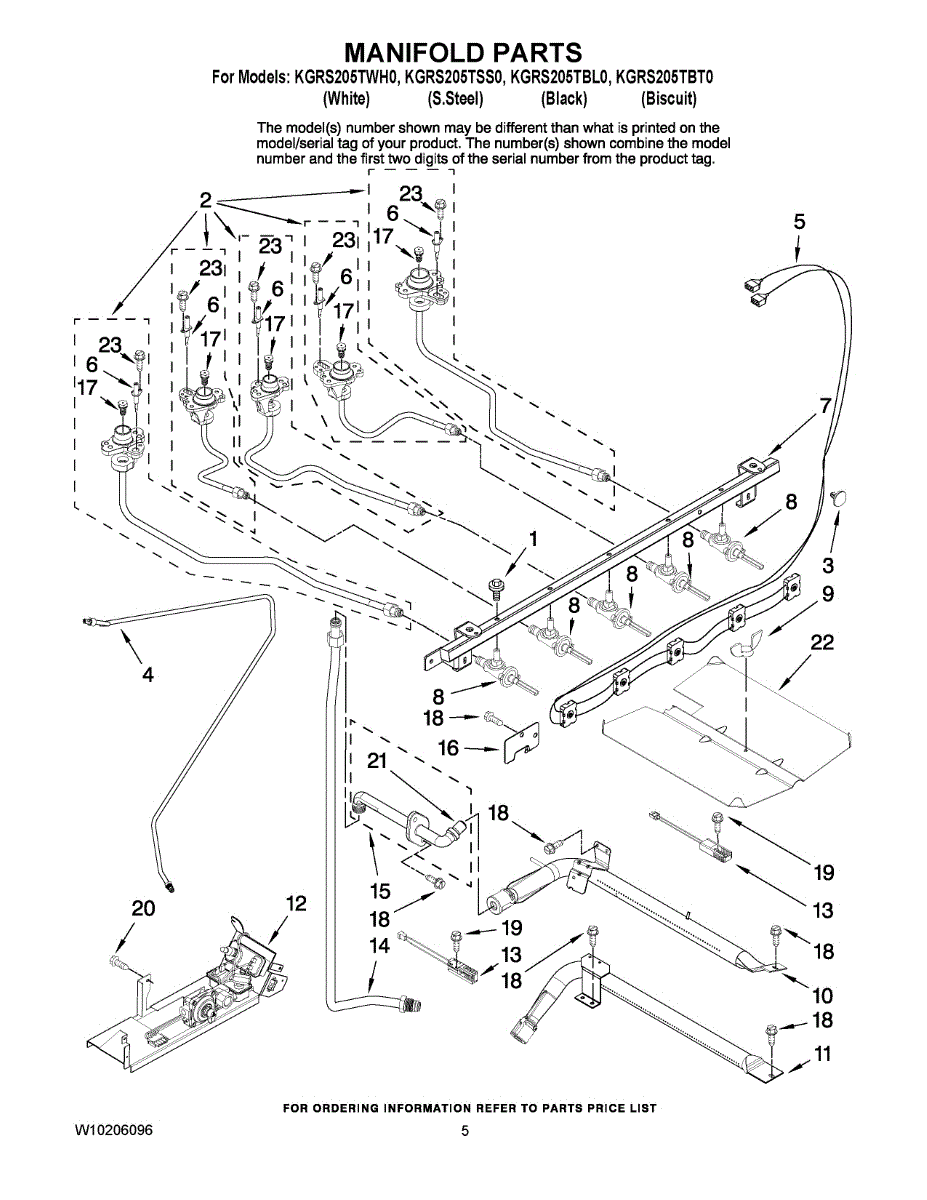

Parts for Kitchenaid KGRS205TWH0: 04 - Manifold Parts

Secures the burner orifice to the gas manifold on your range. Replace if the holder is cracked, broken, or missing to keep burner components aligned.

Orifice holder tube assembly for gas ranges. Secures and positions the burner orifice. Replace if cracked, damaged, or missing to restore proper fit.

Burner orifice holder tube for gas ranges. Mounts to the burner assembly and holds the gas orifice in place. Replace if cracked, broken, or missing.

Snap-in spacer for range installation. Provides proper spacing and alignment between components. Replace if cracked, broken, or missing to restore fit.

Gas supply tube kit for ranges. Replace if you notice gas leaks, damaged tubing, or during range installation. Verify fit with your model number.

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

Burner won't spark or light? This range top burner igniter creates the spark to ignite gas burners. Easy 15-minute DIY fix for cracked igniters.

A direct-replacement manifold pipe that routes gas from the valve assembly to the burners, restoring proper fuel delivery for safe, consistent ignition and cooking performance. What it does

• Channels gas from the control valve to individual burners so they can ignite.
• Helps maintain steady burner flames for even heating.
• Failsafe symptoms: burners not lighting, weak/uneven flames, or persistent gas odor near the range.
• Works with the range's valve and burner assembly to support normal operation.

• One manifold pipe

• Turn off the gas supply and electrical power before starting work.
• Use appropriate fittings and thread sealant rated for gas; tighten to manufacturer torque specs.
• After installation, check all connections for leaks with a soap solution or a gas leak detector.

Fixes burner that won't ignite or adjust properly. This valve controls gas flow to restore flame control from low to high heat for safe cooking.

Fixes burner that won't light or clicks but doesn't ignite. This valve controls gas flow to restore reliable ignition and heat control on your range.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.

If your oven won't heat or igniter glows but gas won't light, the igniter is likely weak. This is a common DIY repair taking 15-30 minutes.

Oven won't heat or takes too long to preheat? A weak or failed igniter is the most common cause. Easy DIY repair, typically completed in under 15 minutes.

Broil burner tube routes gas to your range's broil element. Replace if tube is rusted, cracked, or damaged to restore proper gas flow and broiling function.

Connects the gas supply line to your range's broil burner. Replace this fitting if it's cracked, corroded, stripped, or causing gas connection issues.

Gas burner orifice for your range. Installs in the burner assembly to regulate gas flow. Replace if worn, damaged, or causing uneven flames.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Brass orifice spud that controls gas flow to the broiler burner in your range. Replace if damaged, corroded, or when converting between natural gas and LP.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Converting your range from natural gas to propane? This LP orifice kit provides the jets needed to safely switch fuel types on your gas range.
