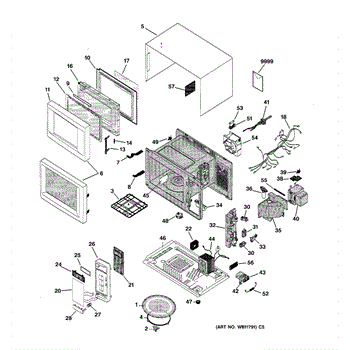

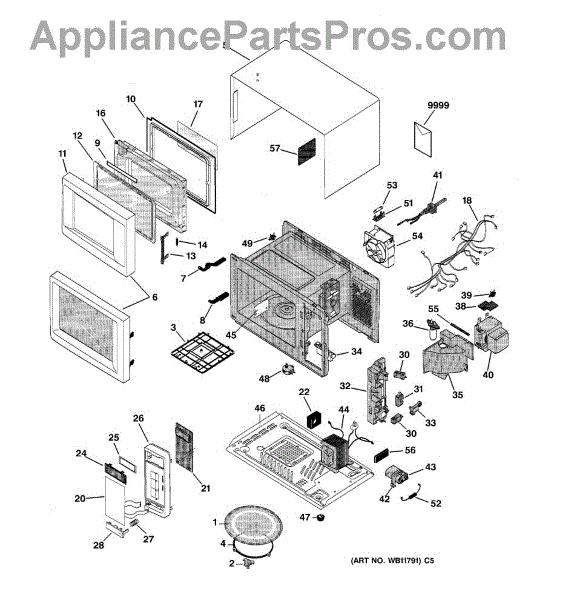

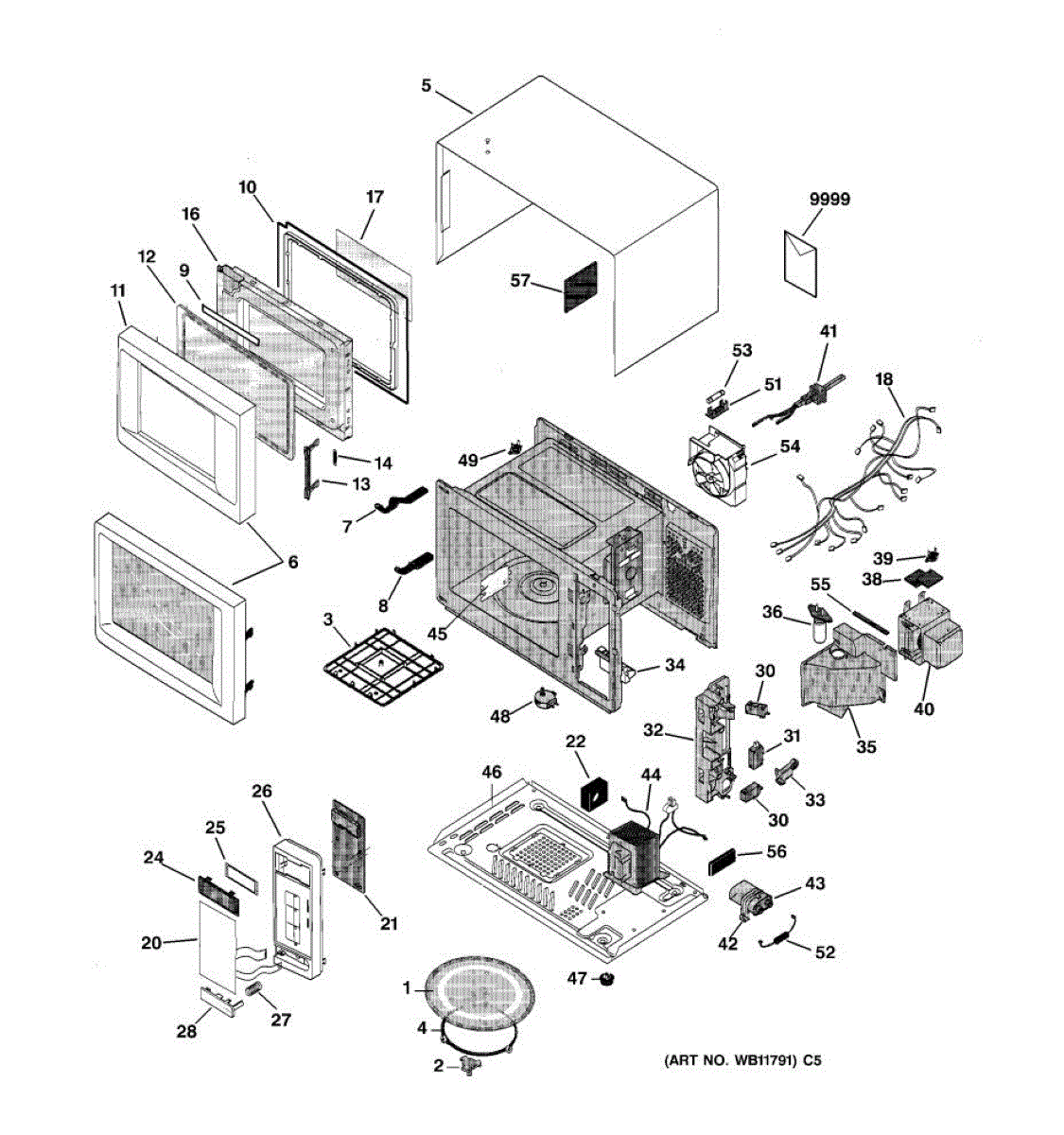

Parts for Ge JES1131GB01: 01 - Section1 Parts

Glass cooking tray for microwave ovens. Sits on turntable support to rotate food during cooking. Replace if cracked, chipped, broken, or missing.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

Color: brown. Measures about 9 inches in diameter.

This wire harness connects control components to deliver power and signals where needed, restoring reliable electrical connections and resolving issues caused by damaged or worn wiring. Use it to replace a faulty harness and re-establish proper appliance function. What it does:

• Routes power and signal circuits between the control board and associated components
• Restores lost or intermittent electrical connections caused by frayed or broken wires
• Helps address symptoms such as no power to controls, intermittent operation, or failure of related functions
• Maintains factory wiring layout and connector fit for correct component interfacing

• Disconnect power to the appliance before attempting any service
• Match connector shapes and wire colors to confirm correct fit before final installation
• Replace only with the exact harness to avoid mismatched connectors or wiring

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Interior door lever mechanism that connects the push button to the door latch assembly. Replace if cracked, broken, or no longer engaging properly.

Replacement air duct cover for your microwave. This plastic cover protects the internal air circulation system. Order a new one if cracked or broken.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

Microwave not heating but runs? Replace the magnetron to restore cooking power. Intermediate DIY repair taking 1-2 hours with proper safety steps.

Replace a damaged, frayed, or missing microwave power cord. This electrical cord connects your microwave to the wall outlet, delivering power to the unit.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
