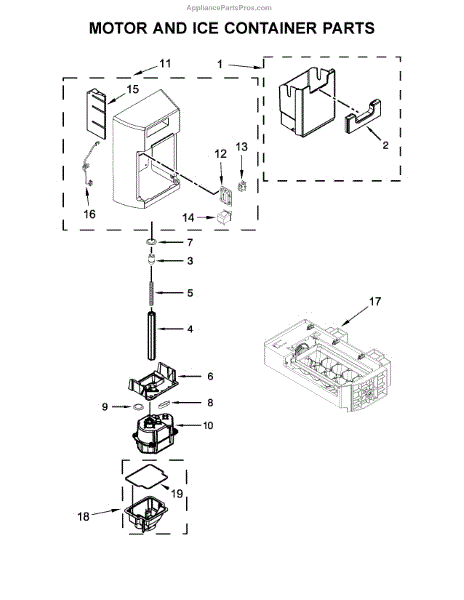

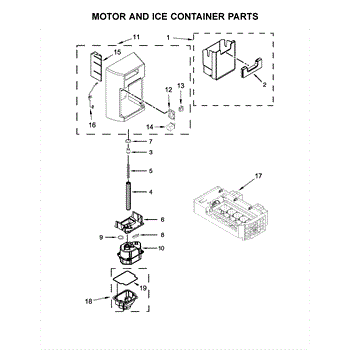

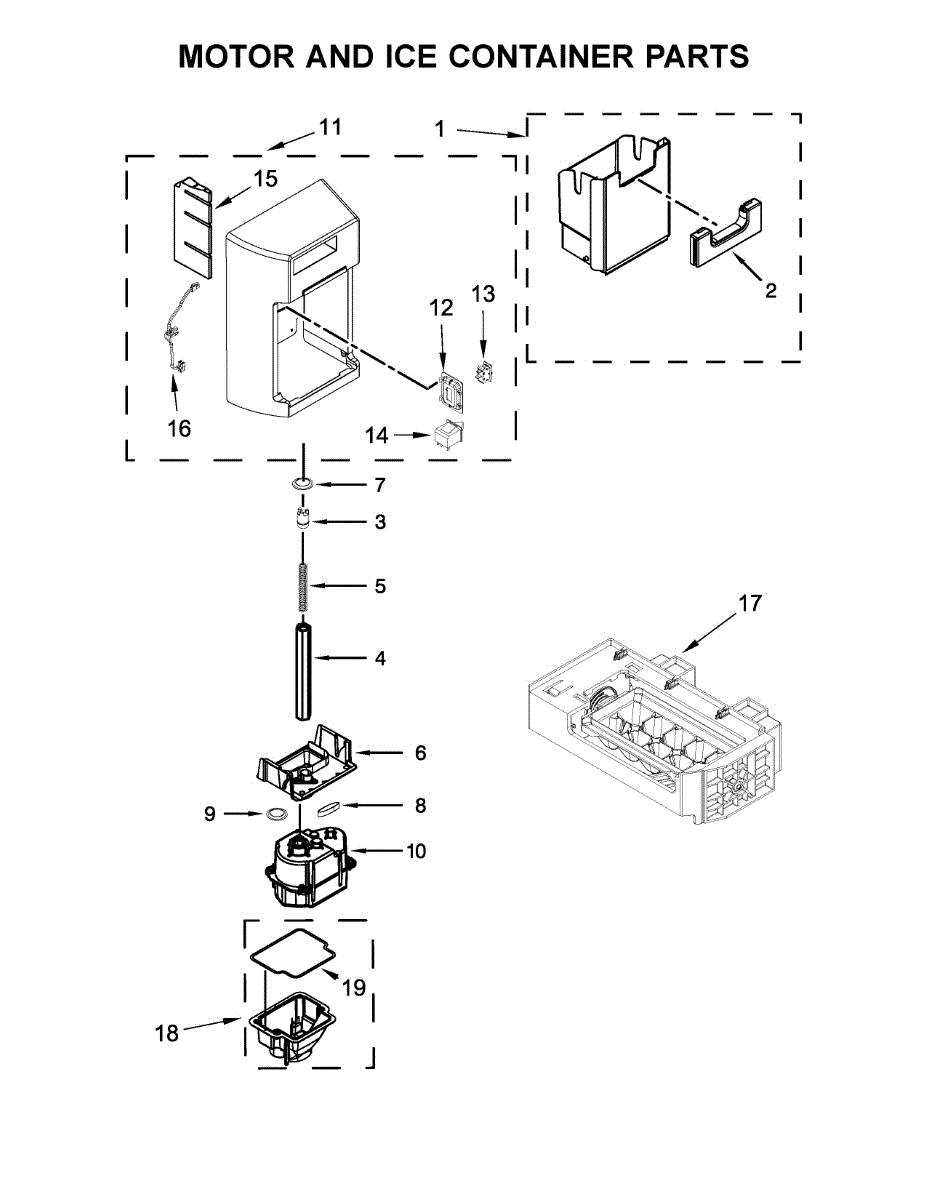

Parts for Kitchenaid KRSC503EBS00: Motor And Ice Container Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing

Stores ice cubes made by your refrigerator's ice maker. Replace this bin if it's cracked, broken, or missing to restore secure ice storage.

Fix ice not dispensing or auger not turning issues. This coupler connects the motor to the ice bin auger. DIY-friendly repair, about 20 minutes.

Ice won't dispense but you hear the door open? This hex drive shaft connects the motor to the auger. Simple 30-minute fix restores ice dispensing.

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures the removable ice chute opening above the storage bin in side-by-side refrigerators. Replace if bracket is cracked, broken, or worn from use.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix frost buildup, condensation, or drips around your ice dispenser. This gasket seals the chute to keep warm air out. Easy DIY install with video guide.

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

Ice won't dispense when you press the button? This auger motor powers the mechanism that moves ice from bin to chute. Moderate DIY repair with video guide.

Replace your refrigerator's cracked, dented, or faded front cover panel. This outer cabinet panel restores appearance and protects internal components.

This replacement mounting plate secures internal components and restores proper alignment so panels and assemblies sit correctly. It's a direct-fit OEM plate used where a stable mounting surface is required. What it does

• Secures and supports internal components to prevent shifting or vibration.
• Restores proper alignment for panels or assemblies that rely on the plate for fit.
• Helps eliminate noises or rattling caused by a loose or damaged plate.
• Maintains the original mounting points for fastener reattachment.

• Disconnect power to the appliance before starting any repair.
• Keep track of fasteners and mounting hardware; reuse original screws unless damaged.
• Use basic hand tools; avoid over-tightening fasteners which can strip threads or warp the plate.

Ice maker not harvesting or making ice? This rocker switch controls ice maker operation. Common fix when ice production stops despite good water flow.

Ice maker not working or won't dispense? This ice bin safety switch detects when the bin is in place to activate your ice maker. Easy DIY fix.

Fix electrical connection issues in your refrigerator with this wire jumper. Restores power or signal continuity between connector pins. Simple installation.

Ice maker won't dump cubes or stopped making ice? This ice maker assembly fixes failed harvest cycles and frozen trays. DIY install in 10 minutes with 6 screws.

Replace this refrigerator bracket that secures internal components. Needed when the original bracket is cracked, broken, or missing during repairs.

Replace your refrigerator door gasket to restore a tight seal and maintain proper temperature control. Fixes air leaks and prevents energy waste. Verify fit with your model number before ordering.
