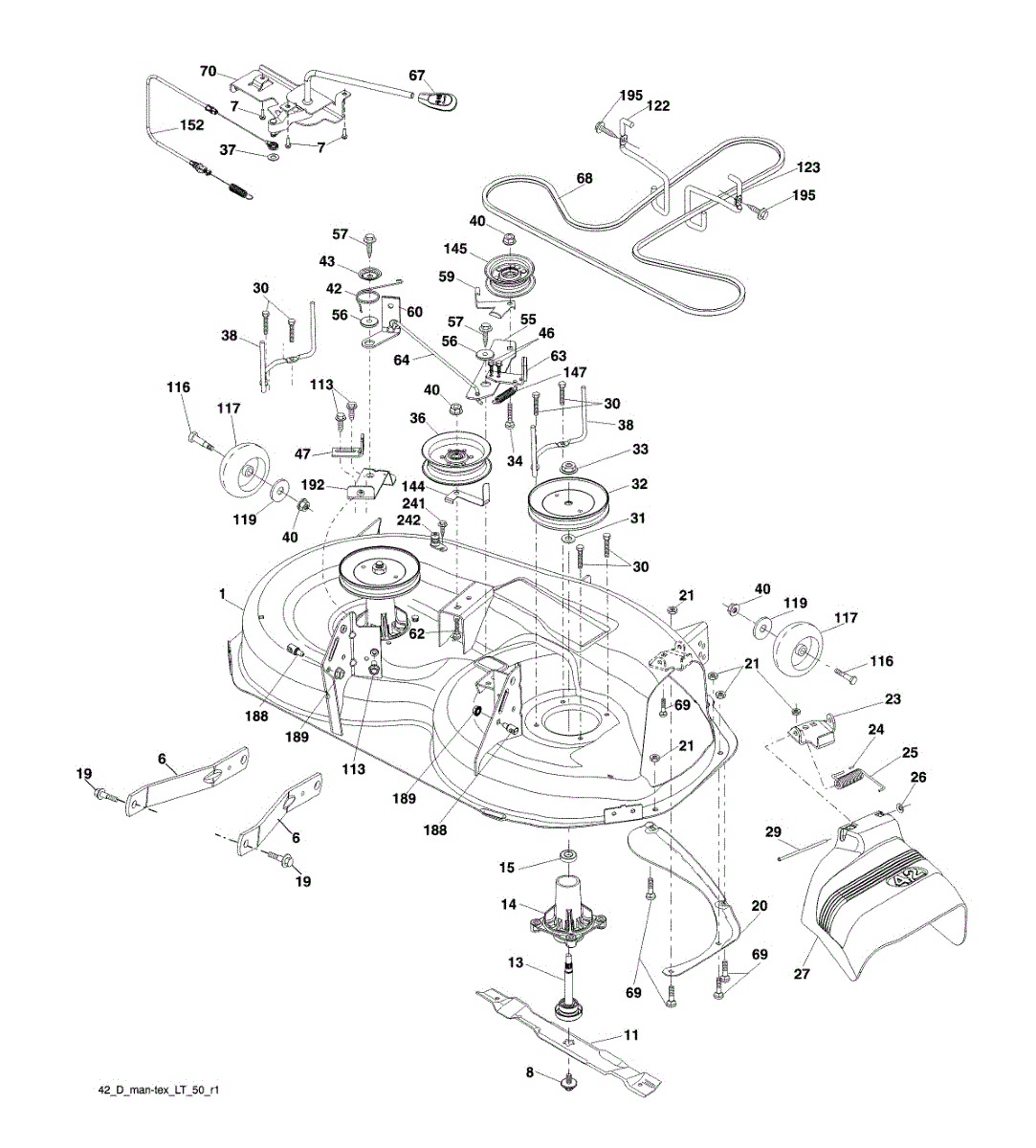

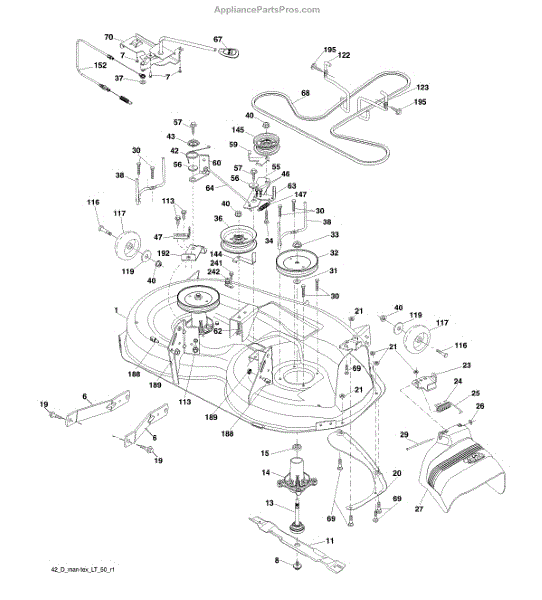

Parts for Ariens 96046005401: Mower Deck Parts

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Replacement suspension arm for lawn tractors and riding mowers. Installs to improve ride comfort. Replace if cracked, broken, or worn out.

Secures the mower blade to the spindle on riding mowers and tractors. Replace if bolt is stripped, washer is damaged, or hardware is missing.

Replace your worn, bent, or dull riding mower blade. This 21-inch high lift blade installs on the deck to cut grass and improve bagging performance.

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Shoulder bolt that attaches the suspension arm to the wheel bracket on riding mowers and tractors. Replace if bolt is stripped, worn, or missing.

Vortex baffle for riding mower deck. Replaces cracked, broken, or missing baffle that directs airflow under the mower deck for optimal grass cutting.

Deflector bracket for riding mowers and lawn tractors. Mounts the discharge deflector to the mower deck. Replace if bent, cracked, or broken.

Torsion deflection spring for lawn tractors and riding mowers. Replaces worn, broken, or missing springs in the drive or control assembly.

Deflector shield that directs grass clippings downward from the mower deck. Replace if cracked, broken, or missing to prevent debris projection.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

Mandrel spacer washer for riding mowers and lawn tractors. Installs between drive pulleys to maintain proper alignment and spacing. Replace if worn or missing.

Metal mandrel pulley that mounts to the mower deck spindle and turns the cutting blades via belt drive. Replace if dented, warped, or damaged.

Replace a loose or missing flange nut that secures mower components. This top lock nut provides secure fastening for riding mower and tractor assemblies.

Idler pulley for riding mowers and tractors. Maintains proper belt tension for drive system. Replace if pulley is cracked, worn, or spinning rough.

Replace your lawn tractor's belt keeper to secure the drive belt and ensure safe operation. Install when damaged or worn to prevent belt slippage. Verify fit with your model number before ordering.

Torsion spring for lawn tractor brake system. Installs on brake assembly to provide tension. Replace if broken, stretched, or missing for proper brake operation.

Secures and stabilizes the torsion spring on your riding mower. Replace if cracked, broken, or missing to properly retain the spring assembly.

Stabilizes idler arm placement for proper belt tension on lawn tractors. Replace if bracket is bent, cracked, or causing belt misalignment. Verify fit.

Spacer retainer for lawn tractors and riding mowers. Maintains proper spacing between components. Replace if cracked, broken, or missing during maintenance.

Hex head screw for lawn tractors, riding mowers, and snowblowers. Replaces lost, stripped, or corroded fasteners in various assembly locations.

This is a genuine brake arm that is made to be used with select riding lawn mowers. The brake is designed to stop the mower blades by pressing against the pulley when the brake lever has been engaged. When the brake is engaged, the blades will not rotate. This brake arm is a metal bracket that is made of durable materials, but over time it will become worn and could start slipping or even prevent the brake from working at all. If this happens, the mower will not be able to operate until it is fixed.The replacement process is not difficult, but it is one that should be done with care. To start, disconnect the power and allow the machine to cool. Always wear gloves when replacing engine parts and other components, as well. This OEM brake arm is manufactured by Husqvarna and meets exact standards for original replacement parts. It is sold as an individual part and does not include any necessary hardware. That will require an additional purchase if a replacement is needed. This brake arm is compatible with machines from Husqvarna, as well as those from Poulan.

The replacement mower arm brake pad is sourced directly from the manufacturer. It is used with lawn tractors and is made from metal with an attached brake pad. The arm connects to the idler arm, which helps the driver of the lawn tractor to control the machine's speed. It is an important part of the machine that needs to be in good condition. However, this part could start to wear out over time, just as would happen with brake pads for other vehicles. This could be due to the normal wear and tear associated with using the tractor, or it could be due to corrosion or breaking. Owners will likely require a wrench when replacing the mower arm brake pad. This is a genuine OEM replacement mower arm brake pad, and it is sold individually. The part is for use specifically with certain makes and models of lawn tractor. It will work with more than 150 different machines. Compatible brands include Husqvarna, Craftsman, Poulan, and Ariens.

Brake linkage assembly for riding mowers and lawn tractors. Replaces worn, bent, or broken brake linkage brackets. Essential for proper brake operation.

Deck drive belt rotates mower blades on riding mowers and lawn tractors. Replace when worn, cracked, or slipping. Verify fit with your model number.

This part is a clutch assembly that is used for riding lawnmowers and lawn tractors. A clutch is a safety device that stops the blade from spinning while the engine is still running. This part is manufactured out of a heavy-duty metal material.A new clutch assembly may be needed if the lawn tractor or riding lawn mower is stalling. Over time, the clutch may become worn or damaged and need to be replaced as part of normal wear and tear on the product. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This clutch assembly is a genuine Husqvarna part. It is sold individually. This particular clutch assembly is compatible with riding lawnmowers and lawn tractors that are manufactured by the Poulan, Husqvarna, and Jonsered brands.

Replacement bolt for lawn tractors, riding mowers, and walk-behind equipment. Secures components together. Replace if missing, stripped, or damaged.

Gauge wheel that mounts to the mower deck to control cutting height. Replace if cracked, worn, or missing for proper deck leveling and support.

This left-hand engine belt keeper is designed to be a replacement for riding mowers and lawn tractors. The purpose of the belt keeper is to stabilize the belt. This will help to reduce the amount of friction on the belt. If this part is damaged or missing, it could cause problems with the belt including premature wear and tear. In some cases, the mower will not function properly.The part is made from durable metal, but there is still a chance that it could break or become worn and corroded over time. If the owner notices any signs of damage, the belt keeper should be replaced right away to ensure the mower continues to function properly.The engine belt keeper can be used for many models of machines from Husqvarna, Poulan, Weed Eater, and Jonsered. The high-quality metal replacement piece is sold individually. It is a genuine OEM part that has been sourced directly from the manufacturer.

Belt keeper guides tractor belts between pulleys to transfer power. Replace if broken, damaged, or belt slips off track. Confirm fit with model number.

Flat idler pulley for riding mowers and lawn tractors. Works with the belt to transfer power from engine to drive system. Replace if cracked or worn.

Return spring for lawn tractors and riding mowers. Replaces broken, stretched, or missing springs in control linkage systems. Essential hardware part.

This is a manual cable clutch for use on many different kinds of lawn tractors and riding mowers. It is the part that connects the transmission lever to the idler arm on the deck of the mower. The sole purpose of this component is to engage and then to disengage the blades. It is for a machine with a manual clutch and includes the full assembly. This means it features the spring hook, connector clips with cable sheath, and the cabling itself. It is relatively simple to replace this item and requires an appropriately sized socket set. Made of rubber, metal, and wire, it is a genuine OEM part that ships individually as an assembly. It will work with brands like Poulan, Jonsered, Weed Eater, and Husqvarna, among others.

Threaded stud fastener for riding mowers and lawn tractors. Secures components together with threaded ends. Replace if stripped, broken, or missing.

Hex screw for lawn tractors and outdoor power equipment. Secures housings, gas tanks, and various components. Replace if missing, stripped, or damaged.

Deck washout port for riding mowers and tractors. Attaches to mower deck for easy cleaning with garden hose. Replace if cracked, broken, or missing.
