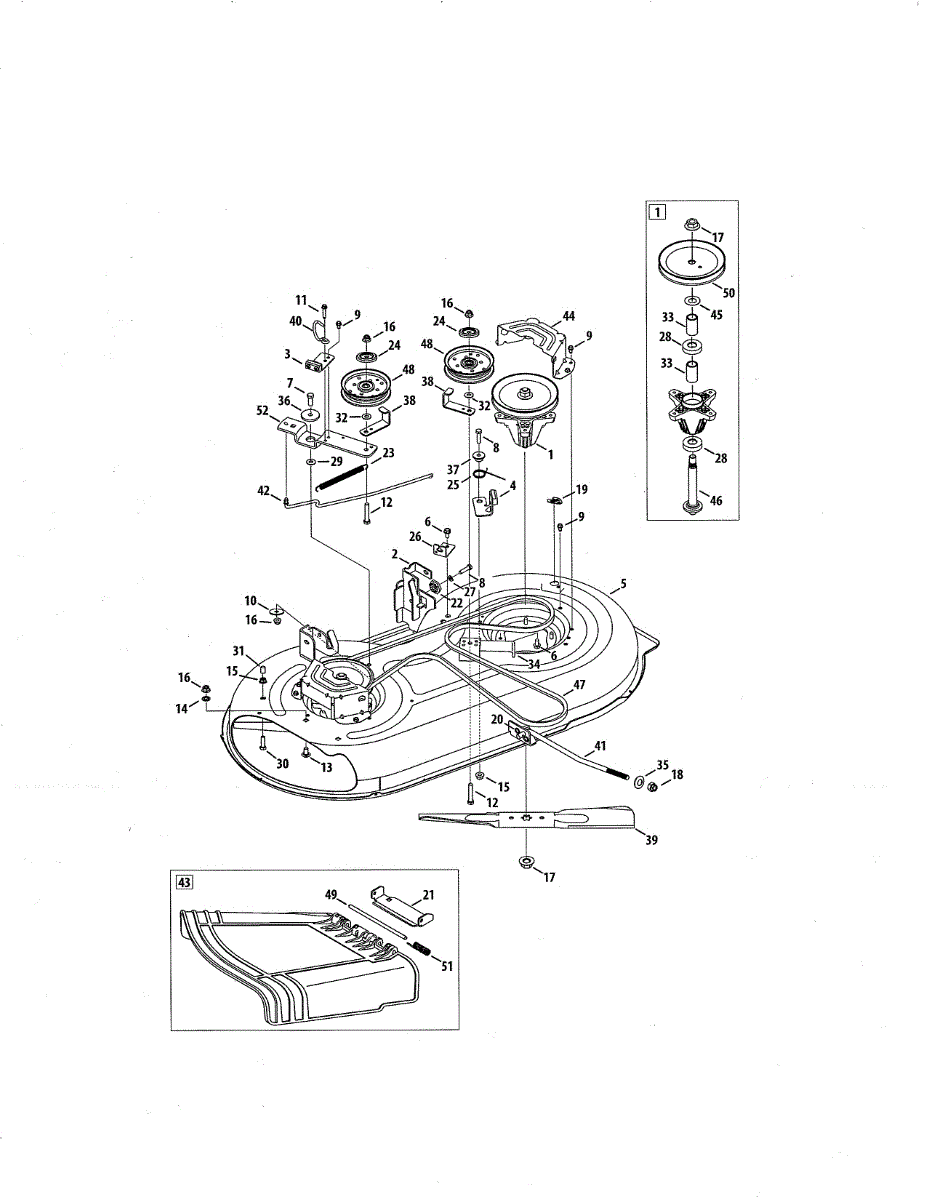

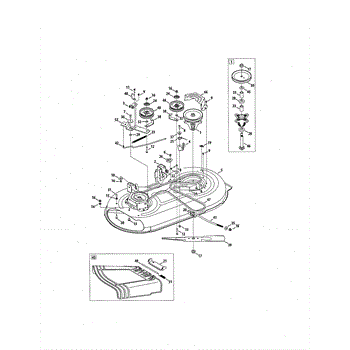

Parts for Craftsman 247288820: Mower Deck / Spindle Pulley Parts

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

Deck brake assembly stops mower blades safely when disengaged. Fixes blades that won't stop spinning or take too long to halt. Moderate DIY repair.

Replace a faulty main wiring harness if your lawn tractor won't start, has electrical issues, or shows intermittent power loss. Direct fit part.

Deck won't stop spinning after disengaging blades? This lawn tractor deck brake assembly stops mower deck rotation for safe operation and blade changes.

Replace your cracked or damaged lawn tractor deck housing assembly. This structural component forms the main body of the mower deck where blades mount.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Holds the discharge chute securely in place on your lawn tractor deck. Replace if bracket is cracked, broken, bent, or missing to properly mount the chute.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

This extension spring attaches to the axle support bracket and the drive belt idler pulley on many types of lawn and garden equipment. It creates additional tension to the drive belt idler pulley. Sometimes the extension spring can be stretched out or may break, often caused through excess use. If this is the case, the spring will need to be replaced.If the spring is broken or no longer creates the appropriate amount of tension, replacement is required. It is an easy process that only requires a set of pliers. The pliers can be used to take the old spring off of the yard equipment before attaching the new extension spring. Make sure the equipment is on a stable surface and powered off when working with it. Remove the spark plug wire to prevent accidents.This extension spring is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual component. The spring is made to be used with lawnmowers, lawn tractors, and tillers created by MasterCut, Yard-Man, Bolens, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Cub Cadet, and Craftsman.

This cap pulley is a genuine MTD part that is manufactured for compatibility with lawn tractors. On a lawn tractor, the cap pulley, or pulley cap, along with the idler arm and idler arm spring, create tension on the deck drive belt which allows it to operate.It is normal for this cap to become worn over time. It is a relatively easy repair, but the deck of the mower must be removed. One of the biggest signs of a problem with the pulley is a squealing sound, although there may be no signs that it is wearing out until it breaks completely.This cap pulley is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is manufactured for compatibility with lawn tractors made by Bolens, Craftsman, Columbia, Huskee, Husky, Mastercut, MTD Gold, Murray, Yard Machines, and Yard-Man.

Torsion spring for lawn tractors. Attaches to components to exert force for proper operation. Replace if broken, cracked, or missing.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Fix a deck that won't lift or adjust properly. This pivot cup lets the lift arm move freely while staying secured to your mower deck. Easy DIY fix.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

Belt guard for 46-inch lawn tractors and riding mowers. Replace if cracked, damaged, or missing to protect belts and ensure safe operation. Verify fit.

This is a two in one blade that can be used as a lift blade to bag clippings, as well as a side discharge for clippings. It is time to consider replacing this blade when there are uneven or even missed areas of cutting or bagging when using the mower. It may be that the blade has been dulled by prolonged use or bent or damaged by striking rocks and dense roots. Either way, replacing the blade is a relatively easy repair to make and should be considered a part of routine maintenance. The repair requires the use of the proper tools, including wrenches and sockets. An appropriate flange bolt may need to be purchased as well if the original has been damaged or worn. "This OEM replacement cutting blade works with more than 150 types of tractors and mowers made by Craftsman, Yard Machines, Yard-Man, MTD, and Troy Bilt. This ships singly and is a high-quality blade made of durable materials.

Belt keeper rod for lawn tractors. Holds drive belt in proper position to prevent slippage and maintain tension. Replace if bent or damaged. Verify fit with your model number before ordering.

Front deck lift rod for lawn tractors and riding mowers. Connects mower deck to lift mechanism. Replace if bent, damaged, or corroded for proper operation.

Replace your lawn tractor's deck brake rod if mowing deck won't stop spinning or brake feels loose. Direct-fit part restores safe deck engagement control.

Replace your cracked or broken lawn tractor discharge chute assembly. Mounts to the mower deck to direct grass clippings away from the cutting area.

Replace your lawn tractor's 42-inch deck belt cover to protect the drive belt from debris and damage. Fits select front-engine models. Verify fit.

Flat washer for lawn tractors and garden equipment. Distributes load under bolt heads and prevents surface damage. Replace if worn or missing.

Fix wobbling mower blades with this spindle shaft. Common repair for uneven cuts and blade vibration. Moderate DIY with socket set and hammer.

A V-belt is used on riding lawn mowers and yard tractors to turn the blades and the accessories of these power tools. The engine pulley, which supplies power, is connected to the cutting deck pulley, which turns the mower blades, with a V-belt. Over time the V-belt, which is made of rubber, may stretch, calling for the tension on the belt to be adjusted. Eventually the belt will wear to the point that it no longer turns the cutting deck pulley fast enough for the blades to cut grass. Sometimes the belt will crack with dry rot and break. In any of these instances, the solution is to replace the V-belt. In order to replace the V-belt, the cutting deck must be lowered completely. A worn belt will likely slip off the cutting pulley with little resistance. In case the belt is missing, the user will find a diagram with the proper V-belt routing on top of the cutting deck. When replacing the V-belt, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be an exact replacement for the original. This V-belt is compatible with riding mowers from MTD, Murray, Huskee, Troy-Bilt, Yard Machines, and Yard Man.

Chute hinge pin for lawn tractors and riding mowers. Secures the discharge chute hinge assembly. Replace if bent, broken, or missing to restore proper fit.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

Fixes belt slipping or falling off on your riding mower. This idler pivot bracket maintains proper belt tension. Moderate DIY difficulty replacement.

Replace cracked or deteriorated vent hose on your lawn tractor or riding mower. This 3/16" ID hose connects fuel tank ventilation components.
