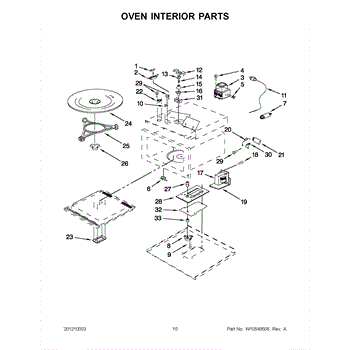

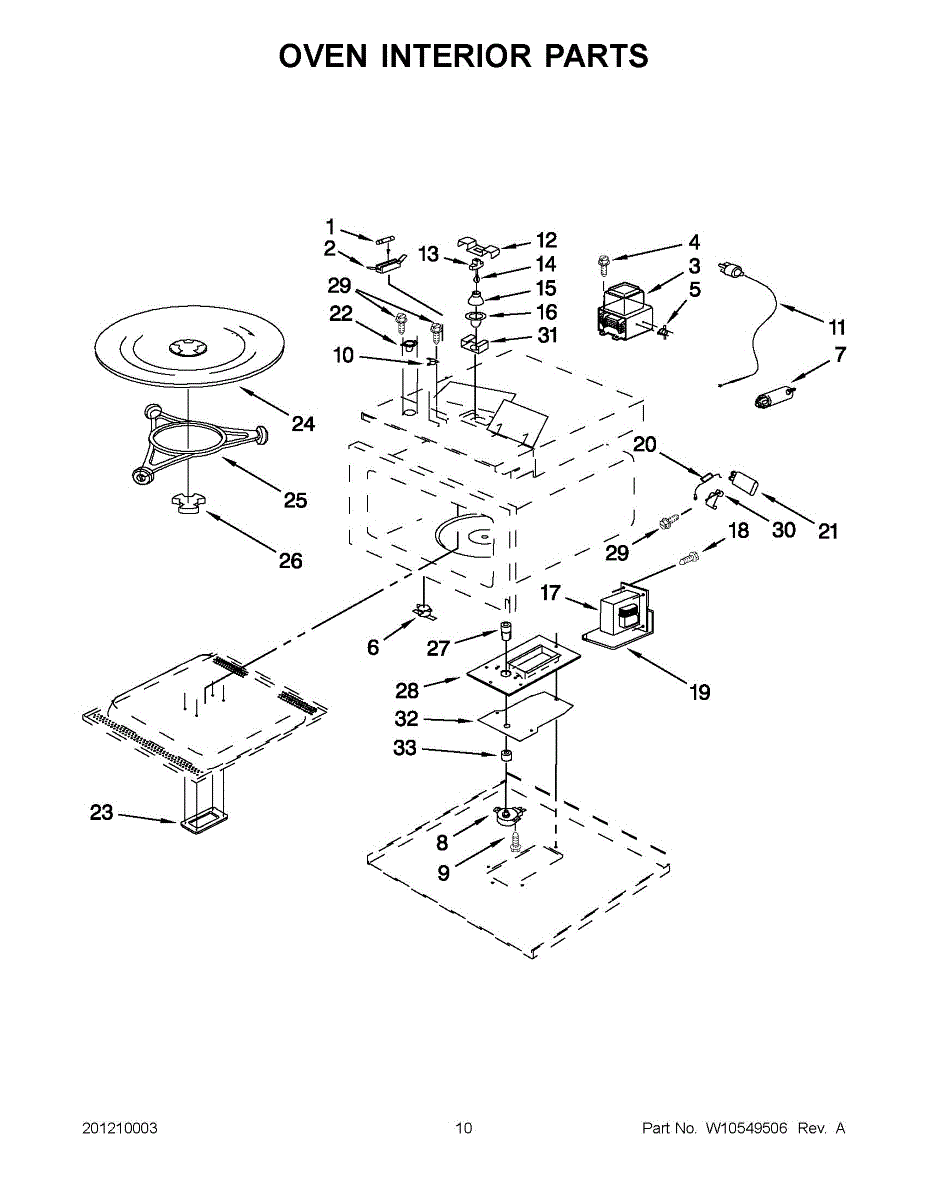

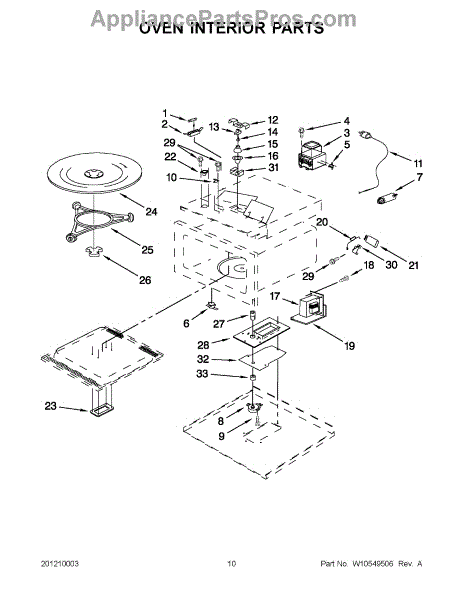

Parts for Kitchenaid KBMS1454BWH0: 05 - Oven Interior Parts

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

Microwave not heating but runs? The magnetron generates microwave energy for cooking. Intermediate repair requiring discharge of capacitor first.

This thermostat retainer secures the refrigerator thermostat or temperature sensor in place to ensure accurate temperature sensing and stable operation. It replaces a worn or broken mounting clip to restore proper sensor positioning. What it does:

• Holds the thermostat/temperature sensor firmly against the evaporator or designated mounting point
• Prevents sensor movement that can cause erratic temperature readings or cooling issues
• Maintains correct sensor alignment for reliable refrigerator temperature control
• Helps reduce vibration and wear on the thermostat assembly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing interior panels or trim; keep fasteners organized
• Handle the thermostat and sensor carefully to avoid damaging the sensing element or wiring

Microwave turntable won't rotate or stops under load? This turntable motor restores even heating. Accessed from the bottom with basic tools.

If your microwave overheats or shuts off unexpectedly, the high-limit thermostat may have failed. This safety cutoff prevents damage from excess heat.

Secures and powers the G4-base bulb for reliable interior lighting. Replace if bulb flickers, won't stay seated, or socket is damaged. Confirm fit.

Halogen light bulb illuminates your microwave or oven cavity. Replace when light dims or burns out after extended use. Confirm fit with model number.

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This replacement screw secures appliance components and restores proper fit where the original fastener is missing or stripped. A plain, direct replacement when a standard appliance mounting screw is needed. What it does:

• Secures trim, panels, brackets, or small components to prevent rattling or loss of alignment
• Helps restore proper contact between joined parts for safe operation
• Common fix when fasteners are missing, loose, or worn
• Small size fits in confined appliance mounting points

• Verify head type and length match the original before installing
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Use appropriate screwdriver or bit for the head style to prevent cam-out
• Disconnect power or follow appliance safety procedures when working on electrical areas

Microwave not heating or making loud humming noise? The diode converts AC to DC power for the magnetron. Moderate difficulty repair, 1-2 hours.

Microwave not heating? This high-voltage capacitor delivers the power pulse your magnetron needs to generate heat. Restores normal cooking performance.

Fix uneven cooking or incorrect oven temperatures with this temperature sensor. Detects cavity temperature for accurate bake cycles. Easy DIY repair.

Fix sparking or melted plastic in your microwave. This waveguide cover protects the magnetron opening. Easy DIY replacement—just pry off and snap in.

Replace your microwave's broken or cracked glass turntable tray. This circular rotating plate sits on the cavity floor to hold food during cooking.

Support ring sits beneath the glass turntable and allows smooth rotation during cooking. Replace if cracked, worn, or causing tray wobble or binding.

Microwave turntable not rotating or making grinding noise? This coupler connects the motor to the tray for smooth rotation. Simple DIY fix in minutes.

Fix a microwave turntable that won't spin with this drive shaft. Connects the motor to the coupler and glass tray. DIY repair in under 30 minutes.

This motor cover protects and secures the appliance motor assembly, keeping wiring and components shielded from debris and wear. It restores the motor's protective housing for safer, quieter operation. What it does:

• Shields the motor and wiring from lint, dust, and foreign objects
• Helps maintain proper airflow and component alignment around the motor
• Replaces cracked, broken, or missing housings that leave the motor exposed
• Can reduce rattle or rubbing caused by a damaged motor cover

• Disconnect power to the appliance before beginning any work
• Remove access panels or panels obstructing the motor to reach the mounting location
• Align the cover over the motor and secure with the original fasteners
• Inspect wiring and nearby components while installing; ensure no wires are pinched or contacting moving parts
