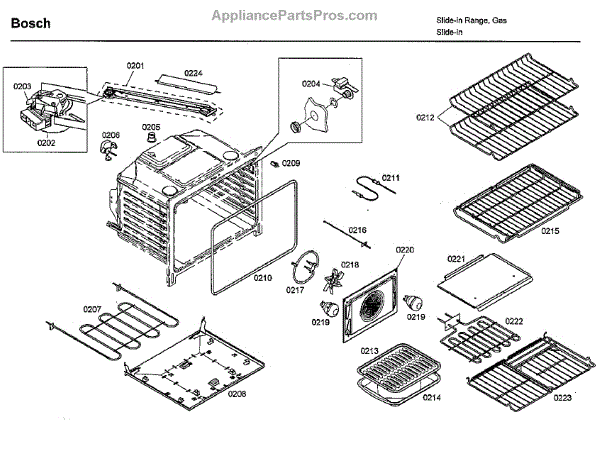

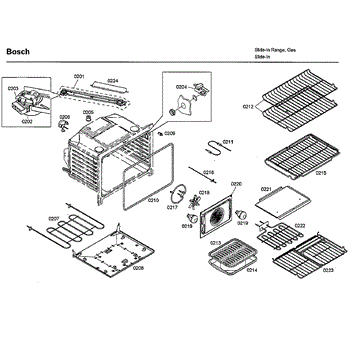

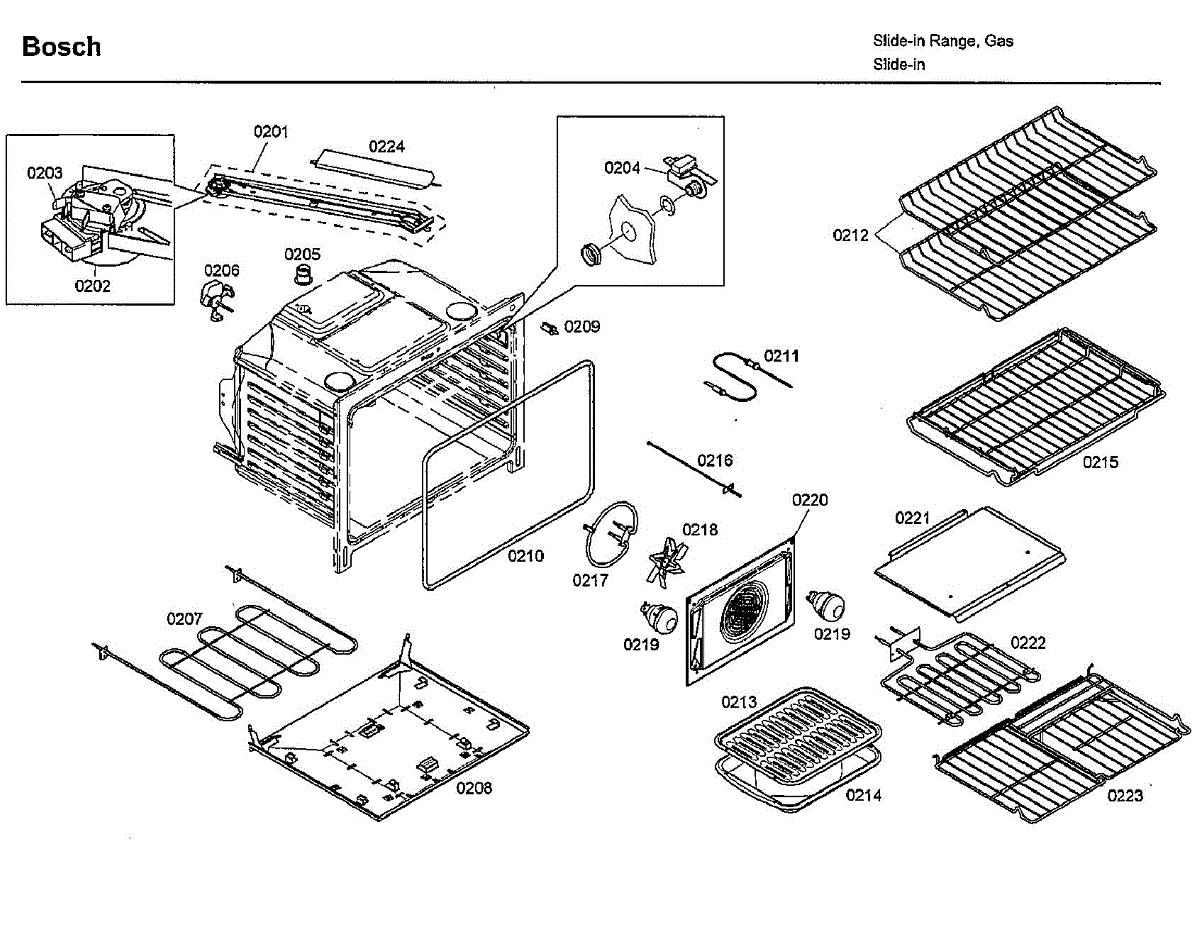

Parts for Bosch HDI7282U/02: Oven Parts

Fix an oven door stuck closed after a cleaning cycle or error code 41. This door latch assembly restores normal lock/unlock operation on gas ranges.

Fix intermittent power or component failure with this range socket electrical connector. Restores secure wiring connections in electric and gas ranges.

Catalyzer component for electric ovens and ranges. Installs inside the oven cavity. Order a replacement if your catalyzer is cracked, damaged, or missing.

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

Replace your worn oven door gasket to restore a tight seal, prevent heat loss, and maintain consistent baking temperatures. Confirm fit with your model number.

This dishwasher water sensor monitors wash-water conditions so the control can adjust cycle time, rinses, and heating for consistent performance. Replace a failed sensor to restore reliable cleaning results and proper automatic cycle adjustments. What it does

• Detects water conditions during the wash cycle and reports to the control
• Helps the dishwasher optimize cycle length, rinses, and energy use
• Common symptoms: unusually long or short cycles, inconsistent cleaning, or sensor-related error messages
• Trigger erratic cycle behavior when the sensor is faulty or contaminated

• One sensor assembly

• Disconnect power and turn off water before servicing
• Access is typically from the underside; place a towel or pan to catch residual water
• Transfer/seat the seal properly if present; fully engage the locking tabs and reconnect the harness
• After installation, run a quick cycle and check for leaks and proper operation

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit

This wire shelf provides a stable, ventilated storage surface inside the refrigerator to organize food and improve airflow for even cooling. It replaces a damaged, bent or missing shelf to restore usable interior storage space. What it does:

• Replaces a bent, rusted or broken refrigerator wire shelf that no longer supports items safely
• Restores flat, secure storage for food containers, bottles and produce
• Helps maintain proper air circulation in the compartment for more consistent cooling
• Fits into existing shelf tracks or supports designed for factory wire shelves

• One replacement wire shelf

• Slide shelf into existing tracks/supports; no tools typically required for drop-in style shelves
• Handle carefully to avoid sharp wire ends; wear gloves if needed
• Only replace with the correct part number for secure fit and safe operation

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This heating element is the direct-replacement heater assembly that provides the heat source for compatible appliances, restoring proper heating so cycles reach the temperatures needed for effective drying or cleaning. What it does:

• Generates heat for the appliance's thermal system (air or water heating depending on model).
• Replaces a failed or damaged heater element to restore normal temperature rise.
• Common symptoms it may fix: no heat, weak/no drying or cleaning performance, or unusually long cycles.
• Works as part of the appliance's safety and temperature-control circuit (thermostats or sensors may also be involved).

• Always disconnect power (and water, if applicable) before replacing the element.
• Allow the appliance to cool fully and wear protective gloves; heating elements can have sharp edges.
• After installation, restore power and run a short test cycle to check for any error codes.

Restore even baking when your oven heats unevenly. This convection fan blade circulates hot air for consistent cooking. Moderate DIY install.

Restore oven visibility with this complete light assembly. Replace when bulb won't light, lens is cracked, or socket is damaged. Verify fit with your model.

Mounting hardware kit to secure range panels and components. Replace missing, stripped, or damaged fasteners to restore stable fit and eliminate rattling.

Oven light bulb illuminates the cavity for monitoring food without opening the door. Replace when burned out or flickering. Verify fit with your model.
