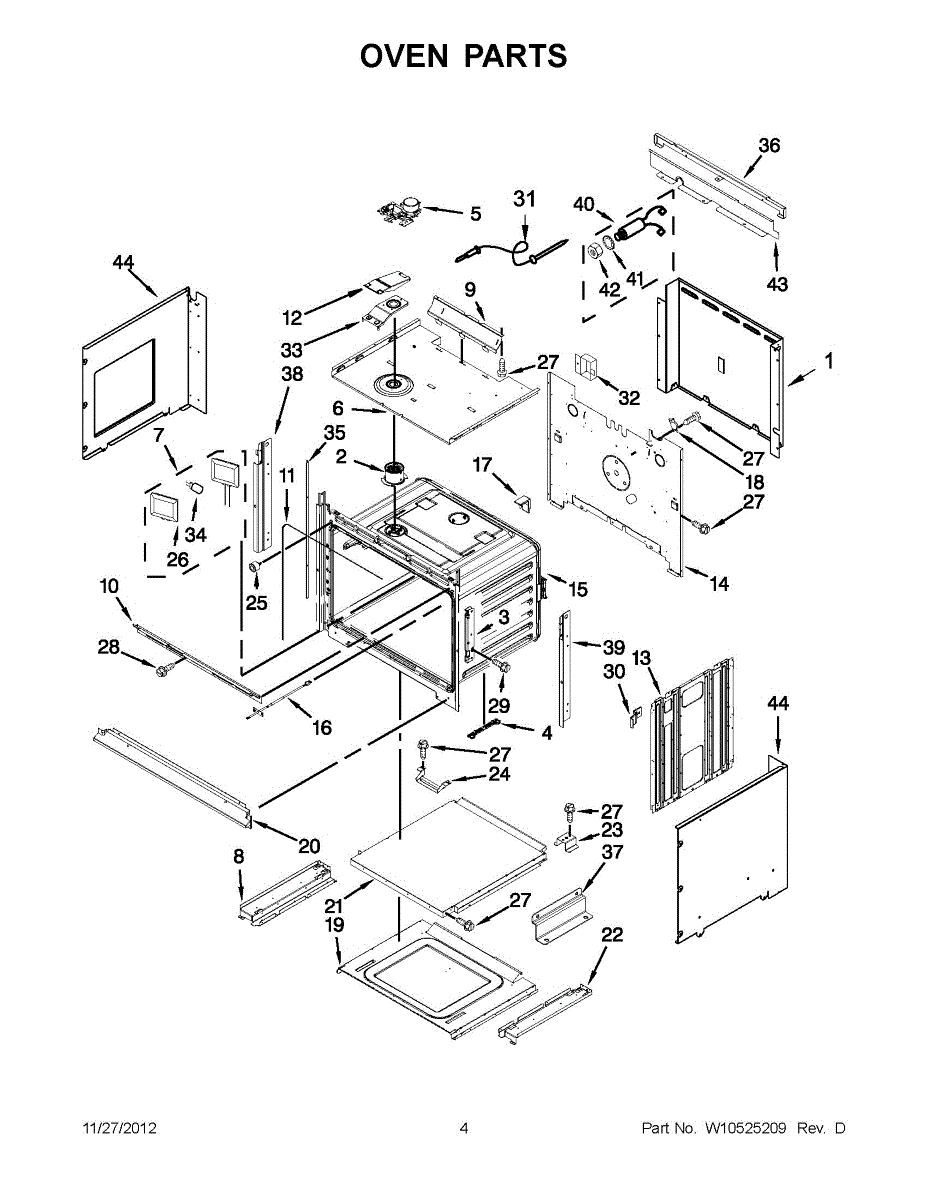

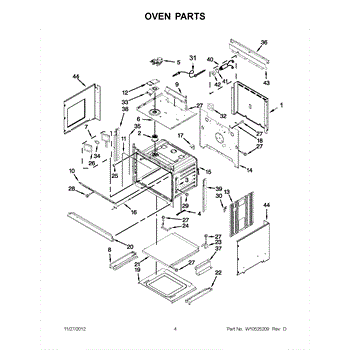

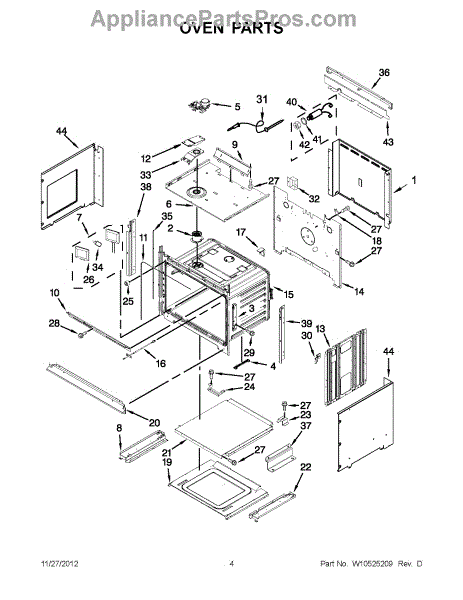

Parts for Kitchenaid KEMS309BSP00: 02 - Oven Parts

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Replacement spacer for ovens and microwaves. Maintains proper clearance and alignment between components. Order a new spacer if yours is missing or damaged.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

If your oven has excess moisture or uneven temperatures, the vent assembly may be damaged. This part channels heat and steam out of the cavity. Easy DIY fix.

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

Replacement bumper rail that cushions your oven door to reduce noise and prevent metal contact. Installs on door frame to restore smooth closing.

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Vent cover for wall ovens and built-in ovens. Installs on the exterior panel to protect the ventilation opening. Order a replacement if cracked or missing.

Replace a cracked, broken, or missing vent cover on your electric wall oven or microwave combo. Installs on the exterior to restore proper appearance.

Lower front vent for electric wall ovens. Channels hot air and moisture out of the oven cavity. Replace if cracked, damaged, or missing for proper airflow.

This chassis bottom duct is the lower access cover that protects internal components and channels airflow under the appliance cabinet. It helps keep wiring and parts shielded while allowing proper ventilation. What it does:

• Covers and protects the appliance chassis bottom area from dust, debris and accidental contact
• Directs airflow under the cabinet to support cooling/ventilation paths
• Prevents loose items from entering the chassis and interfering with components
• Can be replaced when cracked, warped, missing, or causing gaps that expose internals

• Intended for use as a direct-replacement exterior cover; verify fit before installation
• Power off and unplug the appliance before removing or installing the duct
• Remove any obstructing panels or fasteners to access the mounting points; retain hardware if reusing
• If damage extends to adjacent components, inspect internal wiring and mounts for service

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Screw for control panel vent.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

Interior light bulb illuminates your oven cavity for monitoring cooking progress. Replace when dim or burnt out. Verify fit with your model number.

Cabinet trim cover for wall ovens. Installs on sides to protect internal components and maintain a finished appearance. Replace if cracked or missing.

Replacement support bracket for microwave ovens. Installs inside the cavity to provide structural reinforcement. Order a new one if cracked or broken.

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.
